Запчасти Case IH DC515 (2-10) - GEARBOX ASSEMBLY, SWIVEL (09) - CHASSIS

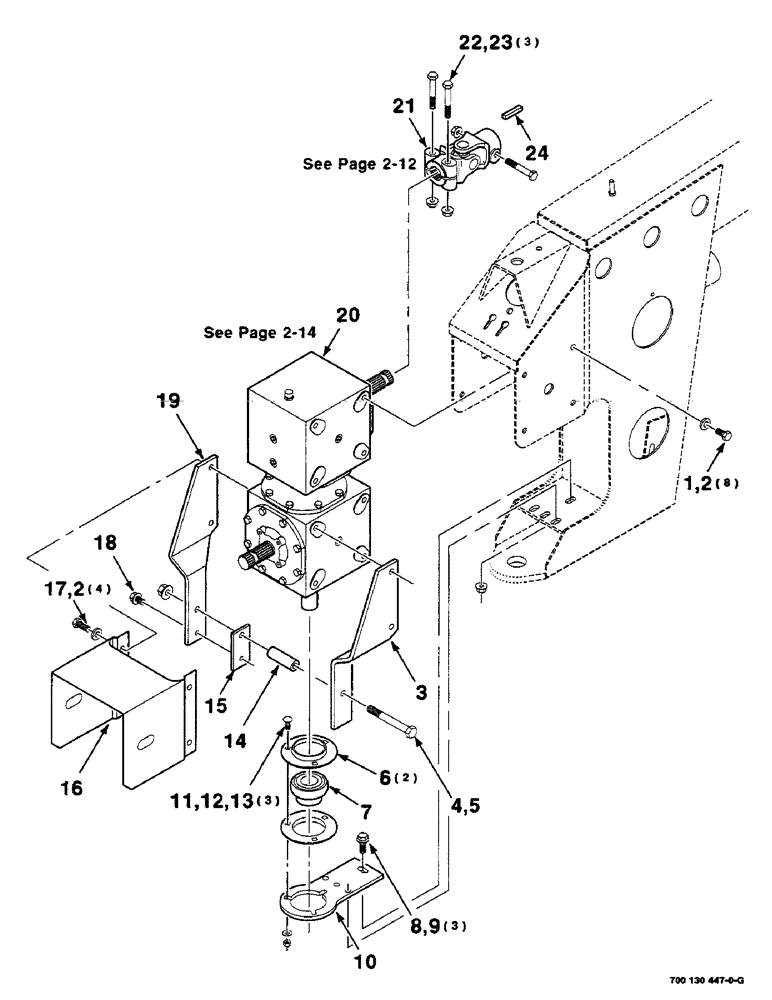

Схема запчастей Case IH DC515 - (2-10) - GEARBOX ASSEMBLY, SWIVEL (09) - CHASSIS
21
24
16
11
8
4
14
23
19
12
6
2
10
9
15
5
17
1
18
22
20
7
2
3
13

Артикул

Название

Примечание

Количество

1

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

2

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

12шт.

3

700130489

GUIDE

- left

1шт.

4

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

5

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

6

617863R1

FLANGED BEARING

- bearing

2шт.

7

611583R91

BALL BEARING

BEARING

1шт.

8

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

3шт.

9

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

3шт.

10

700130499

LARGE PLATE

PLATE - bearing

1шт.

11

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

12

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.

13

425-106

NUT,3/8"-16, Cl 5

3шт.

14

6117196

BUSHING

TUBE

1шт.

15

700130505

LARGE PLATE

PLATE - wear

1шт.

16

700130504

SHIELD

1шт.

17

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

18

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

1/2-13 X 3/4 HFSS

1шт.

19

700130490

GUIDE

- right

1шт.

20

700713871

GEARBOX ASSY

GEARBOX ASSEMBLY - double

1шт.

20

700713871R

REMAN-GEARBOX

Remanufactured Gearbox

1шт.

20

700713871C

CORE-GEARBOX

Return Number, Gearbox, double

1шт.

21

700713876

JOINT

U-JOINT ASSEMBLY

1шт.

22

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1/2-13 X 3-1/4 C

3шт.

23

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

3шт.

24

Q55

KEY,3/8" Sq x 2", Par

3/8 X 2 KEY

1шт.

Выбрано товаров: 26
