(8-14) - HYDRAULIC CONTROL VALVE ASSEMBLY, DELTA, 700715903 HYDRAULIC CONTROL VALVE ASSEMBLY COMPLETE

Запчасти Case IH DC515 (8-14) - HYDRAULIC CONTROL VALVE ASSEMBLY, DELTA, 700715903 HYDRAULIC CONTROL VALVE ASSEMBLY COMPLETE (08) - HYDRAULICS

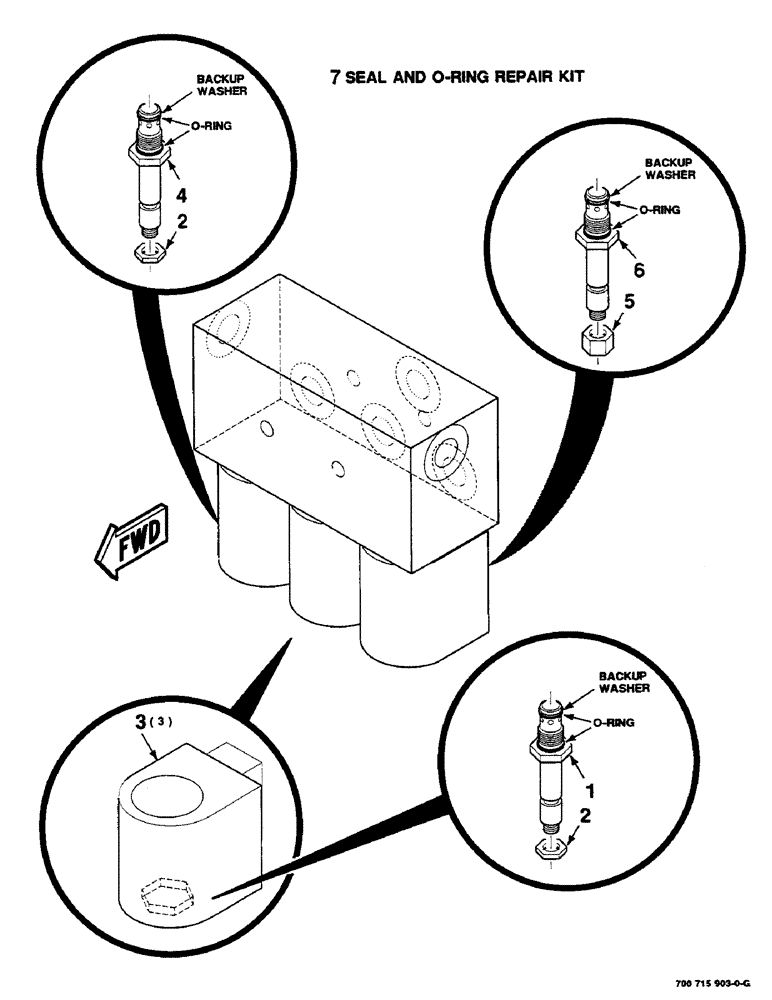

Схема запчастей Case IH DC515 - (8-14) - HYDRAULIC CONTROL VALVE ASSEMBLY, DELTA, 700715903 HYDRAULIC CONTROL VALVE ASSEMBLY COMPLETE (08) - HYDRAULICS
6
7
2
4
1
2
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700715903

VALVE

HYDRAULIC CONTROL VALVE COMPLETE

1шт.

1

700714893

SPOOL

VALVE

1шт.

2

700712821

NUT

HEX NUT

2шт.

3

700712921

COIL

- 12VDC DP encap

3шт.

4

700712822

CARTRIDGE

POPPET VALVE

1шт.

5

700712824

NUT

HEX NUT

1шт.

6

700715928

VALVE POPPET

BI-DIR, poppet valve

1шт.

7

700715929

SEAL KIT

SEAL AND O-RING REPAIR KIT

1шт.

Выбрано товаров: 8
