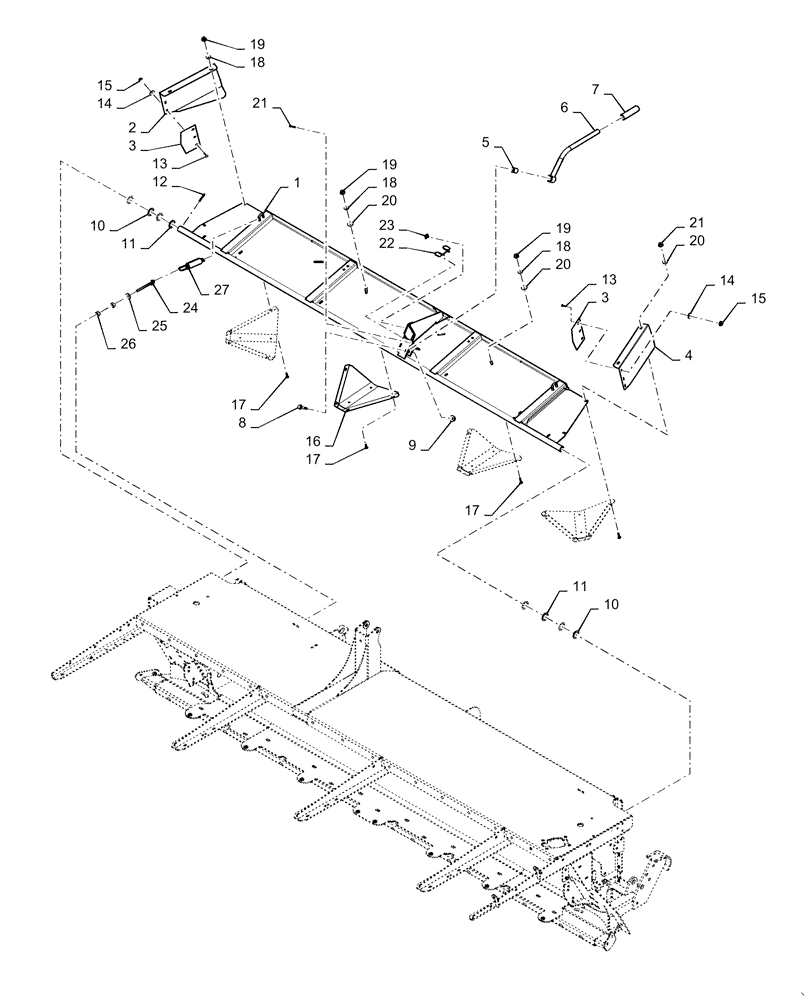

Запчасти Case IH DC163 (60.620.AH[02]) - SWATHGATE, ASSY, ROLL (60) - PRODUCT FEEDING

1

84348691

SWATHBOARD

Roll

1шт.

2

84335734

DEFLECTOR

RH

1шт.

3

47400826

DEFLECTOR

2шт.

4

84335733

DEFLECTOR

LH

1шт.

5

285505

SPACER

1шт.

6

47473060

HANDLE

1шт.

7

602734

HANDLE GRIP

1шт.

8

86521618

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

9

86521607

FLANGE NUT,Flg, 1/2"-13, G5

1шт.

10

214539

WASHER,34.9mm ID x 50.8mm OD x 0.51mm Thk

4шт.

11

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

4шт.

12

87399

COTTER PIN,1/2 x 3 Bolt

2шт.

13

88715

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

6шт.

14

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

6шт.

15

9626558

FLANGE NUT,Flg, 1/4"-20

6шт.

16

47374960

WEDGE

4шт.

17

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

16шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

19

86521605

FLANGE NUT,5/16"-18, Cl 5

16шт.

20

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

8шт.

21

87397

COTTER PIN,3/16" OD x 1" L

1шт.

22

9847357

CABLE

Lanyard

1шт.

23

87109290

LOCK PIN,25.4mm OD x 30mm L

1шт.

24

631201

EYEBOLT

2шт.

25

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

26

9628503

NUT,3/8"-16, G5

2шт.

27

87579261

SPRING HOOK

Extension

4шт.
