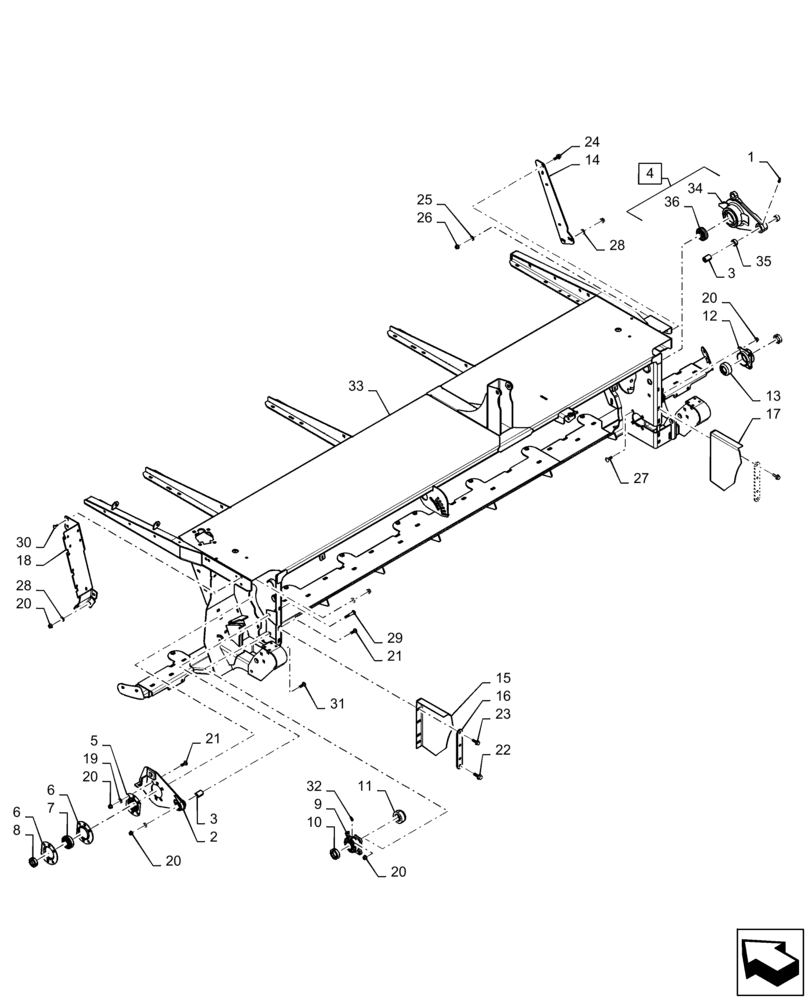

Запчасти Case IH DC163 (60.620.AH[01]) - HEADER, ASSY, 4.9M ROLL (60) - PRODUCT FEEDING

1

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

1шт.

2

87056485

ARM ASSY.

LH

1шт.

3

9849929

SPACER

2шт.

4

84563375

ARM

Assy, Bearing, Incl 34 - 36

1шт.

5

222200

SHROUD

1шт.

6

84523817

FLANGE

2шт.

7

84258416

BALL BEARING,34.92mm ID x 77.5mm OD x 25mm W

1шт.

8

45393

COLLAR

Lock, 35mm

2шт.

9

84560739

BEARING HOUSING

1шт.

10

45631

COLLAR

Lock, 44.5mm

1шт.

11

84530786

SPACER

1шт.

12

84527700

BEARING HOUSING

1шт.

13

86573045

SPACER,34.6mm ID x 75.6mm OD x 33.8mm L

1шт.

14

47472764

SUPPORT

1шт.

15

47472747

SHIELD

LH, Roll

1шт.

16

47456076

STRAP

2шт.

17

47472758

SHIELD

RH, Roll

1шт.

18

47472766

SUPPORT

1шт.

19

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

6шт.

20

86521607

FLANGE NUT,Flg, 1/2"-13, G5

26шт.

21

88783

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

1шт.

22

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

23

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

6шт.

24

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

25

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

26

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

27

280502

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

2шт.

28

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

6шт.

29

280818

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

2шт.

30

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

31

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

2шт.

32

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

3шт.

33

47702801

HEADER

Roll, 4.9M

1шт.

34

84563374

Incl 4

1шт.

35

86540342

BUSHING,30.15mm ID x 36.41mm OD x 19.05mm L

Incl 4

2шт.

36

694444

BALL BEARING,34.95mm Hex x 80mm OD x 36.51mm W

Incl 4

1шт.
