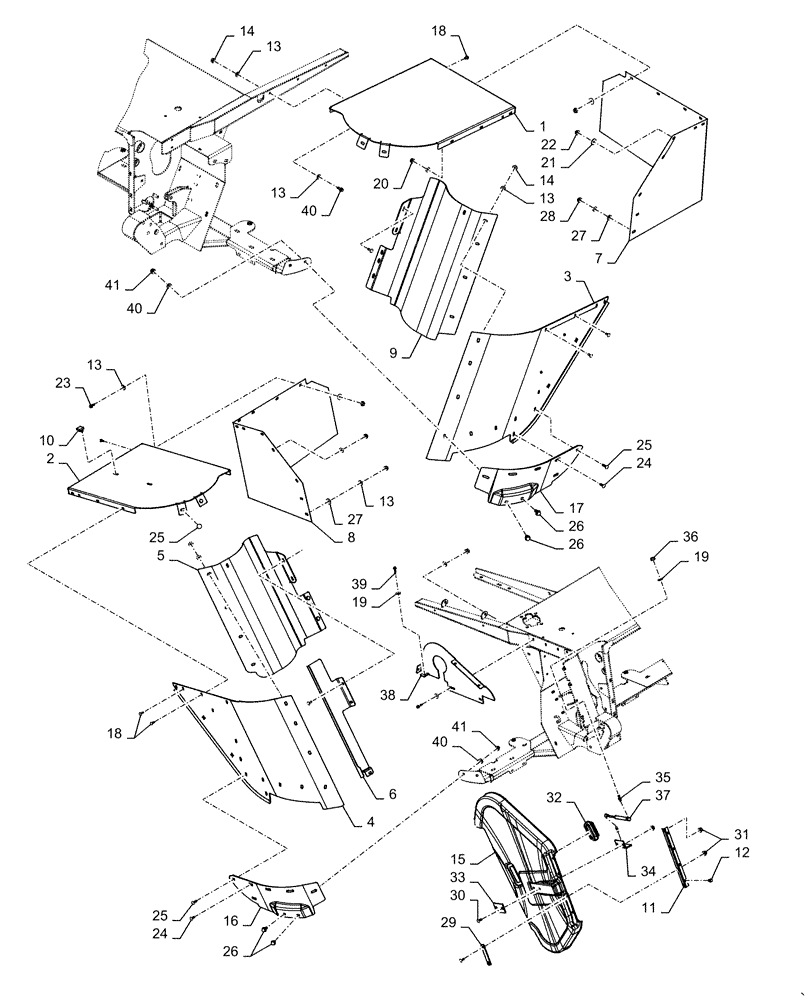

Запчасти Case IH DC163 (58.130.AD[06]) - SHIELD, GROUP, CHEEK 4.9M FLAIL (58) - ATTACHMENTS/HEADERS

1

84425000

SHEET

Top, RH

1шт.

2

84340144

SHEET

Top, LH

1шт.

3

84425594

SHEET

Cheek, RH

1шт.

4

84425592

SHEET

Cheek, LH

1шт.

5

84422493

SHEET

Rear, LH

1шт.

6

47434801

SHIELD

1шт.

7

47456141

SKIRT

RH

1шт.

8

47456138

SKIRT

LH

1шт.

9

84422977

SHEET

Rear, RH

13шт.

10

216328

BUMPER

Block

2шт.

11

47364642

HINGE

1шт.

12

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

40шт.

14

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

32шт.

15

84598613

SHIELD

Assy, 4.9M

1шт.

16

47362111

REINFORCEMENT

LH

1шт.

17

47362113

REINFORCEMENT

RH

1шт.

18

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

20шт.

19

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

20

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

21

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

18шт.

22

145458

SERRATED NUT,5/16"-18 GR 5 ZND

18шт.

23

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

24

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

24шт.

25

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

6шт.

26

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

27

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

28

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

29

47406848

PLATE

2шт.

30

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

31

86521609

FLANGE NUT,Flg, 3/8"-16

6шт.

32

83962571

HANDLE

Cover

1шт.

33

47406180

PLATE

1шт.

34

47406178

ANGLE

1шт.

35

86628347

STUD,M8 x 36.5mm OAL, 10mm OD Ball

Long

2шт.

36

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

37

47484279

GAS STRUT

1шт.

38

47617963

SHIELD

1шт.

39

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

40

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

2шт.

41

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.
