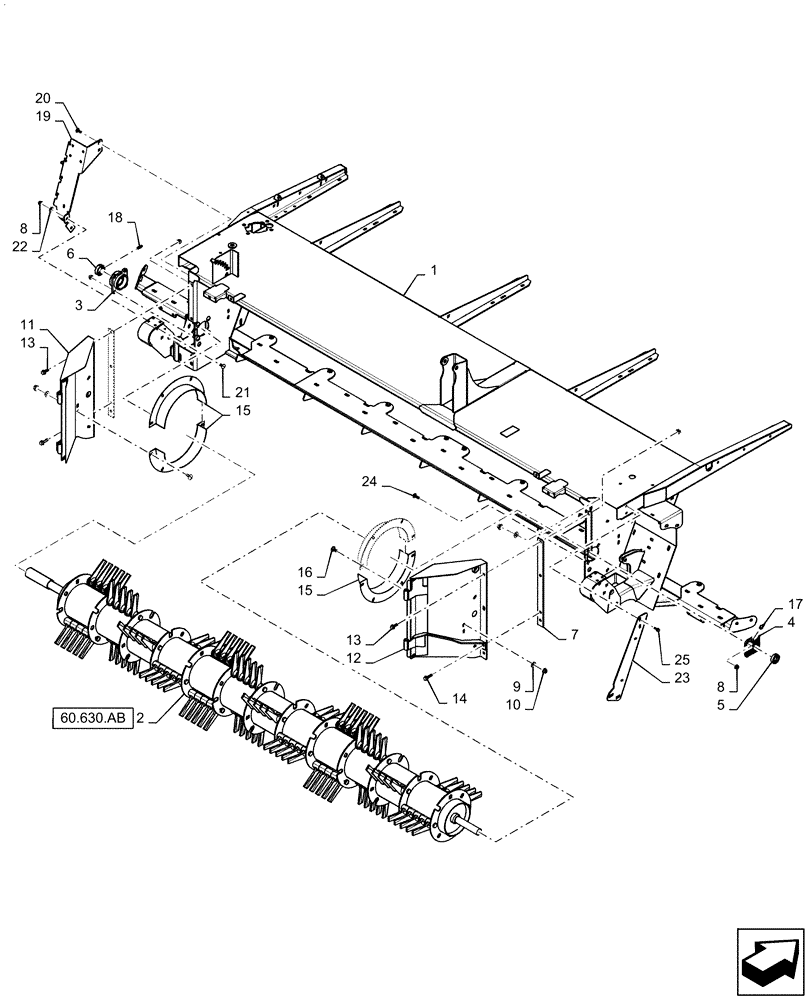

Запчасти Case IH DC163 (58.130.AD[05]) - HEADER, ASSY, FLAIL (58) - ATTACHMENTS/HEADERS

1

47702802

HEADER

4M Flail

1шт.

1

47702803

HEADER

4.9M Flail

1шт.

2

NSS

NOT SOLD SEPARAT

Rotor Assy, 125in.

1шт.

3

84560739

BEARING HOUSING

1шт.

4

84482626

BEARING ASSY,Bearing and Housing

1шт.

5

45393

COLLAR

Lock, 35MM

1шт.

6

45631

COLLAR

Lock, 44.5MM

1шт.

7

47471276

MOUNTING PLATE

2шт.

8

86521607

FLANGE NUT,Flg, 1/2"-13, G5

18шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

20шт.

10

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

20шт.

11

47472704

SHIELD

LH

1шт.

12

47472709

SHIELD

RH

1шт.

13

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

14

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

15

47471495

SHIELD

Antiwrap

4шт.

16

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

16шт.

17

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

1шт.

18

87414

LUBE NIPPLE,1/4" - 28

1шт.

19

47472766

SUPPORT

1шт.

20

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

21

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

2шт.

22

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

4шт.

23

47472764

SUPPORT

1шт.

24

280502

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

2шт.

25

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.
