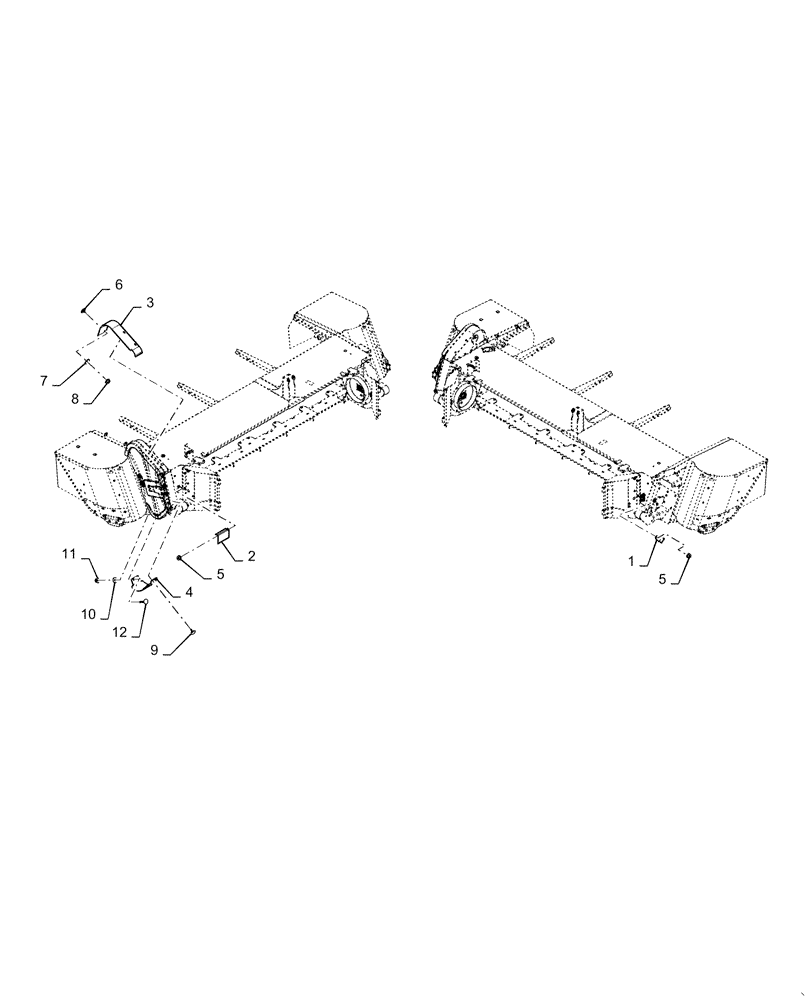

Запчасти Case IH DC163 (58.130.AD[04]) - SHIELD, GROUP, FLAIL (58) - ATTACHMENTS/HEADERS

1

84480235

SHIELD

1шт.

2

47370314

SHIELD

1шт.

3

84548038

SHIELD

1шт.

4

47605852

SHIELD

1шт.

5

86521607

FLANGE NUT,Flg, 1/2"-13, G5

4шт.

6

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

3шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

8

86521605

FLANGE NUT,5/16"-18, Cl 5

3шт.

9

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

11

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

12

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.
