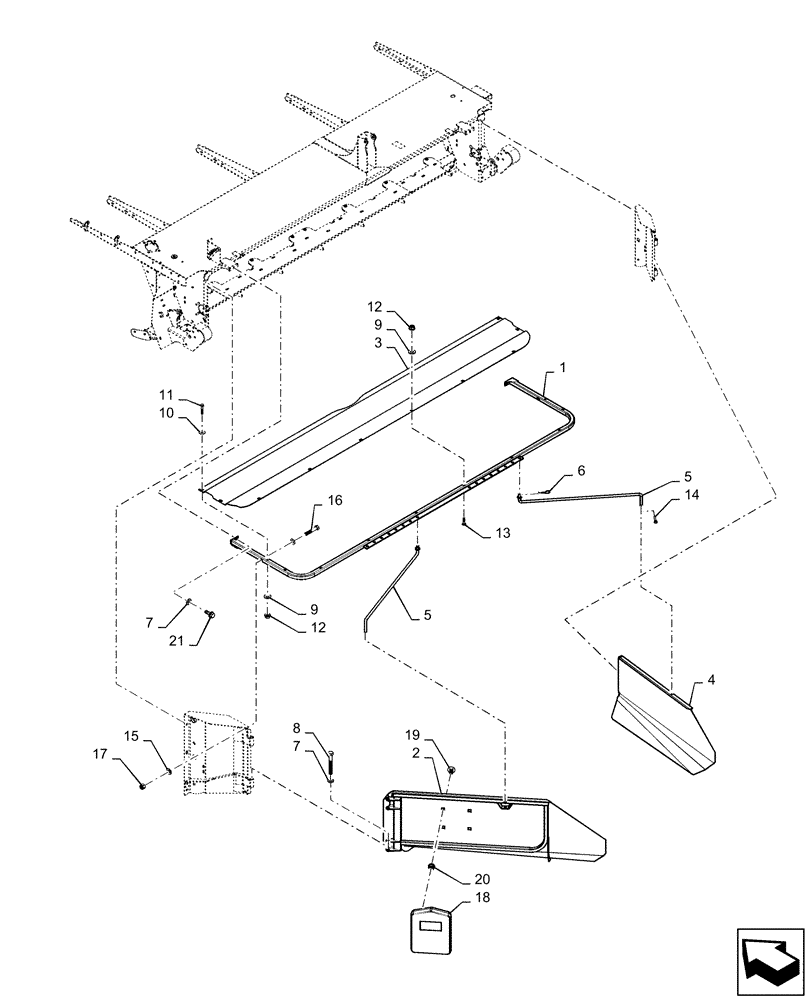

Запчасти Case IH DC163 (58.130.AD[03]) - SHIELD, REAR, DUCKTAIL ASSY, FLAIL (58) - ATTACHMENTS/HEADERS

1

84578789

SUPPORT

Hood

1шт.

2

84394267

SHIELD

LH

1шт.

3

84394956

SHIELD

Ducktail

1шт.

4

84602933

SHIELD

RH

1шт.

5

47373146

ROD

2шт.

6

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

2шт.

7

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

6шт.

8

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

10

86900237

WASHER,0.41" ID x 1.25" OD x 0.06" Thk

4шт.

11

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

12

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

10шт.

13

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

8шт.

14

87397

COTTER PIN,3/16" OD x 1" L

2шт.

15

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

16

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

17

9636698

NUT,1/2"-13, GB

2шт.

18

86613674

CASE

Manual

1шт.

19

88715

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

4шт.

20

9626558

FLANGE NUT,Flg, 1/4"-20

4шт.

21

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.
