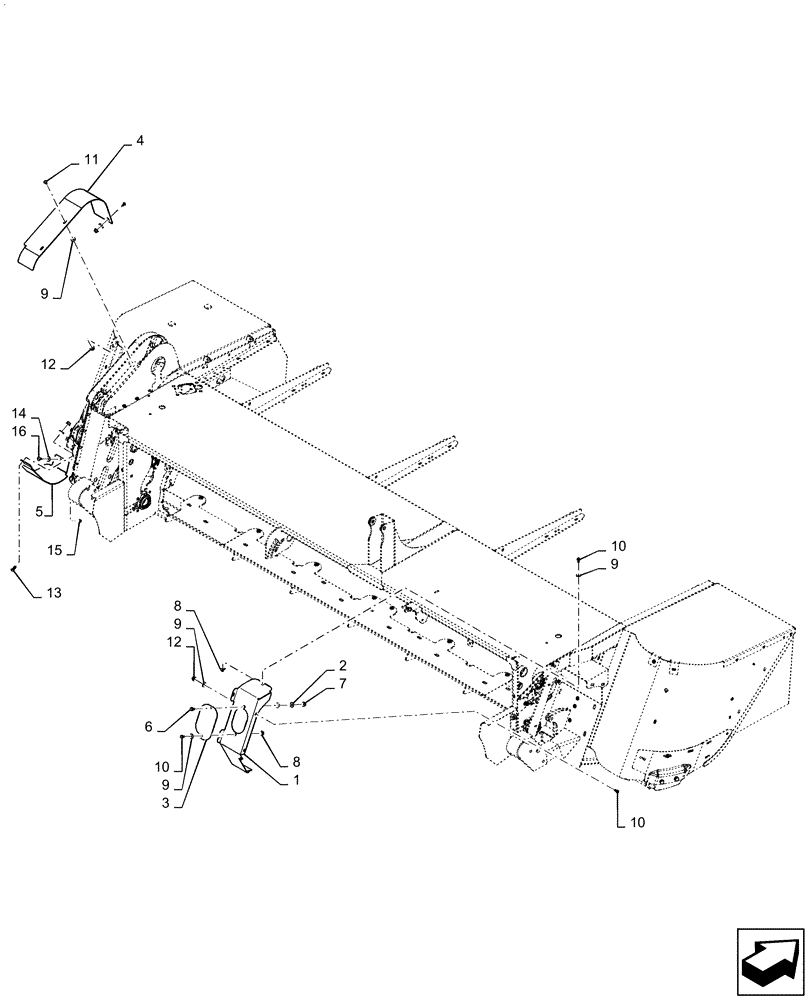

Запчасти Case IH DC163 (58.130.AD[02]) - SHIELD, GROUP, ROLL (58) - ATTACHMENTS/HEADERS

1

47408827

COVER

RH

1шт.

2

215588

WASHER

2шт.

3

84467942

DOOR

1шт.

4

84548038

SHIELD

1шт.

5

47605852

SHIELD

1шт.

6

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

7

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

8

9626645

NUT

2шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

9шт.

10

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

11

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

3шт.

12

86521605

FLANGE NUT,5/16"-18, Cl 5

4шт.

13

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

15

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

16

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.
