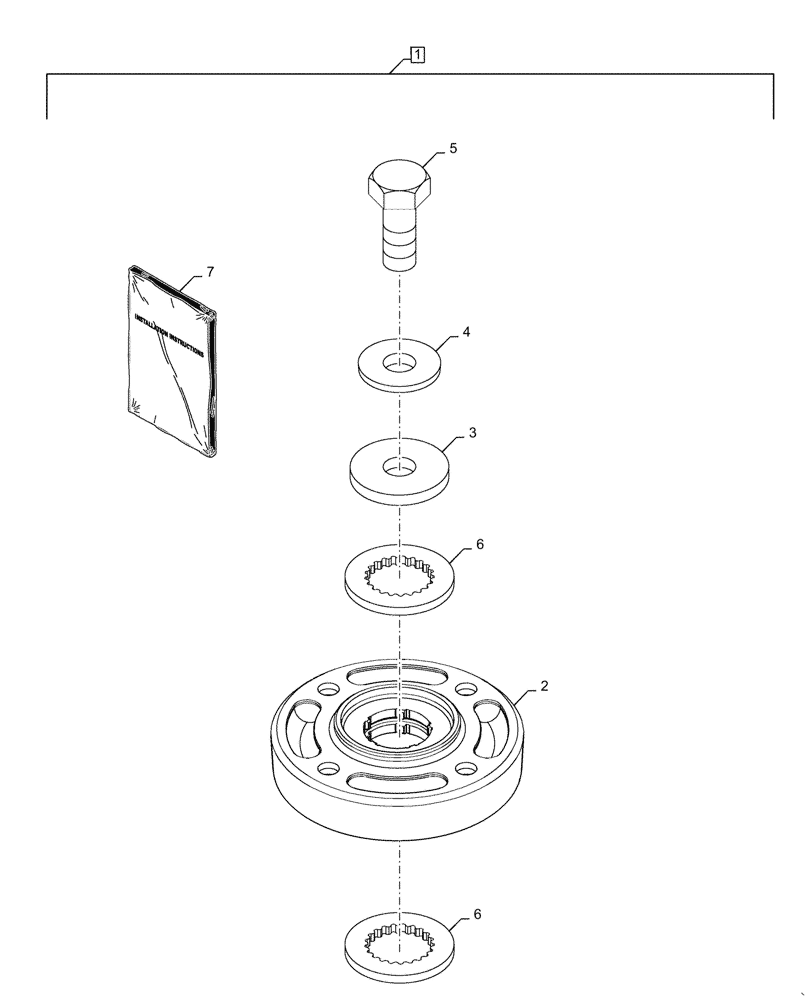

Запчасти Case IH DC163 (58.110.BE[10]) - SHOCK/SHEAR HUB ASSY (58) - ATTACHMENTS/HEADERS

1

47422576

SERVICE KIT

Shock Hub Repair, Incl 2 - 7

1шт.

2

84515519

HUB

Assy

1шт.

3

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

1шт.

4

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

1шт.

5

88706

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

1шт.

6

84330717

WASHER

Splined

2шт.

7

47426322

INSTRUCTION

Shock Hub Repair

1шт.
