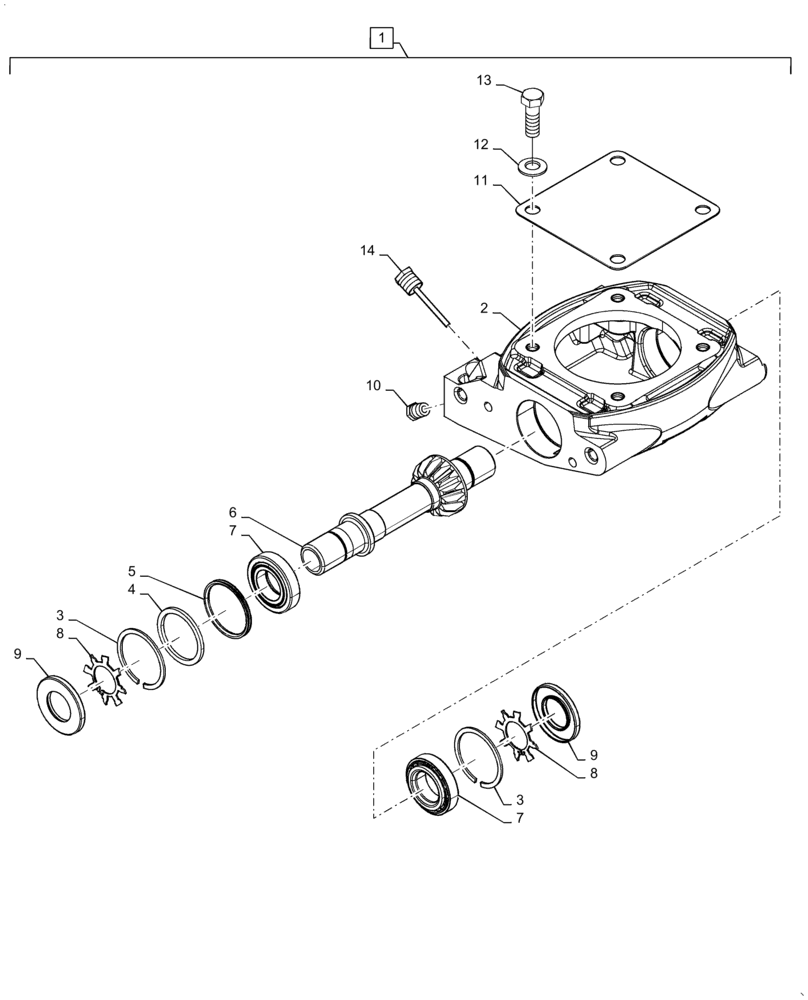

Запчасти Case IH DC163 (58.110.BE[08]) - MODULE, CCW (58) - ATTACHMENTS/HEADERS

1

47581825

MODULE

CCW, Incl 2 - 13

1шт.

10 Disc Has 5 CCW. 8 Disc Has 4 CCW.

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

86508784

SNAP RING

Retaining

2шт.

4

86524423

WASHER

1шт.

5

783467

SPACER

Adjustable

1шт.

6

47699365

KIT

Pinion, Shaft

1шт.

7

NSS

NOT SOLD SEPARAT

Roller Bearing, Tapered Assy, Incl In 6

2шт.

8

86515894

SLINGER

2шт.

9

86511201

SEAL

2шт.

10

86568834

PLUG,1/4" - 18 NPT

1шт.

11

84390175

COVER

1шт.

12

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

4шт.

13

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

14

84329663

DIPSTICK

1шт.
