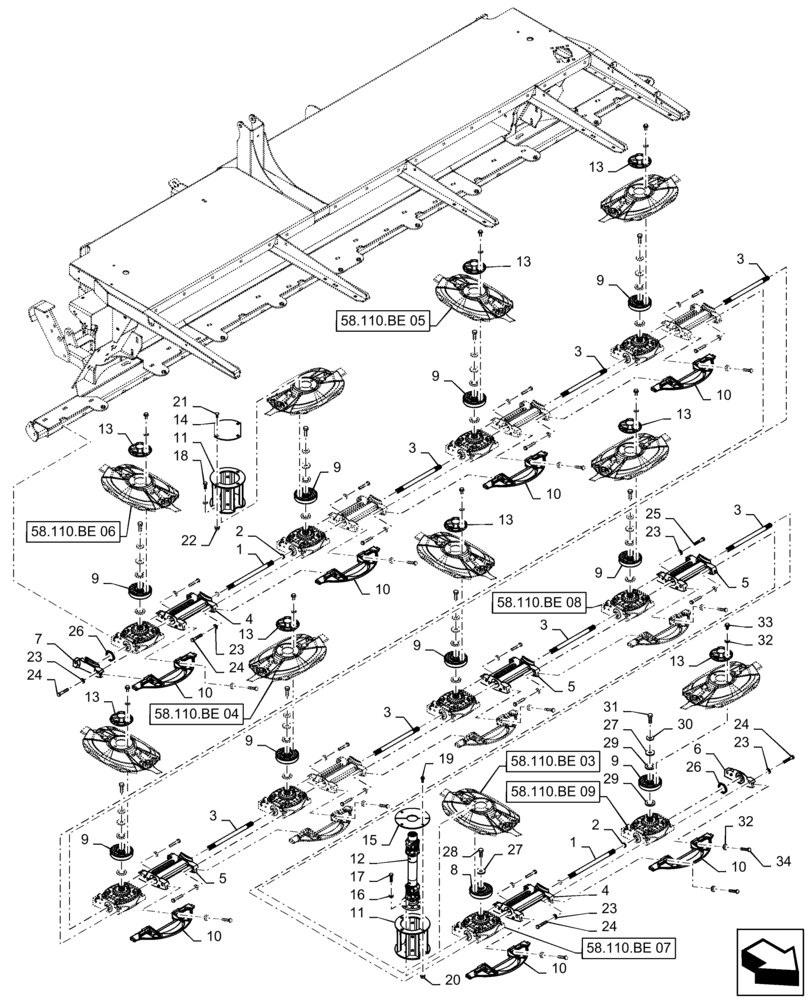

Запчасти Case IH DC163 (58.110.BE[02]) - CUTTERBAR, 10-DISC, BASIC (58) - ATTACHMENTS/HEADERS

1

84599347

SHAFT

Coupler, Long

2шт.

2

47378580

DISC

Rubber

4шт.

3

84568725

SHAFT

Coupler, Assy

7шт.

4

47761970

SPACER

Assy, Long

2шт.

5

47761969

SPACER

Assy

7шт.

6

47761972

CAP

Assy, LH End

1шт.

7

47761971

CAP

Assy, RH End

1шт.

8

84516416

HUB

Assy, Drive

1шт.

9

84515519

HUB

Assy, Shear

9шт.

10

47720599

GUARD

Rock, Quick Change

10шт.

11

87040772

DRUM

PTO

2шт.

12

84368755

PTO

Cutter Bar

1шт.

13

87014784

CAP

Assy

8шт.

14

86631895

COVER

1шт.

15

47381316

RING

Split

2шт.

16

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

17

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

4шт.

18

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

19

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

20

86521609

FLANGE NUT,Flg, 3/8"-16

4шт.

21

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

22

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

23

262183

WASHER

12шт.

24

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

8шт.

25

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

4шт.

26

241104

O-RING,0.07" Thk x 2.489" ID, -37, Cl 5, 75 Duro

2шт.

27

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

2шт.

28

88685

BOLT,Hex, 5/8" x 1 1/2", Gr 8, Full Thd

1шт.

29

84330717

WASHER

2шт.

30

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

1шт.

31

88706

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

1шт.

32

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

24шт.

33

9790143

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

4шт.

34

47491369

BOLT

20шт.
