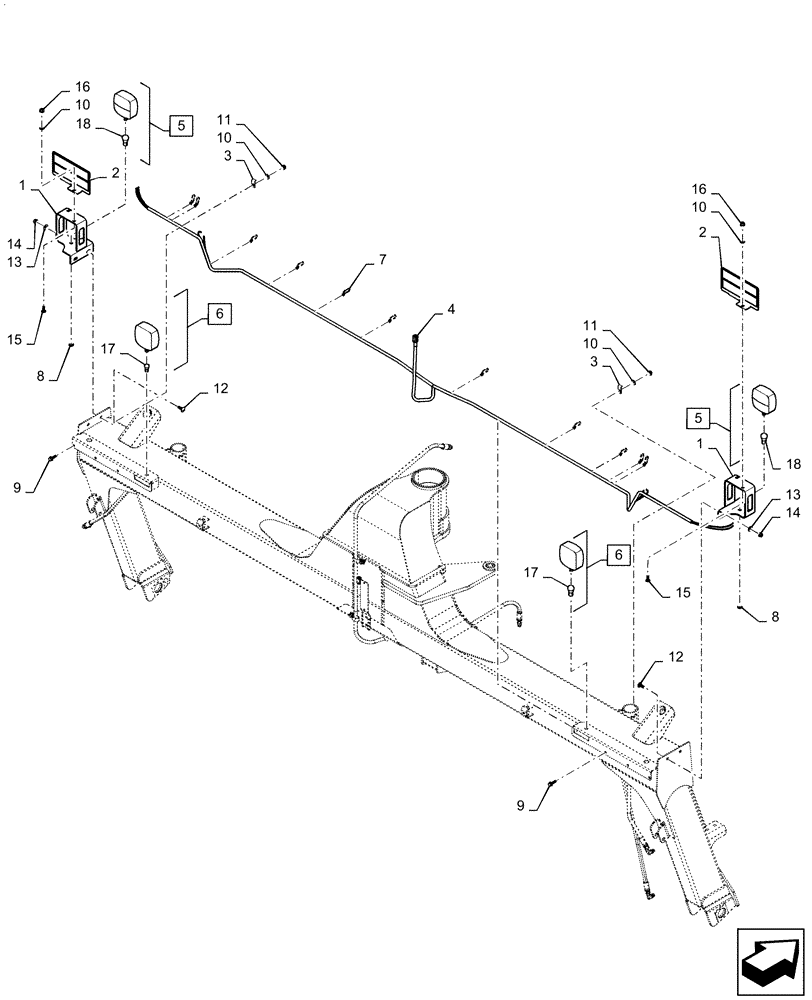

Запчасти Case IH DC163 (55.404.CL[02]) - LIGHT, HAZARD/TAIL (55) - ELECTRICAL SYSTEMS

1

47572622

BRACKET

1шт.

2

47572679

BRACKET

Reflector

1шт.

3

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

6шт.

4

84415425

WIRE HARNESS

1шт.

5

608852

WARNING LIGHT

Amber, Incl 18

1шт.

6

86514198

TAIL LAMP

Red, Incl 17

12шт.

7

249730

SECURING STRAP,8" L

CableTie

1шт.

8

86515458

WASHER,13mm ID x 22.22mm OD x 1.62mm Thk

6шт.

9

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

11

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

12

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

14

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

15

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

1шт.

16

9823743

FLANGE NUT,Flg, 5/16"-18

1шт.

17

86537133

BULB,C6, #1157, 12.8V

2шт.

18

529068

BULB,#1156, 12V, 21W

2шт.
