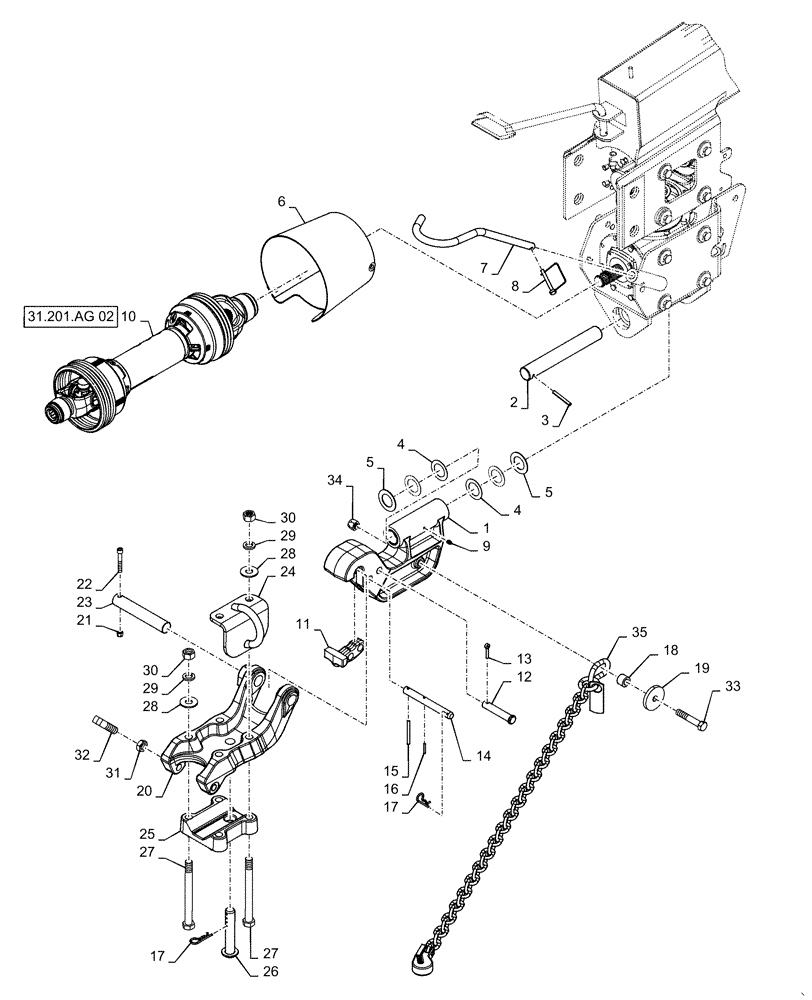

Запчасти Case IH DC163 (39.110.AM[04]) - HITCH, DRAWBAR ASSY (39) - FRAMES AND BALLASTING

1

86593731

HITCH

Assy

1шт.

2

86519423

PIN

Dowel

1шт.

3

87948

LOCK PIN,7.94mm OD x 63.5mm L, Slotted

1шт.

4

233295

WASHER

2шт.

5

28691

WASHER,39mm ID x 60mm OD x 0.89mm Thk

4шт.

6

47364437

SHIELD

Trumpet, Notched

1шт.

7

87029373

SUPPORT ASSY.

1шт.

8

647695

PIN,7.94mm OD

Snap

1шт.

9

87414

LUBE NIPPLE,1/4" - 28

1шт.

10

NSS

NOT SOLD SEPARAT

Shaft, PTO, Primary Drawbar Swivel

1шт.

11

86603572

PAWL

1шт.

12

86510381

PIN

Clevis

1шт.

13

87402

COTTER PIN,1/4" OD x 1-1/4" OAL

1шт.

14

86602275

PIN,19.05mm OD x 175mm L

1шт.

15

87955

LOCK PIN,6.35mm OD x 76.2mm L, Slotted

1шт.

16

80777

GROOVED PIN,3/16" x 1 1/4", Type A

1шт.

17

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

2шт.

18

86607695

SPACER,17.48mm ID x 28.6mm OD x 20.6mm L

1шт.

19

636422

WASHER,16.66mm ID x 69.85mm OD

1шт.

20

47612343

SUPPORT

1шт.

21

88902

NUT,3/8"-16

1шт.

22

86625652

HEX SOC SCREW,3/8" - 16 x 2.50"

1шт.

23

86624603

PIN

Straight

1шт.

24

86632112

SUPPORT

Loop

1шт.

25

47673936

CLAMP

1шт.

26

47679346

PIN

1шт.

27

88945

BOLT,Hex, 3/4" - 10 x 8", Gr 5

4шт.

28

578092

WASHER,19.4mm ID x 47.6mm OD x 3.43mm Thk

4шт.

29

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

4шт.

30

280954

NUT,3/4"-10, G5

4шт.

31

84972

JAM NUT,Jam, 3/4"-10, G2

2шт.

32

87493305

SCREW

Set

2шт.

33

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

34

85700693

NUT,5/8" - 11, Gr C

1шт.

35

797900

CHAIN

Safety, Assy

1шт.
