Запчасти Case IH DC163 (39.110.AM[02]) - TONGUE, SWIVEL, LESS HITCH (39) - FRAMES AND BALLASTING

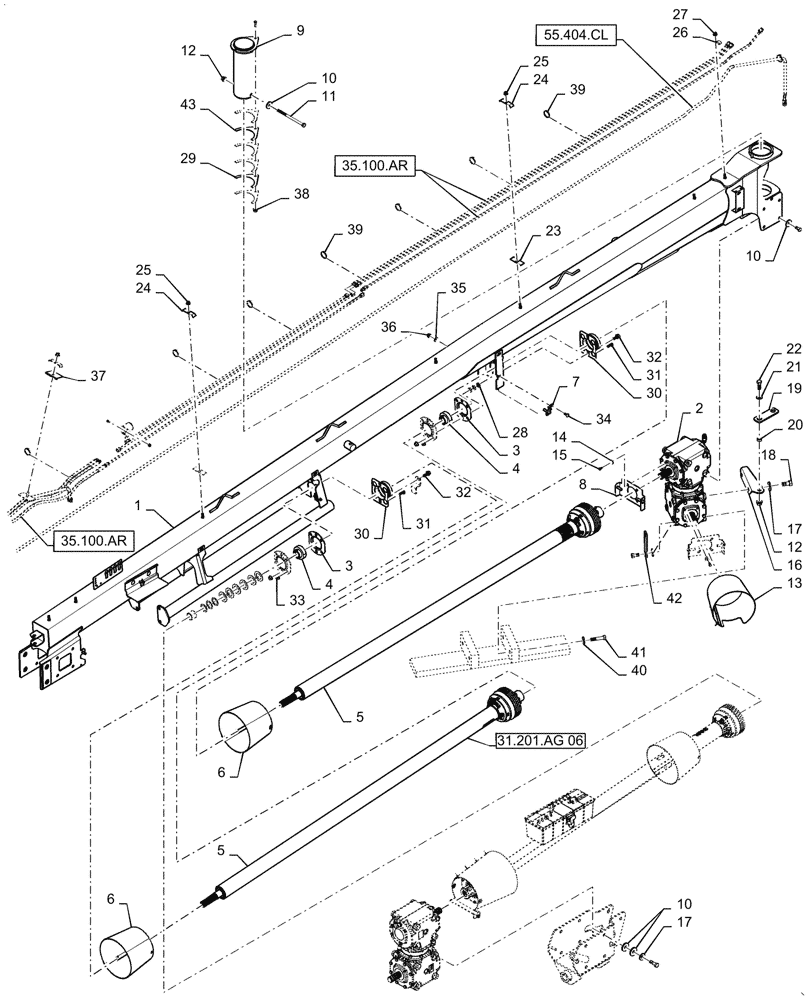

Схема запчастей Case IH DC163 - (39.110.AM[02]) - TONGUE, SWIVEL, LESS HITCH (39) - FRAMES AND BALLASTING
35.100.ar
15
10
31
34
28
25
39
32
5
21
32
12
14
40
27
43
2
1
36
7
3
17
11
38
12
26
30
6
9
25
19
22
13
39
30
24
42
24
41
37
29
20
18
10
31
4
4
23
8
5
35
17
16
10
3
6
33
31.201.ag 06
55.404.cl
35.100.ar

Артикул

Название

Примечание

Количество

1

47672424

TONGUE

4.0m, 8-Disc

1шт.

1

47672429

TONGUE

4.9m, 10-Disc

1шт.

2

84306516

GEARBOX

1шт.

2

84306516R

REMAN-GEARBOX

1шт.

2

84306516C

CORE-GEARBOX

Return Number

1шт.

3

86629969

FLANGE

4шт.

4

86552016

BALL BEARING,38.1mm ID x 80mm OD x 21.01mm W

2шт.

5

84306528

PTO

Tongue, 4.0m, 8-Disc

2шт.

5

84368747

PTO

Tongue, 4.9m, 10-Disc

2шт.

6

47364436

SHIELD

3шт.

7

47427771

BRACKET

2шт.

8

47602437

SUPPORT

2шт.

9

47585964

TUBE

Pivot

1шт.

10

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

42шт.

11

86518628

BOLT,Hex, 5/8" - 11 x 9 1/2", Gr 8

1шт.

12

86521611

FLANGE NUT,Flg, 5/8"-11

2шт.

13

47364437

SHIELD

1шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

15

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

8шт.

16

84411496

ANGLE

1шт.

17

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

18шт.

18

280319

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5, Full Thd

11шт.

19

84411514

STRAP

1шт.

20

46710

SPACER,16.27mm ID x 25.48mm OD x 11.1mm Thk

1шт.

21

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

22

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

1шт.

23

765394

PAD,19.8mm ID x 31.8mm W x 101.6mm L

7шт.

24

86571694

CLAMP

8шт.

25

86521609

FLANGE NUT,Flg, 3/8"-16

9шт.

26

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

27

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

28

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

3шт.

29

84418967

SHIM

4шт.

30

47457294

SHIELD

2шт.

31

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

10шт.

32

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

33

86521607

FLANGE NUT,Flg, 1/2"-13, G5

12шт.

34

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

35

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

36

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

37

9847249

TAPE

1шт.

38

9626558

FLANGE NUT,Flg, 1/4"-20

3шт.

39

263117

CABLE TIE,292.1mm L, Nylon, Black

12шт.

40

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

41

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

4шт.

42

47547844

STRIP

1шт.

43

47638001

SHIM

2шт.

Выбрано товаров: 47
