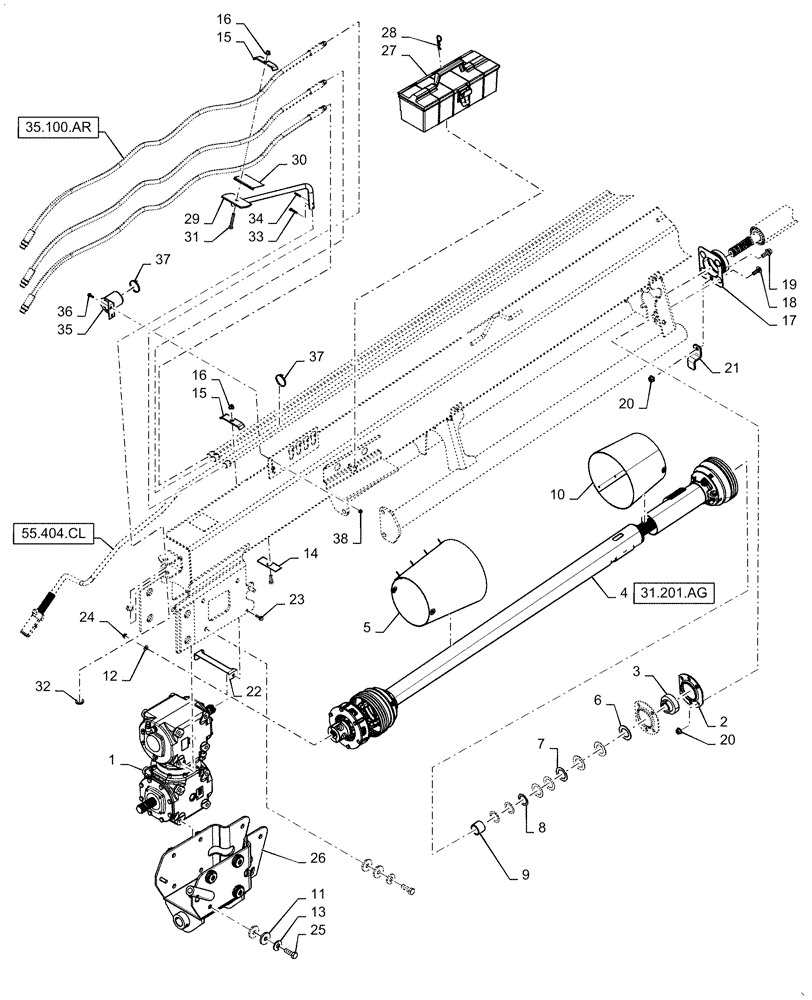

Запчасти Case IH DC163 (39.110.AM[01]) - TONGUE, SWIVEL, LESS HITCH (39) - FRAMES AND BALLASTING

1

84219471

GEARBOX

1шт.

2

86629969

FLANGE

4шт.

3

86552016

BALL BEARING,38.1mm ID x 80mm OD x 21.01mm W

2шт.

4

NSS

NOT SOLD SEPARAT

PTO Assy, W/Clutch

3шт.

5

47364435

SHIELD

1шт.

6

233295

WASHER

3шт.

7

28691

WASHER,39mm ID x 60mm OD x 0.89mm Thk

3шт.

8

58630

WASHER,.0299" Thk

3шт.

9

84379500

HUB

1шт.

10

47364436

SHIELD

3шт.

11

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

42шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

13

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

18шт.

14

765394

PAD,19.8mm ID x 31.8mm W x 101.6mm L

7шт.

15

86571694

CLAMP

8шт.

16

86521609

FLANGE NUT,Flg, 3/8"-16

9шт.

17

47457294

SHIELD

2шт.

18

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

10шт.

19

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

20

86521607

FLANGE NUT,Flg, 1/2"-13, G5

12шт.

21

47393496

BRACKET

Short

1шт.

21

47723242

BRACKET

Long

1шт.

22

84593884

SHIELD

1шт.

23

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

24

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

25

86604182

LOCK BOLT,Spcl, Gr 5

16шт.

26

47603133

TRUNNION

1шт.

27

5135060

TOOL BOX

1шт.

28

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

1шт.

29

86586304

SUPPORT

1шт.

30

9847249

TAPE

1шт.

31

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

32

9706679

WASHER,0.8" ID x 1.25" OD x 0.14" Thk

2шт.

33

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

34

80777

GROOVED PIN,3/16" x 1 1/4", Type A

1шт.

35

9611467

HOLDER

1шт.

36

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

37

263117

CABLE TIE,292.1mm L, Nylon, Black

12шт.

38

9626558

FLANGE NUT,Flg, 1/4"-20

3шт.
