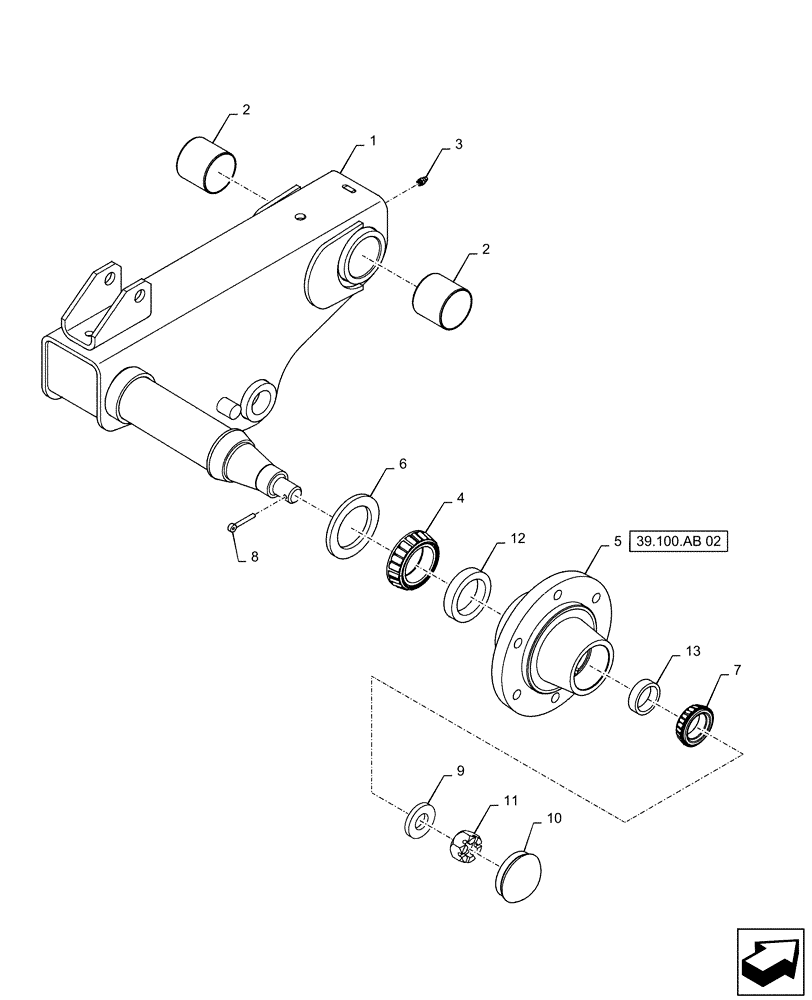

Запчасти Case IH DC163 (39.100.AB[03]) - ARM, WHEEL ASSY, LH (39) - FRAMES AND BALLASTING

1

47461833

ARM

Wheel, LH

1шт.

2

788926

DRIVE BUSHING,50.75mm ID x 54mm OD x 47.8mm L

2шт.

3

87414

LUBE NIPPLE,1/4" - 28

1шт.

4

199954

BEARING CONE,50mm ID x 21.5mm W

1шт.

5

84523146

HUB

Assy

1шт.

6

245856

OIL SEAL,57.15mm ID x 82.75mm OD x 6.76mm Thk

1шт.

7

175507

BEARING CONE,35 mm ID x 16.764 mm

Cone

1шт.

8

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

9

9845587

WASHER,23.8mm ID x 44.5mm OD x 6.4mm Thk

1шт.

10

56868

COVER

Hub

1шт.

11

280172

SLOTTED NUT,7/8"-14

1шт.

12

199955

BEARING CUP,82mm OD x 17mm W

1шт.

13

175508

BEARING CUP,59.16mm OD x 11.94mm W

1шт.
