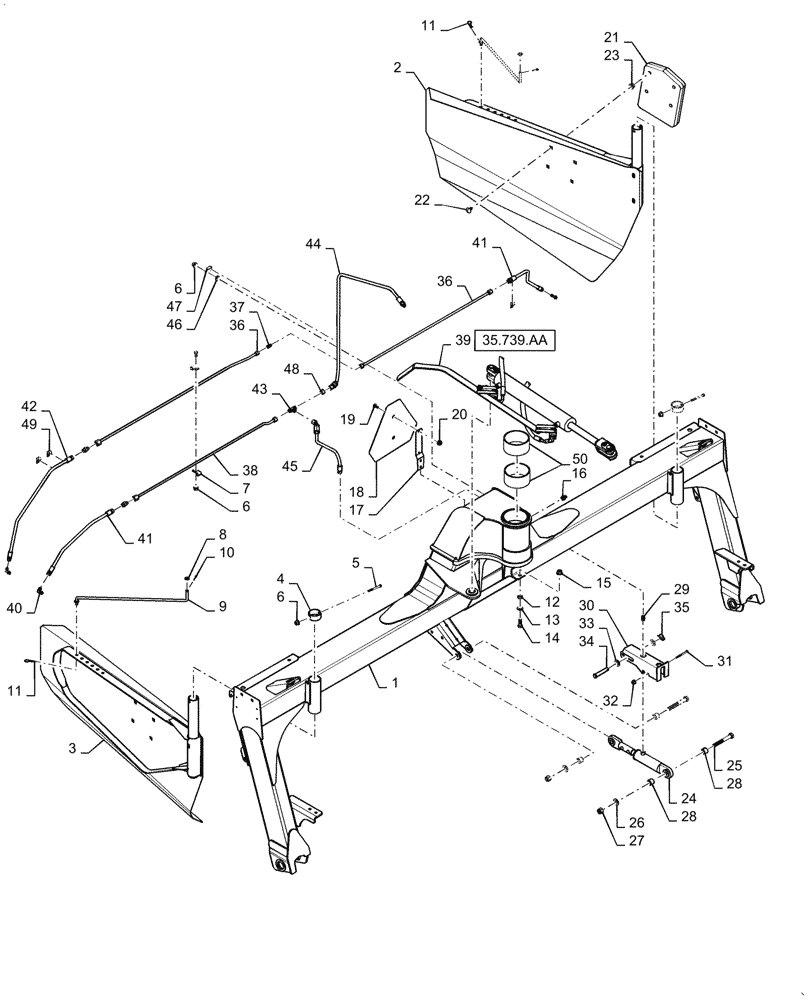

Запчасти Case IH DC163 (39.100.AB[01]) - FRAME, ROLL TRAIL ASSY, RUBBER/STEEL (39) - FRAMES AND BALLASTING

1

47584191

FRAME

Trail, Roll

1шт.

1

48143914

Trail, MY18 Units Only

FRAME

1шт.

2

47454832

SHIELD

LH

1шт.

3

47454834

SHIELD

RH

1шт.

4

86545693

COLLAR

2шт.

5

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

2шт.

6

86521609

FLANGE NUT,Flg, 3/8"-16

6шт.

7

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

6шт.

8

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

9

86506511

ADJUSTMENT ROD

2шт.

10

87397

COTTER PIN,3/16" OD x 1" L

2шт.

11

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

2шт.

12

46710

SPACER,16.27mm ID x 25.48mm OD x 11.1mm Thk

1шт.

13

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

14

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

1шт.

15

86521611

FLANGE NUT,Flg, 5/8"-11

1шт.

16

87414

LUBE NIPPLE,1/4" - 28

1шт.

17

195035

SUPPORT

SMV

1шт.

18

86547710

EMBLEM

SMV

1шт.

19

84821

SCREW,Truss HD, #10 - 24 x 1/2"

2шт.

20

523310

SERRATED NUT,Flng, #10 - 24, Gr 5

2шт.

21

86613674

CASE

Manual

1шт.

22

88715

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

4шт.

23

9626558

FLANGE NUT,Flg, 1/4"-20

4шт.

24

84576781

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 103.63mm Stroke

1шт.

24

84576781R

Reman Cylinder

REMAN-HYD CYLINDER

1шт.

24

84576781C

Return Number

CORE-HYD CYLINDER

1шт.

25

86508734

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

2шт.

26

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.

27

280375

NUT,3/4"-10, GC

2шт.

28

86599380

SPACER

4шт.

29

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

30

86627885

CHAMBER

1шт.

31

86507008

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

1шт.

32

9823743

FLANGE NUT,Flg, 5/16"-18

1шт.

33

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

2шт.

34

86510381

PIN

1шт.

35

270184

LINCH PIN,6.35mm OD

1шт.

36

47477354

HYD TUBE

2шт.

37

128822

UNION,3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

38

47518304

TUBE

1шт.

39

NSS

NOT SOLD SEPARAT

Swing Cylinder Lock Assy

1шт.

40

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

3шт.

41

47484200

HYDRAULIC HOSE

2шт.

42

47484201

HYDRAULIC HOSE

1шт.

43

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

44

47484203

HYDRAULIC HOSE

1шт.

45

47484198

HOSE

1шт.

46

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

47

620019

CLAMP

1шт.

48

262159

CAP,3/4" - 16 Fem JIC

1шт.

49

239859

CLAMP

4шт.

50

84306534

BUSHING

Frame/Support

2шт.

51

48139393

Welded On Plate

PLATE

1шт.
