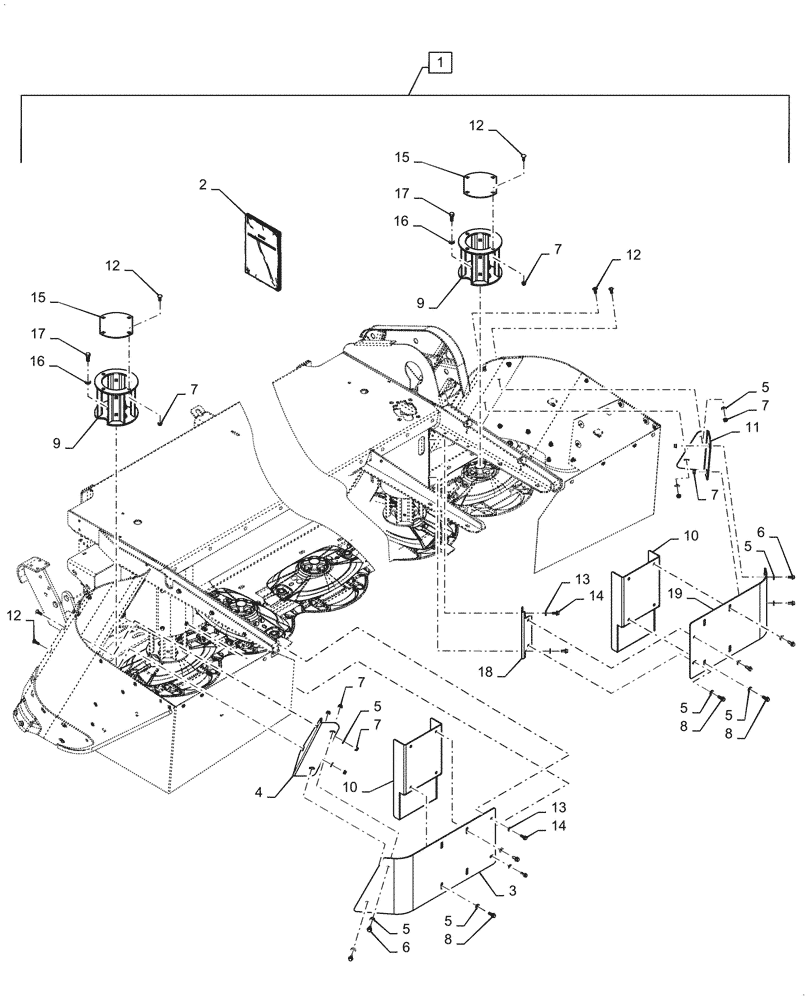

Запчасти Case IH DC163 (88.100.58[21]) - KIT, CROP GUIDE EXTENSION (88) - ACCESSORIES

1

47966443

KIT

Crop Guide Extension, CPDMC, Incl 2 - 20

1шт.

2

47967488

INSTRUCTION

Crop Guide Extension, CPDMC

1шт.

3

47626441

SHIELD

RH

1шт.

4

47626440

BRACKET

RH

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

18шт.

6

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

7

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

16шт.

8

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

9

87040772

DRUM

Crop Guide

2шт.

10

47962094

CHANNEL

Crop Guide

2шт.

11

47964665

BRACKET

LH

1шт.

12

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

12шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

14

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

15

86631895

COVER

Crop Guide

2шт.

16

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

17

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

8шт.

18

47966805

BRACKET

Crop Guide

1шт.

19

47966825

SHIELD

LH

1шт.

20

761273

FOAM

1/8 x 24 x 45.5

2шт.
