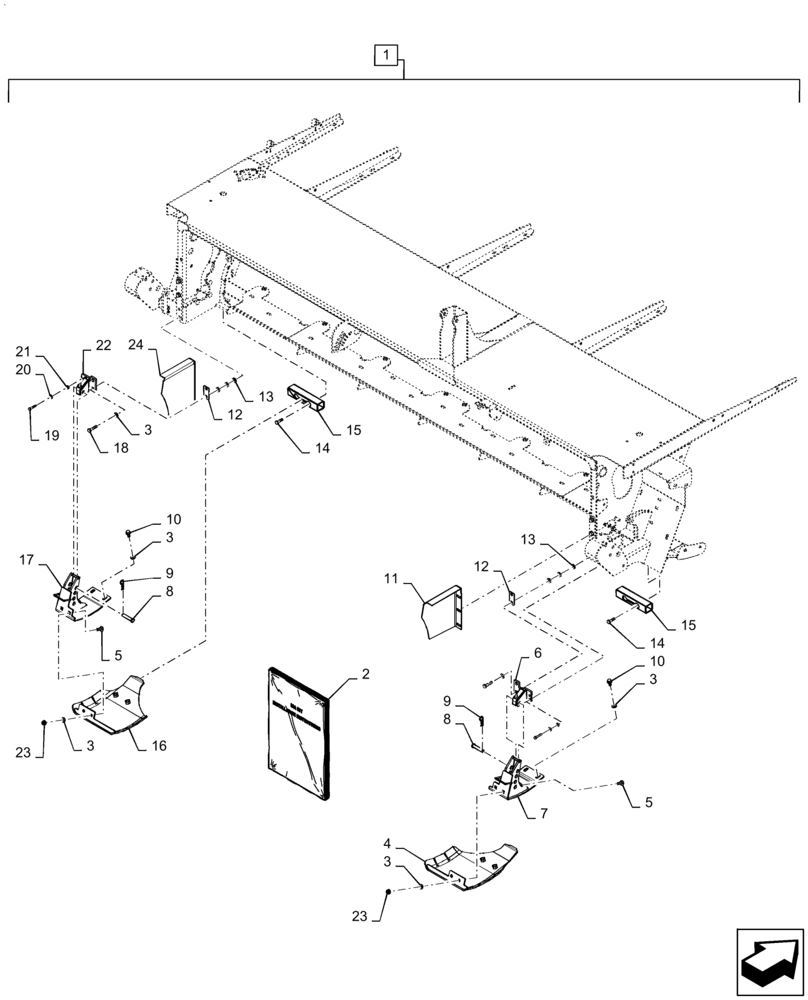

Запчасти Case IH DC133 (88.100.58[02]) - DIA KIT, ADJUSTABLE SKID/SHOE (88) - ACCESSORIES

1

415017016

KIT

ADJ SKID SHOE, Incl 2 - 24

1шт.

2

47596917

INSTRUCTION

INSTR, ADJ SKID SHOE II

1шт.

3

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

LW BV P 1/2

12шт.

4

47553882

SKID/SHOE

WA RH

1шт.

5

280833

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G8

1/2-13X1-1/2 FULL GR8 ZND

4шт.

6

47500173

SUPPORT

WA, RH

1шт.

7

47491575

SUPPORT

A RH

1шт.

8

87024650

HEADED PIN

2шт.

9

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

2шт.

10

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13X1 FULL GR5 ZND

4шт.

11

47494407

SHIELD

RH, Roll

1шт.

12

47501260

SPACER

SPACER

2шт.

13

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531X1.062X0.134 HTS ZND HDN

6шт.

14

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1/2-13X1-1/2 FULL GR5 ZND

4шт.

15

47492936

BRACKET

2шт.

16

47552914

SKID/SHOE

SHOE, SKID WA LH

1шт.

17

47487273

SUPPORT

WA LH

1шт.

18

80281058

SCREW

4шт.

19

280589

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

3/8-16X1-3/4 GR 8 ZND

4шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

M10X22 ZNM

4шт.

21

86637956

WASHER,0.41" ID x 0.75" OD x 0.22" Thk

4шт.

22

47495665

SUPPORT

WA, LH

1шт.

23

86544265

FLANGE NUT,Flg, 1/2"-13, G8

1/2-13 GR 8 ZND

4шт.

24

47494409

SHIELD

LH, Roll

1шт.
