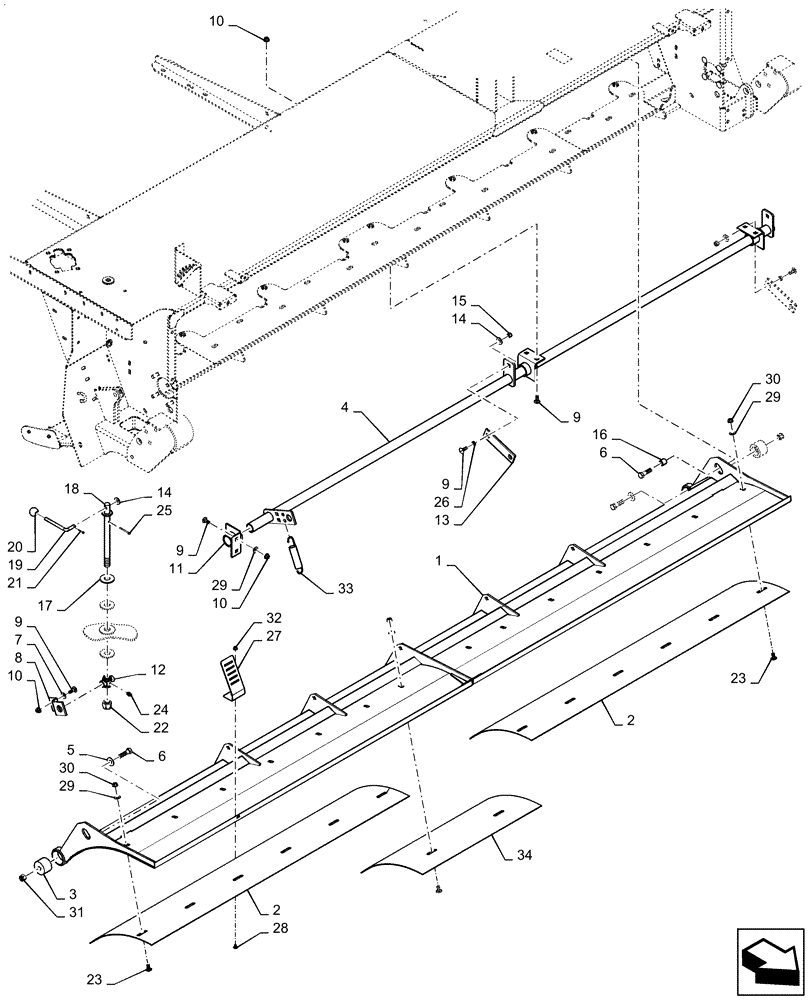

Запчасти Case IH DC133 (60.630.AC) - ROTOR, HOOD ASSY, FLAIL (60) - PRODUCT FEEDING

1

84360131

ROTOR

Hood

1шт.

2

86592527

METAL LINER

Smooth

2шт.

3

86592518

SPACER

2шт.

4

84360114

PIPE

1шт.

5

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

2шт.

6

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

4шт.

7

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

8

86551761

ANGLE

1шт.

9

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

12шт.

10

247780

SERRATED NUT,Flg, USR, 3/8"-16

8шт.

11

86551760

SLEEVE

1шт.

12

9622890

NUT

Trunnion, Lift

1шт.

13

86551759

CONNECTING LINK

2шт.

14

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

5шт.

15

9637692

NUT,3/8"-16, Gr B

4шт.

16

42610

BUSHING

Spacer, Split

2шт.

17

81543

WASHER,0.81" ID x 2" OD x 0.15" Thk

3шт.

18

86543106

ROD

1шт.

19

86562033

ROD

1шт.

20

168982

KNOB

1шт.

21

80756

COTTER PIN,1/8" x 3/4"

1шт.

22

280375

NUT,3/4"-10, GC

1шт.

23

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

28шт.

24

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

25

164086

COTTER PIN

1шт.

26

516579

BUSHING,9.75mm ID x 15.82mm OD x 7.14mm L

4шт.

27

47633701

INDICATOR

1шт.

28

88715

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

1шт.

29

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

30шт.

30

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

28шт.

31

9636698

NUT,1/2"-13, GB

2шт.

32

9626558

FLANGE NUT,Flg, 1/4"-20

1шт.

33

143224

SPRING,Extension, 1" OD x 5-7/16" L

Exterior

1шт.

34

47556007

LINER

Smooth

1шт.
