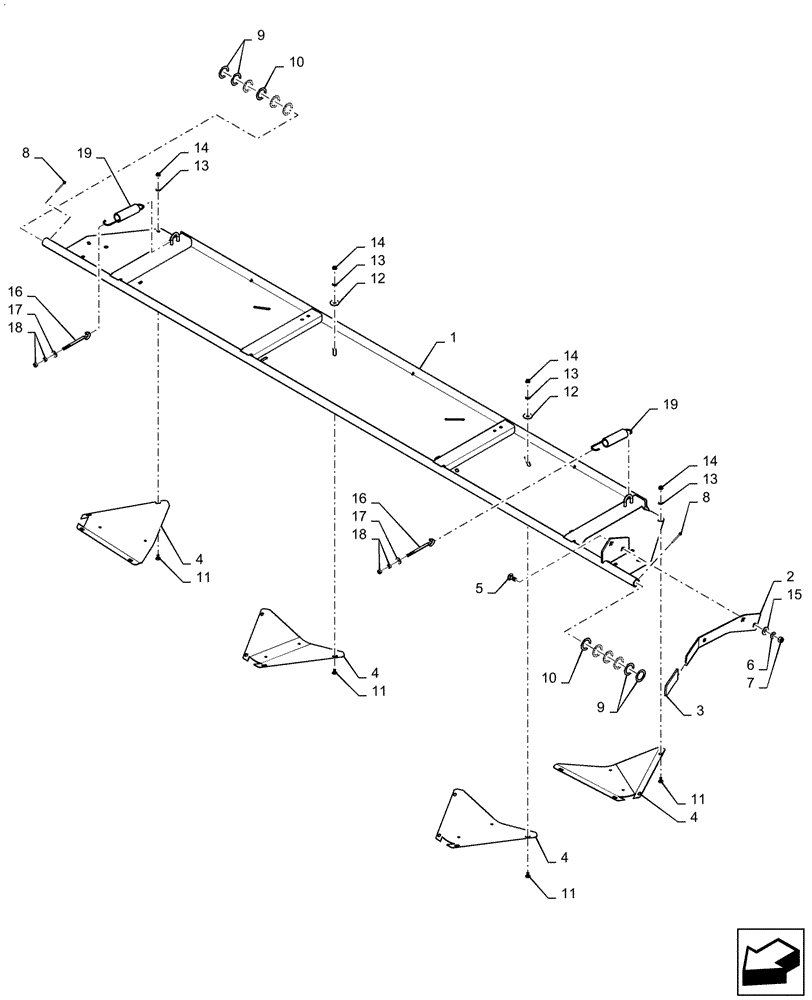

Запчасти Case IH DC133 (60.620.AH) - SWATHGATE, ASSY, FLAIL (60) - PRODUCT FEEDING

1

84349666

SWATHBOARD

Flail

1шт.

2

47473453

HANDLE

1шт.

3

698486

HANDLE GRIP

1шт.

4

47374960

WEDGE

4шт.

5

84180365

CARRIAGE BOLT

2шт.

6

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

2шт.

7

9803187

NUT,1/2"-13, G8

2шт.

8

87399

COTTER PIN,1/2 x 3 Bolt

2шт.

9

214539

WASHER,34.9mm ID x 50.8mm OD x 0.51mm Thk

4шт.

10

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

8шт.

11

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

16шт.

12

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

8шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

14

86521605

FLANGE NUT,5/16"-18, Cl 5

16шт.

15

87613265

WASHER,0.53" ID x 1.25" OD x 0.13" Thk

2шт.

16

631201

EYEBOLT

2шт.

17

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

18

9628503

NUT,3/8"-16, G5

4шт.

19

87579261

SPRING HOOK

2шт.
