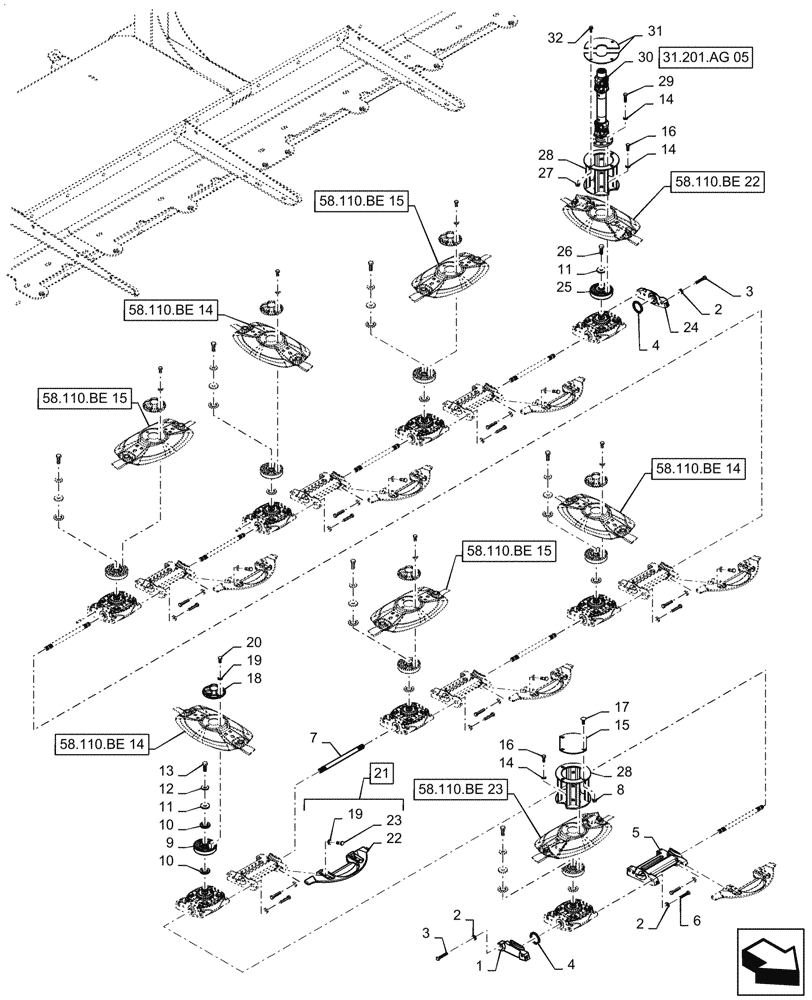

Запчасти Case IH DC133 (58.110.BE[14]) - CUTTERBAR, 8-DISC QUICK CHANGE KNIVES (58) - ATTACHMENTS/HEADERS

1

47761971

CAP

End, RH

1шт.

2

262183

WASHER

4шт.

3

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

4шт.

4

241104

O-RING,0.07" Thk x 2.489" ID, -37, Cl 5, 75 Duro

2шт.

5

47761969

SPACER

7шт.

6

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

4шт.

7

84568725

SHAFT

7шт.

8

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

9

84515519

HUB

7шт.

10

84330717

WASHER

2шт.

11

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

1шт.

12

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

1шт.

13

88706

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

1шт.

14

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

15

86631895

COVER

1шт.

16

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

17

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

18

9828165

CAP

6шт.

19

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

4шт.

20

9790143

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

4шт.

21

47623851

GUARD

Incl 19, 22 - 23

8шт.

22

47720599

GUARD

Rock

1шт.

23

47491369

BOLT

2шт.

24

47761972

CAP

End, LH

1шт.

25

84516416

HUB

1шт.

26

88685

BOLT,Hex, 5/8" x 1 1/2", Gr 8, Full Thd

1шт.

27

86521609

FLANGE NUT,Flg, 3/8"-16

4шт.

28

87040772

DRUM

2шт.

29

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

4шт.

30

84368755

PTO

Cutterbar

1шт.

31

47381316

RING

Split

2шт.

32

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

33

47378580

DISC

Rubber

2шт.
