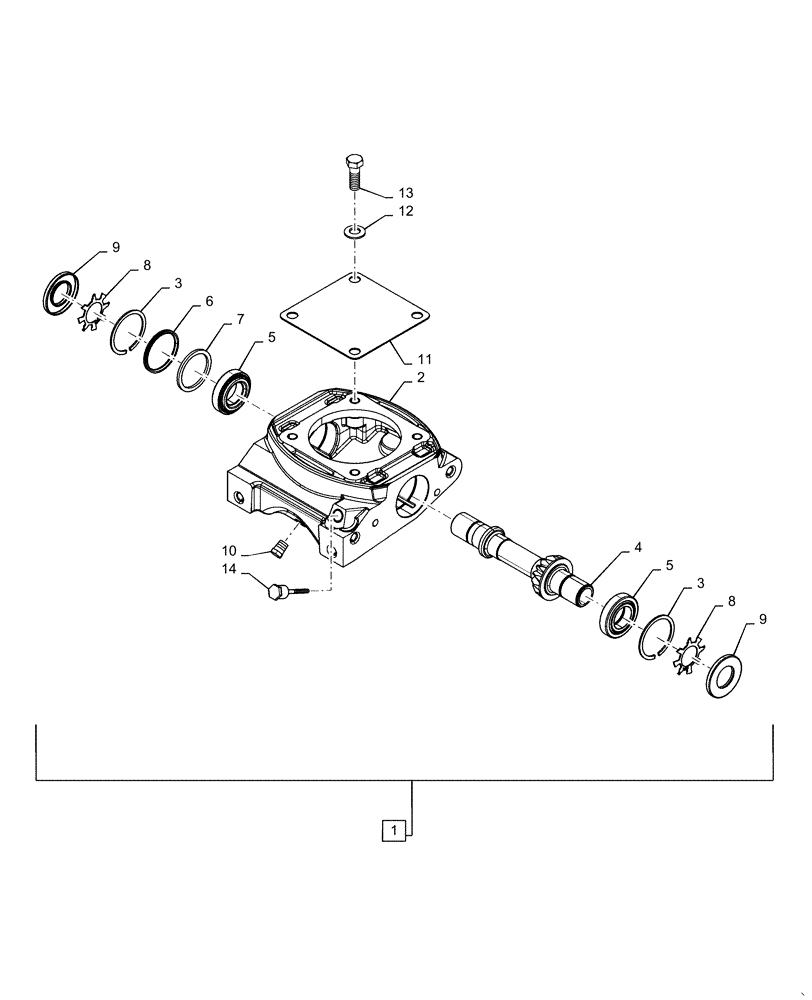

Запчасти Case IH DC133 (58.110.BE[09]) - NON-PTO DRIVEN MODULE, CW (58) - ATTACHMENTS/HEADERS

1

47581823

MODULE

CW, Incl 2 - 14

4шт.

Without Top Cap Disc Head And CP Driver Module

1шт.

10 Disc Has 4 CW. 8 Disc Has 3 CW.

1шт.

2

NSS

NOT SOLD SEPARAT

Module, Cutterbar Assy, Incl In 1

1шт.

3

86508784

SNAP RING

Retaining

2шт.

4

47699365

KIT

Pinion Shaft

1шт.

5

NSS

NOT SOLD SEPARAT

Bearing Roller, Tapered Assy, Incl In 4

2шт.

6

86524423

WASHER

1шт.

7

783467

SPACER

Adjusting

1шт.

8

86515894

SLINGER

2шт.

9

86511201

SEAL

2шт.

10

86568834

PLUG,1/4" - 18 NPT

1шт.

11

84390175

COVER

1шт.

12

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

4шт.

13

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

14

84329663

DIPSTICK

1шт.
