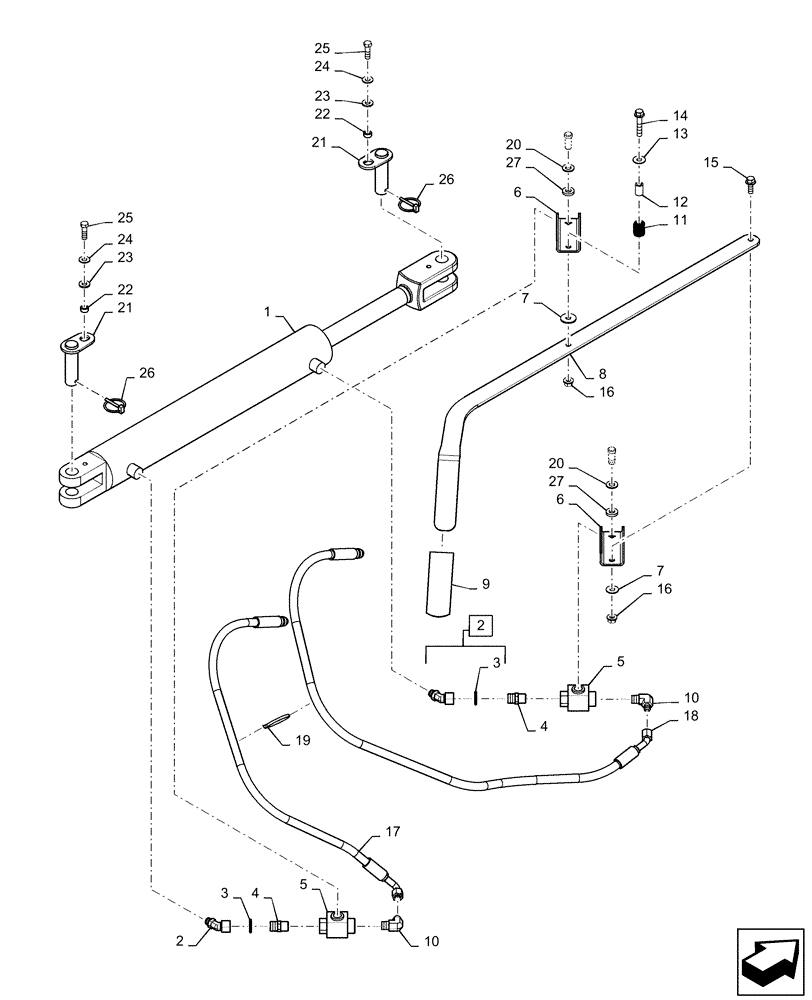

Запчасти Case IH DC133 (35.739.AA) - HYDRAULIC CYLINDER, SWING, LOCK ASSY (35) - HYDRAULIC SYSTEMS

1

47374398

HYDRAULIC CYLINDER

Swing Lock, Assy

1шт.

1a

87027949

SEAL KIT

Not Shown

1шт.

2

235675

ADAPTER

Union, Incl 3

2шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

87041527

HYD CONNECTOR,3/8" - 18 NPT x 3/8" - 18 NPT

2шт.

5

84375857

VALVE

2шт.

6

84522274

CHANNEL

2шт.

7

215588

WASHER

2шт.

8

47406521

LOCKING HANDLE

1шт.

9

698486

HANDLE GRIP

1шт.

10

235131

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

2шт.

11

47603

SPRING

1шт.

12

37836

SPACER,1" - 8 x 8"

1шт.

13

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

14

86533830

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

15

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

16

86521609

FLANGE NUT,Flg, 3/8"-16

2шт.

17

47378974

HYDRAULIC HOSE

1шт.

18

47378975

HYDRAULIC HOSE

1шт.

19

263117

CABLE TIE,292.1mm L, Nylon, Black

2шт.

20

87363

WASHER,0.47" ID x 0.92" OD x 0.07" Thk

2шт.

21

84553844

PIN

2шт.

22

103060

BUSHING,9.85mm ID x 15.95mm OD x 7.1mm Thk

2шт.

23

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

2шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

25

280165

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

2шт.

26

338968A1

PIN,4.76mm OD

2шт.

27

47600570

WASHER

2шт.
