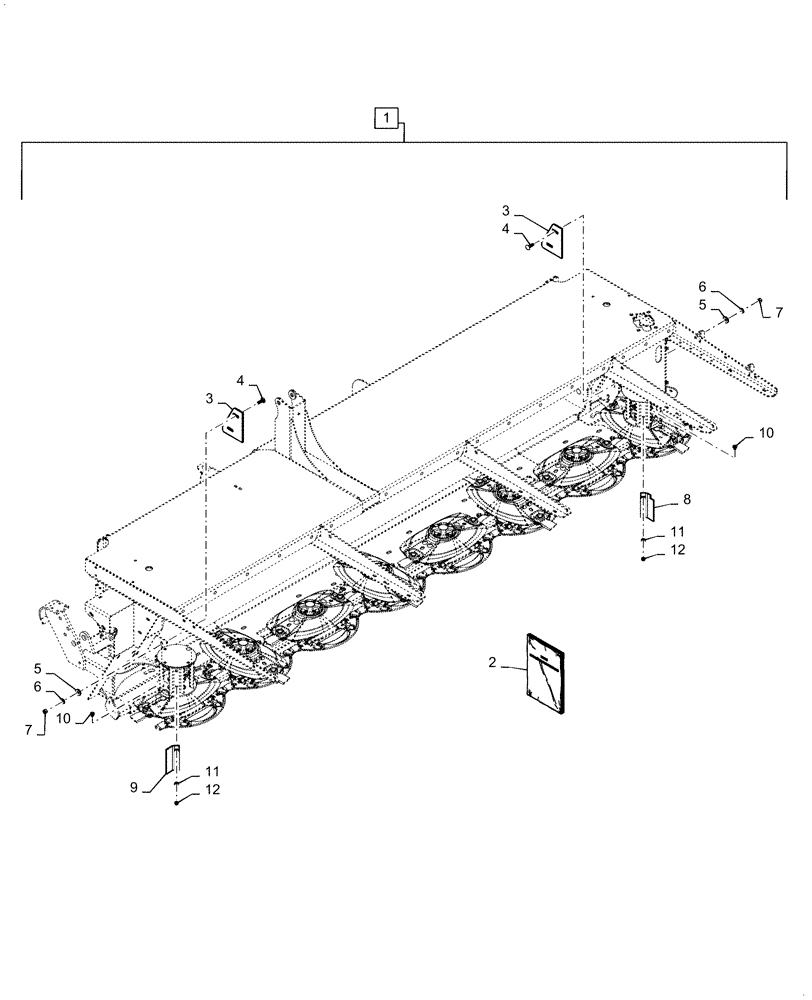

Запчасти Case IH DC133 (88.100.58[17]) - DIA KIT, DRUM PADDLE (88) - ACCESSORIES

1

47916283

KIT

Drum Paddle, Incl 2 - 12

1шт.

2

47936677

INSTRUCTION

Drum Paddle

1шт.

3

47916217

STRIPPER

Narrow

2шт.

4

280833

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G8

4шт.

5

86541779

WASHER,0.53" ID x 1.31" OD x 0.24" Thk

4шт.

6

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

4шт.

7

9803187

NUT,1/2"-13, G8

4шт.

8

47683689

PADDLE

Notched, CW

4шт.

9

87047557

PADDLE

CCW

4шт.

10

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

16шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

16шт.

12

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

16шт.
