(88.100.58[14]) - DIA KIT, QUICK CHANGE, 1-DISC, WITH LIFTER

Запчасти Case IH DC133 (88.100.58[14]) - DIA KIT, QUICK CHANGE, 1-DISC, WITH LIFTER (88) - ACCESSORIES

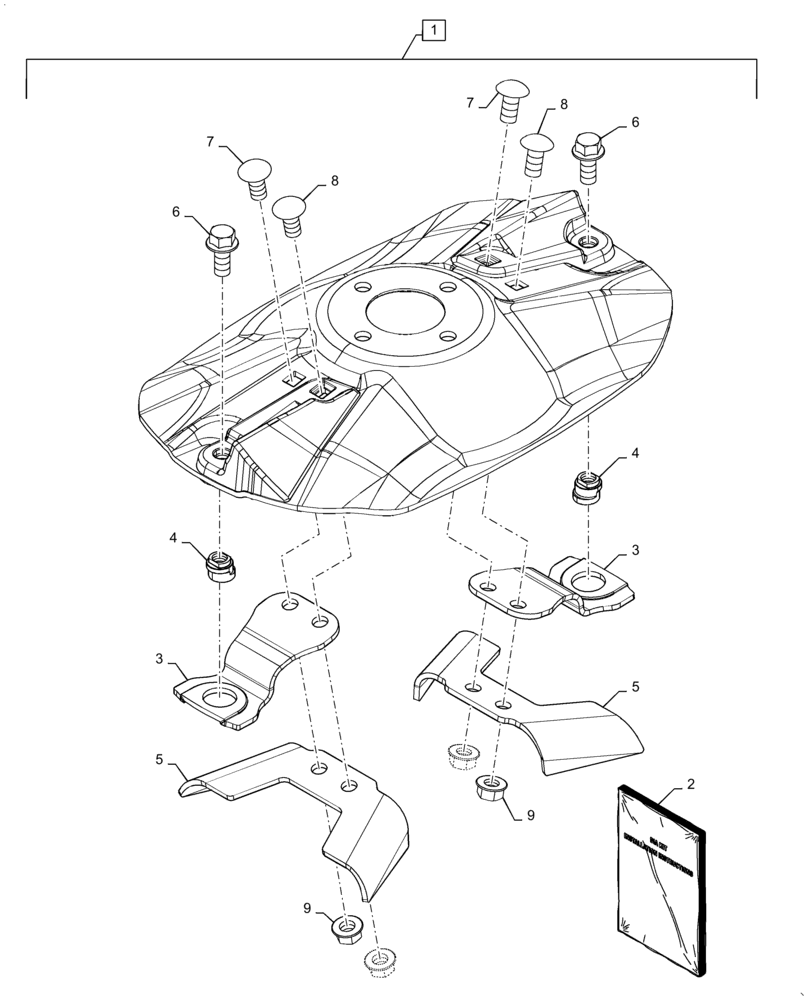

Схема запчастей Case IH DC133 - (88.100.58[14]) - DIA KIT, QUICK CHANGE, 1-DISC, WITH LIFTER (88) - ACCESSORIES
7
5
4
8
4
6
3
9
3
7
5
1
8
2
9
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47550893

KIT

Quick Change Knife, 1-Disc, w/Lifter, Incl 2 - 9

1шт.

2

47798803

INSTRUCTION

Quick Change Knife, w/Lifter

1шт.

3

84276323

PLATE

Spring, Big Disc

2шт.

4

47419996

NUT

Nut

2шт.

5

47548169

SCRAPER

Mud Coated, Quick Change

2шт.

6

87040886

BOLT

2шт.

7

47721980

BOLT,Carriage, 1/2" - 13 x 1-1/2", Full Thd, Gr 8

2шт.

8

47721950

BOLT,Carriage, 1/2" - 13 x 1-1/8", Full Thd, Gr 8

2шт.

9

86544265

FLANGE NUT,Flg, 1/2"-13, G8

4шт.
