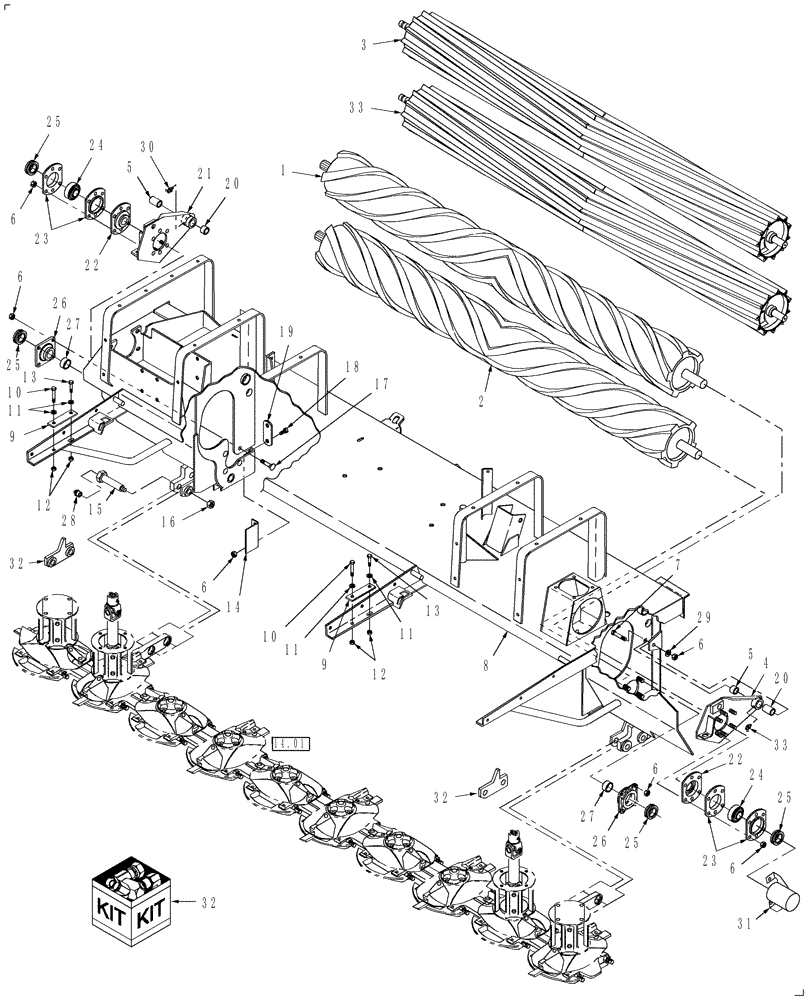

Запчасти Case IH DC132 (15.02[02]) - CONDITIONING ROLLS, CHEVRON, MY2010 (15) - CROP CONDITIONING

1

87489875

ROLL

Chevron Rubber, Upper

1шт.

1

84392692

ROLL,263.5mm OD x 2798.24mm L

Chevron Rubber Upper, Start Year: 01-MAR-11

1шт.

1

84392692R

REMAN-ROLLER

Chevron Rubber Upper, Start Year: 01-MAR-11

1шт.

1

84392692C

CORE-ROLLER

Return Number

1шт.

2

87490270

ROLL

Chevron, Rubber, Lower

1шт.

2

84392701

ROLL

Rubber, Lower, Start Year: 01-MAR-11

1шт.

2

84392701R

REMAN-ROLLER

Rubber, Lower, Start Year: 01-MAR-11

1шт.

2

84392701C

CORE-ROLLER

Return Number

1шт.

3

84294055

ROLL

Steel, Chevron, Upper

2шт.

4

87056485

ARM ASSY.

Roll, LH, Includes: Ref. 5

1шт.

5

86540342

BUSHING,30.15mm ID x 36.41mm OD x 19.05mm L

4шт.

6

86521607

FLANGE NUT,Flg, 1/2"-13, G5

24шт.

7

280818

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

2шт.

8

86629885

FRAME ASSY

Header

1шт.

9

849495

RUBBER PAD

4шт.

10

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

4шт.

11

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

8шт.

12

9823743

FLANGE NUT,Flg, 5/16"-18

8шт.

13

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

14

87549208

ANGLE

1шт.

15

86571960

BOLT

Cutterbar Mounting

4шт.

15

87721979

BOLT

Cutterbar Mounting, Start Year: 01-JUL-09, Start Serial: Y9N083777

4шт.

16

86557260

SPECIAL NUT

Special, Lock, 3/4"-10

4шт.

17

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

1шт.

18

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

19

48324

PLATE

Upper

1шт.

20

9849929

SPACER

2шт.

21

87055307

ARM

Roll, RH, Includes: Ref. 5

1шт.

22

86633047

SHROUD

2шт.

23

86629969

FLANGE

4шт.

24

86575514

BALL BEARING,34.92mm ID x 80mm OD x 24.3mm W

2шт.

25

45393

COLLAR

4шт.

26

86573043

BEARING ASSY

2шт.

27

86573045

SPACER,34.6mm ID x 75.6mm OD x 33.8mm L

2шт.

28

87414

LUBE NIPPLE,1/4" - 28

4шт.

29

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

2шт.

30

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

2шт.

31

86607882

TUBE,115 mm L

2шт.

ONLY Used With Steel Rolls. Attaches With Existing Hardware

1шт.

32

86565127

KIT

Cutterbar Support, Includes: (1) LH Support & (1) RH Support

1шт.

33

84294053

ROLL

Steel, Chevron, Lower

1шт.
