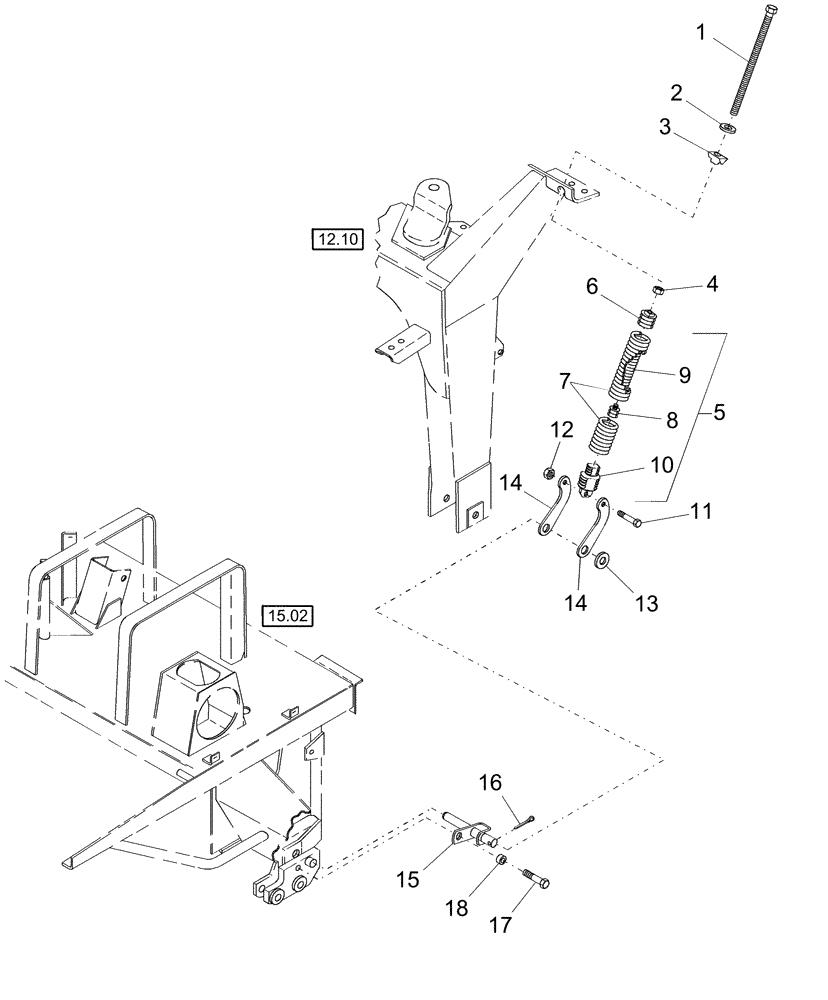

Запчасти Case IH DC132 (14.08) - HEADER SPRINGS (14) - CROP CUTTING

1

86524072

THREADED ROD

2шт.

2

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Hardened, 5/8"

2шт.

3

694420

PIVOT

Spring

2шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

5

86524022

SPRING

Includes: Ref. 6 - 10

2шт.

6

621922

SPRING NUT

Spring, Outer

2шт.

7

86511080

SPRING

2шт.

8

621920

SPRING NUT

Spring, Inner

2шт.

9

86511081

SPRING

2шт.

10

86516325

SPRING NUT

Spring, Bottom

2шт.

11

88556

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 5

2шт.

12

86521611

FLANGE NUT,Flg, 5/8"-11

2шт.

13

27373

WASHER,29.37mm ID x 50.8mm OD x 3.17mm Thk

2шт.

14

86629713

CONNECTING LINK

4шт.

15

86522799

PIN

2шт.

16

88182

COTTER PIN,1/4" OD x 2" L

2шт.

17

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

18

167381

SPACER

2шт.
