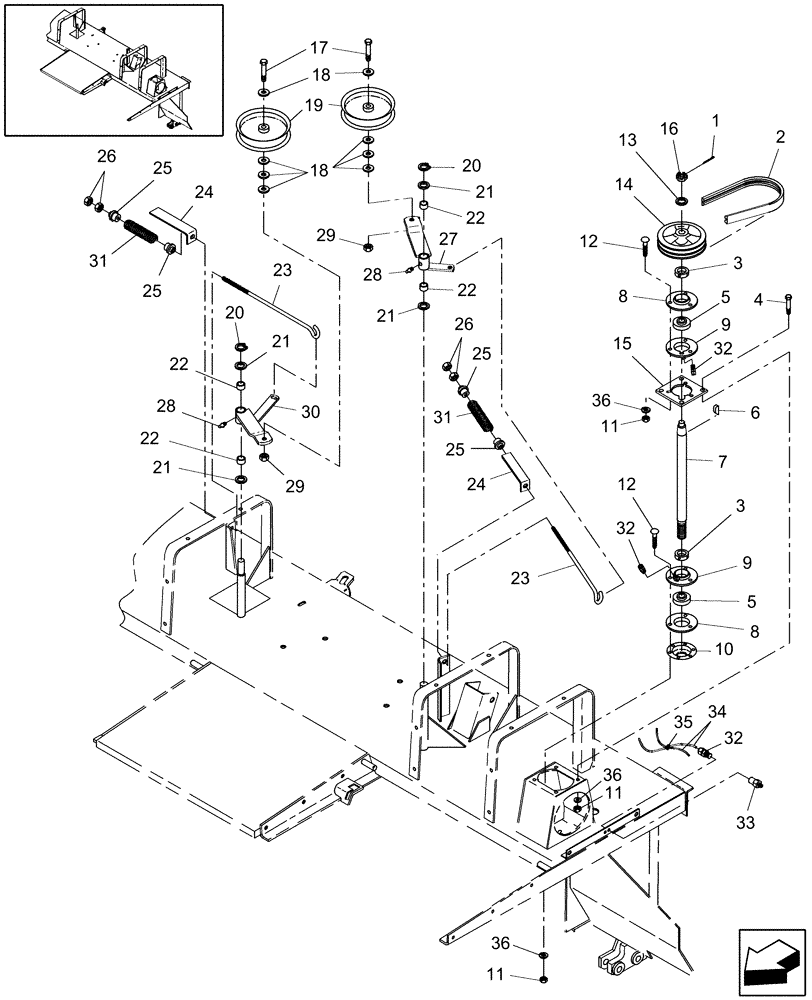

Запчасти Case IH DC132 (14.06) - HEADER DRIVE, LEFT SIDE (14) - CROP CUTTING

1

86523955

COTTER PIN,1/8" x 2"

1шт.

2

86627796

V-BELT,0.66" W x 147.00" L, 2 Ribs

1шт.

3

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

2шт.

4

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

5

163641

BALL BEARING,34.92mm ID x 72mm OD x 19mm W

2шт.

6

87122

WOODRUFF KEY,#128, 5/16" x 2 1/8"

1шт.

7

86589486

SHAFT

1шт.

8

86537486

FLANGE,Bearing

2шт.

9

86590795

FLANGE

Includes: Adapter

2шт.

9a

86580291

ADAPTER,1/8" - 27 x 1/4" - 28

Straight

2шт.

10

86633054

SHIELD

Upper Roll

1шт.

11

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

10шт.

12

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

6шт.

13

672

WASHER

1-1/8"

1шт.

14

86566593

PULLEY

1шт.

15

86632288

PLATE

1шт.

16

49027

SLOTTED NUT

Slotted, G2, 1"-20

1шт.

17

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

2шт.

18

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

19

86588003

IDLER,51.6mm W x 228.6mm OD

2шт.

20

197297

SNAP RING,#98, Ext

2шт.

21

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

4шт.

22

27767

BUSHING

4шт.

23

86535390

EYEBOLT

3/8"-16 x 20-1/4"

2шт.

24

86632286

GUIDE

2шт.

25

86535388

SPACER

4шт.

26

9628503

NUT,3/8"-16, G5

4шт.

27

86632287

ARM

Includes Ref. 22

1шт.

28

87414

LUBE NIPPLE,1/4" - 28

2шт.

29

86521608

FLANGE NUT,Flg, 5/8"-11, G5

2шт.

30

86632285

ARM

1шт.

31

621022

SPRING

Compression

2шт.

32

11787

FITTING,3/8"-24 Fem x 1/8" NPT

Includes: 13362 Sleeve & 13367 Nut

4шт.

33

86050275

LUBE NIPPLE

Fitting, Self-Tapping, Internal Thread, 1/8"

2шт.

34

9846836

PLASTIC-RUBBER TUBE,3.58mm ID x 1000mm L

3/16" x 39.3" -, Serial Range: Cut-Fit

1шт.

35

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

36

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.
