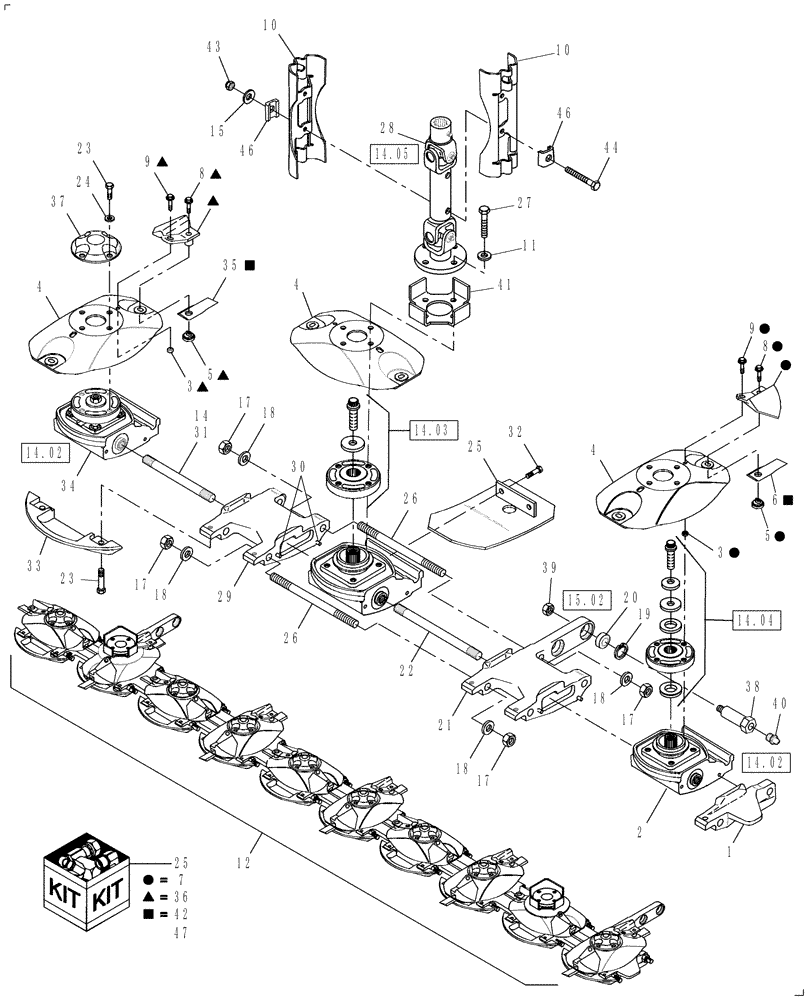

Запчасти Case IH DC132 (14.01) - CUTTERBAR (14) - CROP CUTTING

1

86629690

ARM

Cap, End, RH, Includes Ref. 30(2)

1шт.

1

86629691

ARM

LH, Includes, Includes Ref. 30(2)

1шт.

2

0C

ORDER COMPONENTS

Module, Control, CW

5шт.

3

86544265

FLANGE NUT,Flg, 1/2"-13, G8

20шт.

4

87646406

DISC

10шт.

5

87725066

NUT

Knife

20шт.

6

9847683

BLADE,Knife CW

CW, 7 ° Twist

10шт.

6

86621872

BLADE

CW, 14° Twist

10шт.

Standard Equipment.

1шт.

6

87029587

BLADE

CW, 14° Twist, Over-serrated

10шт.

6

86532078

KNIFE

V

20шт.

7

87528245

KIT

Lifter, CW, Includes: (2) Lifters, Hardware, & Instructions

5шт.

8

86515925

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

20шт.

9

86515926

FLANGE BOLT,Hex, 1/2" - 13 x 1.75", Gr 8

20шт.

10

84260963

KIT

Tall Drum, Inc: 15, 43, 44 & 46

2шт.

Drum Halves and Reinforcements Are NSS

1шт.

10

84469547

KIT

Tabbed Tall Drum, Inc: 15, 43, 44 & 46

2шт.

Replaces 84260963, Drum Halves NSS

1шт.

11

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

(33/64" ID x 1" OD x .135" Thk)

8шт.

12

87674849

CUTTERBAR

1шт.

Does Not Include Ref. 10, 19, 28, 38, 39 or 40

1шт.

14

9861804DS

GREASE

14 oz. Cartridge, For Use on Shaft, Ref. 31

1шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

17

86518194

NUT,3/4"-10, G8

40шт.

18

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

40шт.

19

271429

SNAP RING,1.625", Int, #162

4шт.

20

87659928

BUSHING,25.4mm ID x 36.5mm OD x 22.23mm L

Spherical

4шт.

21

87057898

ARM ASSY.

LH, Includes Ref. 30(4)

1шт.

Refer to Conditioner Rolls for mounting hardware

1шт.

21

87057901

ARM ASSY.

RH, Includes Ref. 30(4)

1шт.

Refer to Conditioner Rolls for mounting hardware

1шт.

22

86519039

SHAFT

268mm

2шт.

23

9790143

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

52шт.

24

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

32шт.

25

87047426

SKID/SHOE

10шт.

25

84141953

SKID/SHOE

HD HT, For Abrasive Soil Conditions

10шт.

25

87622885

SHOE

Skid, High Stubble

10шт.

25

715289026

DIA KIT, HARVESTER

Skid, High Stubble, Includes: (8) Ref. 25, 87622885 High Skidshoes, & Instructions

1шт.

26

86501934

THREADED ROD

12.2" L

20шт.

27

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

8шт.

28

86565923

SHAFT

Drive

2шт.

29

87044107

SPACER

Includes: Ref. 30(4)

7шт.

30

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

Heat-Treated, 3/8" x 3/4"

40шт.

31

86519042

SHAFT

248mm

7шт.

32

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

20шт.

33

87047845

STONEGUARD

10шт.

34

0C

ORDER COMPONENTS

Module, Control, CCW

5шт.

35

9847684

BLADE,Knife CCW

CCW, 7° Twist

10шт.

35

86621873

BLADE

CCW, 14° Twist

10шт.

Standard Equipment.

1шт.

35

87029588

BLADE

CCW, 14° Twist, Over-serrated

10шт.

35

86532078

KNIFE

V

20шт.

36

87528249

KIT

Lifter, CCW, Includes: (2) Lifters, Hardware & Instructions

5шт.

37

87581143

CAP

See Fig. 14.03

8шт.

38

86571960

BOLT

Cutterbar Mounting

4шт.

38

87721979

BOLT

Cutterbar Mounting, Start Year: 01-JUL-09, Start Serial: Y9N083777

4шт.

39

86557260

SPECIAL NUT

Special, Lock, 3/4"-10

4шт.

40

87414

LUBE NIPPLE,1/4" - 28

4шт.

41

86629689

DISC

2шт.

42

86624751

KNIFE SET

Includes: (10) 14° CW Blades, Ref 6 & (10) 14° CCW Blades, Ref 35

1шт.

42

86624752

KNIFE SET

Includes: (16) 14° CW Blades, Ref 6 & (16) 14° CCW Blades, Ref 35

1шт.

42

87037027

SET OF BLADES

Includes: 87029587 (16) & 87029588 (16)

1шт.

43

86521609

FLANGE NUT,Flg, 3/8"-16

8шт.

44

280464

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 8

4шт.

46

NSS

NOT SOLD SEPARAT

Reinforcements

8шт.

47

87602273

REPAIR KIT

Shock Retrofit

1шт.

Contains parts to retrofit two discs.

1шт.
