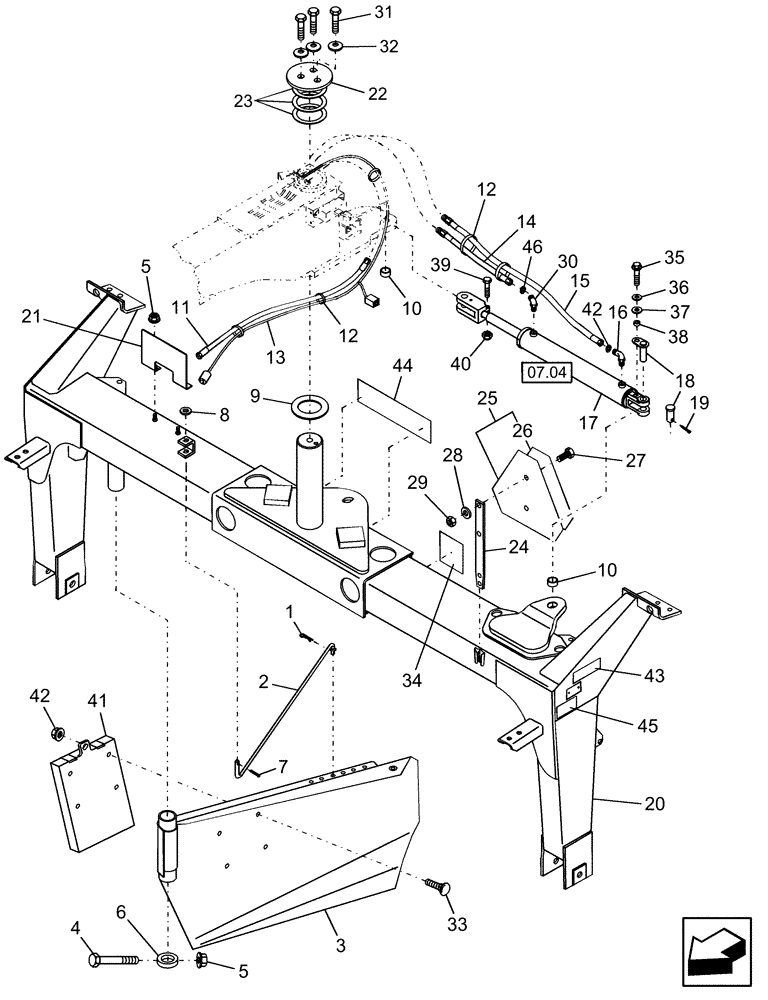

Запчасти Case IH DC132 (12.12) - TRAILFRAME, REAR (12) - MAIN FRAME

1

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

Hair

2шт.

2

86506511

ADJUSTMENT ROD

2шт.

3

86627018

SHIELD

RH, shown

1шт.

3

86627020

SHIELD

LH

1шт.

4

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

2шт.

5

86521609

FLANGE NUT,Flg, 3/8"-16

4шт.

6

86545693

COLLAR

2шт.

7

394818

COTTER PIN,M5 x 25

2шт.

8

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

9

86510727

WASHER

Nylon, 210 mm o.d.

1шт.

10

787219

SLEEVE

Cylinder Mount, (Part Of Trailframe)

2шт.

11

86539892

HOSE,9.65 mm ID x 1003.3 mm

1шт.

12

14560287

CABLE TIE,207.00mm L

COLLAR

3шт.

13

86560194

WIRE HARNESS

Lights

1шт.

14

86539890

HOSE

1шт.

15

86539891

HOSE

1шт.

16

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 46

2шт.

17

87515542

CYLINDER,Double Acting, 38.1mm Rod, 484.38mm Stroke

Swing

1шт.

87515542R

REMAN-HYD CYLINDER

DC132 (9/08-)

1шт.

87515542C

CORE-HYD CYLINDER

Return Number

1шт.

18

86603686

PIN,25.4mm OD x 90mm L

Clevis, W/ Tab

2шт.

20

87055692

FRAME ASSY

Trail, Includes: Ref. 34, 43 & 45

1шт.

21

86574272

ANGLE

1шт.

MY2010

1шт.

22

86627704

PLATE

3 Holes

1шт.

23

86510725

WASHER

1шт.

24

86535159

ARM

SMV, Spade

1шт.

25

86547710

EMBLEM

KIT SMV, Includes: Ref. 26

1шт.

26

86547711

DECAL,SMV

SMV

1шт.

27

84821

SCREW,Truss HD, #10 - 24 x 1/2"

2шт.

28

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

2шт.

29

87304

NUT,#10-24

2шт.

30

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Includes Ref. 46

1шт.

31

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

3шт.

32

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

3шт.

33

88715

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

4шт.

34

86624775

WARNING DECAL

Set Machine To Clear Obstructions, English

1шт.

35

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

36

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

37

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

2шт.

38

103060

BUSHING,9.85mm ID x 15.95mm OD x 7.1mm Thk

2шт.

39

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

1шт.

40

88902

NUT,3/8"-16

1шт.

41

86613674

CASE

Manual

1шт.

42

9626558

FLANGE NUT,Flg, 1/4"-20

4шт.

43

86547782

REFLECTOR,YELLOW

Yellow Retro Reflective

2шт.

44

87622972

DECAL

CASE IH

1шт.

45

86624774

DANGER DECAL

Header May Fall Rapidly (Left Side Shown)

2шт.

45

86625174

DANGER DECAL

DANGER, French

2шт.

46

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
