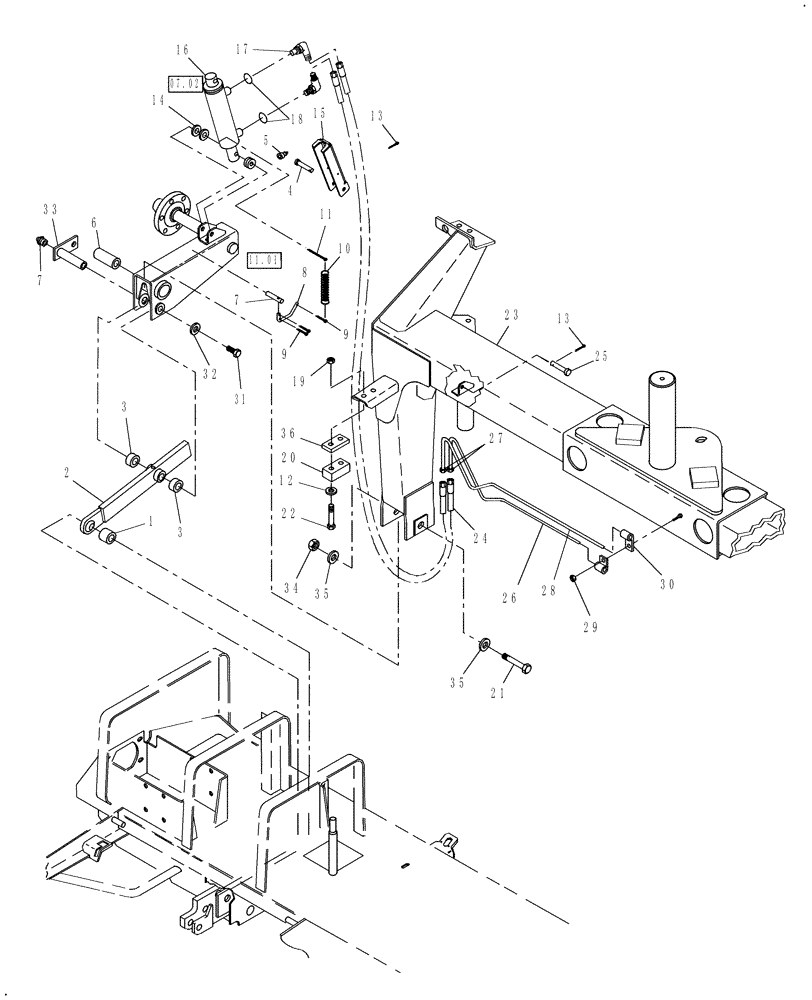

Запчасти Case IH DC132 (12.10) - TRAILFRAME, RH (12) - MAIN FRAME

1

86603645

SPACER

1шт.

2

86632233

LIFT ARM

Includes: Ref. 3

1шт.

3

9611935

BUSHING,31.83mm ID x 39.115mm OD x 26.92mm L

2шт.

4

87061043

PIN

1шт.

5

216328

BUMPER

1шт.

6

86632243

SPACER

1шт.

7

87414

LUBE NIPPLE,1/4" - 28

1шт.

8

87618910

LATCH

1шт.

9

80756

COTTER PIN,1/8" x 3/4"

3шт.

10

86539129

SPRING

1шт.

11

87400

COTTER PIN,3/16" x 2"

1шт.

12

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

13

80753

COTTER PIN,1/4" x 1 1/2"

1шт.

14

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

5шт.

15

87061353

STOP

1шт.

16

87018067

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 254mm Stroke

Master, Monarch

1шт.

Cylinder head will protrude beyond end of barrel

1шт.

17

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 18

2шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

19

86521610

FLANGE NUT,Flg, 1/2"-13

2шт.

20

86519305

BUMPER

1шт.

21

86534764

BOLT,Hex, 1" - 8 x 8", Gr 8

1шт.

22

86521617

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

23

87055692

FRAME ASSY

Trail, Includes: Decals

1шт.

24

86539889

HOSE

2шт.

25

86529064

PIN

1шт.

26

86539896

HYD TUBE,12.70 mm OD

Includes: Ref. 27

1шт.

27

235671

SLEEVE,37 Degree, 1/2" Tube

2шт.

27

129428

TUBE NUT,37 Degree, 3/4"-16, Type B

2шт.

28

86539895

HYD TUBE,12.70 mm OD

Includes: Ref. 27

1шт.

29

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

30

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

31

281074

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

1шт.

32

86516694

WASHER

1шт.

33

86632239

PIN,31.75mm OD x 125.5mm L

1шт.

34

9849633

NUT,1"-8, G5

1шт.

35

25769

WASHER,25.8mm ID x 49.21mm OD x 3.17mm Thk

2шт.

36

84154208

SPACER

Plate

1шт.
