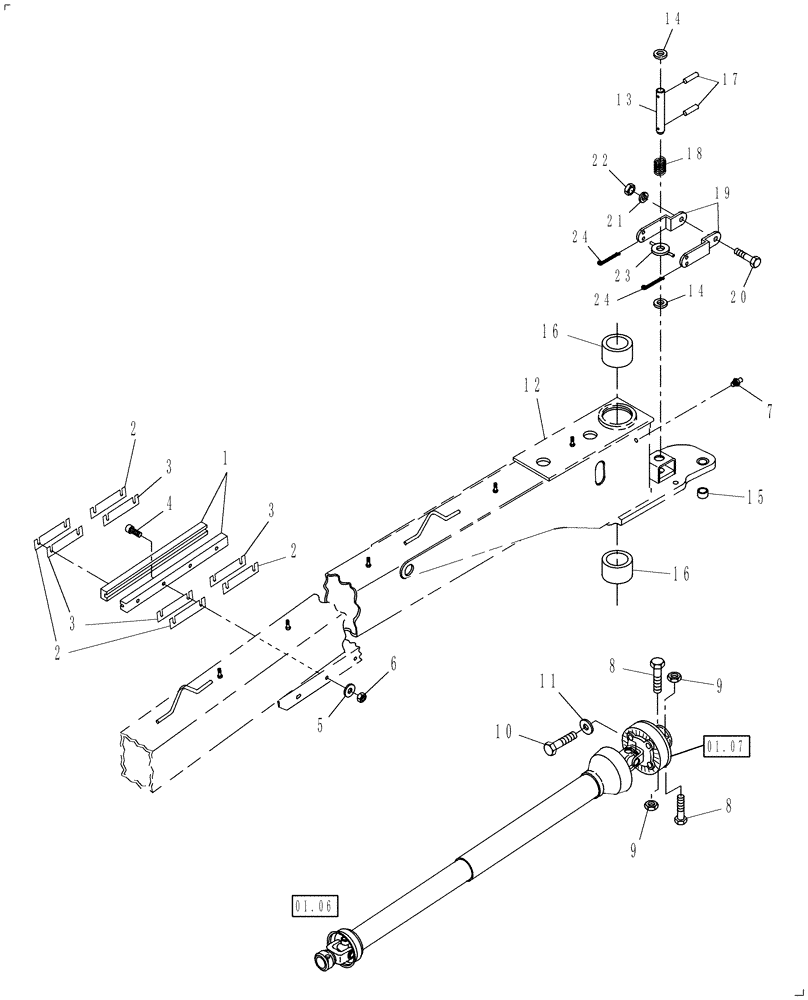

Запчасти Case IH DC132 (12.06) - STANDARD TONGUE, REAR (12) - MAIN FRAME

1

87676553

CHANNEL

Plastic

2шт.

2

58639

SHIM

1шт.

3

64612

SHIM,0.012" Thk

1шт.

4

87032817

BOLT

Cap, HSH, 5/16" x 1"

8шт.

5

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

8шт.

6

280736

NUT,5/16"-18, GC

8шт.

7

87414

LUBE NIPPLE,1/4" - 28

1шт.

8

9818286

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

2шт.

Component of PTO.

1шт.

9

88871

NUT,1/2"-13, GC

2шт.

Component of PTO.

1шт.

10

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

1шт.

Component of PTO.

1шт.

11

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

Component of PTO.

1шт.

12

86572845

TONGUE

Includes: Ref. 15,16 & Decals

1шт.

13

86627559

PIN

2шт.

14

142656

WASHER,33.35mm ID x 47.63mm OD x 3.43mm Thk

1шт.

15

787219

SLEEVE

Cylinder Mount

1шт.

16

86515632

DRIVE BUSHING,102.13mm ID x 114.25mm OD x 76.2mm L

4" (102mm) ID

2шт.

17

87343

LOCK PIN,6.35mm OD x 44.45mm L, Slotted

2шт.

18

35324

SPRING

1шт.

19

690605

HANDLE

2шт.

20

86521551

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

21

80681

LOCK WASHER,5/16"

1шт.

22

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

23

86618985

ROD

1шт.

24

87394

COTTER PIN,1/8" x 1/2"

2шт.
