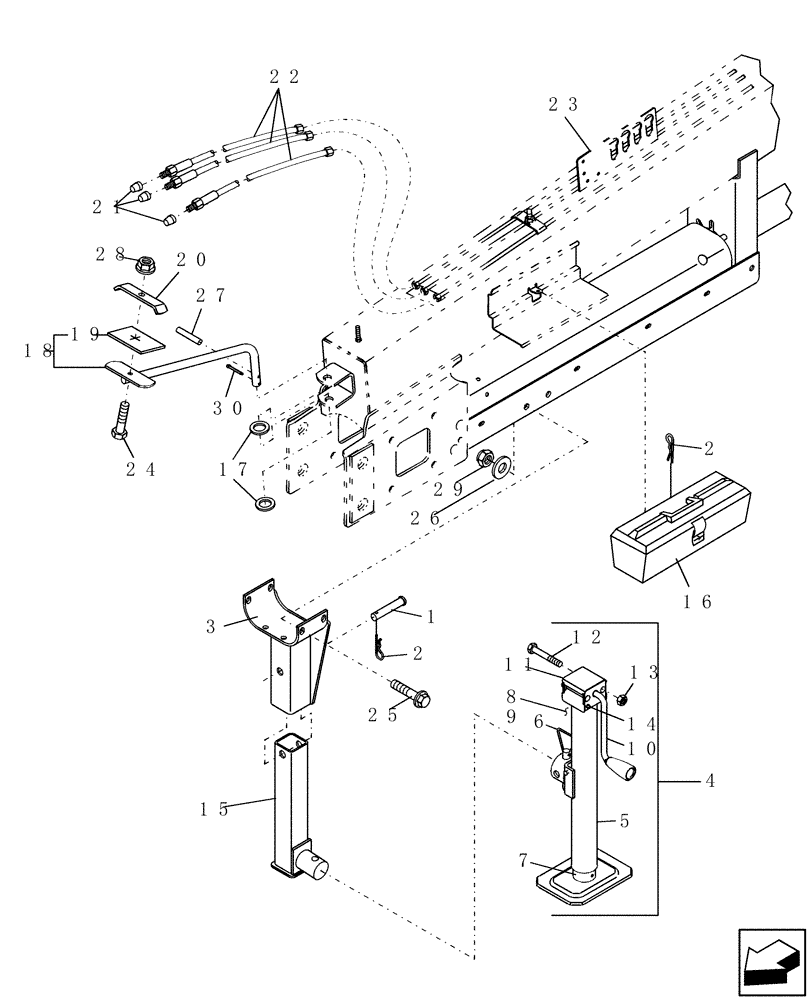

Запчасти Case IH DC132 (12.03) - DRAWBAR HITCH, JACK, & TOOL BOX (12) - MAIN FRAME

1

86510381

PIN

2шт.

2

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

Hair

1шт.

3

86633664

SUPPORT ASSY.

1шт.

4

86617866

JACK

1шт.

5

NSS

NOT SOLD SEPARAT

Tube, Outer

1шт.

6

86590810

KIT

Pin & Chain

1шт.

7

NSS

NOT SOLD SEPARAT

Tube, Inner

1шт.

8

86590811

KIT

Gear

1шт.

9

86592468

BEARING ASSY,0.505" ID x 1" OD x 0.344"

Bearing

1шт.

10

86590812

KIT

Crank

1шт.

11

86590816

COVER

Gearbox

1шт.

12

280961

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3", Gr 5

1шт.

13

425-104

NUT,1/4"-20, Cl 5

1шт.

14

219-14

LUBE NIPPLE,1/4" NPTF

1шт.

15

86629700

TUBE

1шт.

16

5135060

TOOL BOX

1шт.

17

9706679

WASHER,0.8" ID x 1.25" OD x 0.14" Thk

2шт.

18

87029372

SUPPORT ASSY.

1шт.

19

853891

TAPE

Tape, Black Vinyl Foam, Serial Range: cut-fit

1шт.

20

86571694

CLAMP

1шт.

21

116070

CAP

3шт.

22

86549016

HOSE,9.65 mm ID x 1727.2 mm

3шт.

23

86564683

SUPPORT

(Welding Required)

1шт.

24

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

25

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

6шт.

26

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

6шт.

27

435-1620

GROOVED PIN,3/16" x 1 1/4", Type A

1шт.

28

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

29

9636698

NUT,1/2"-13, GB

6шт.

30

432-1220

COTTER PIN,3/16" x 1 1/4"

1шт.
