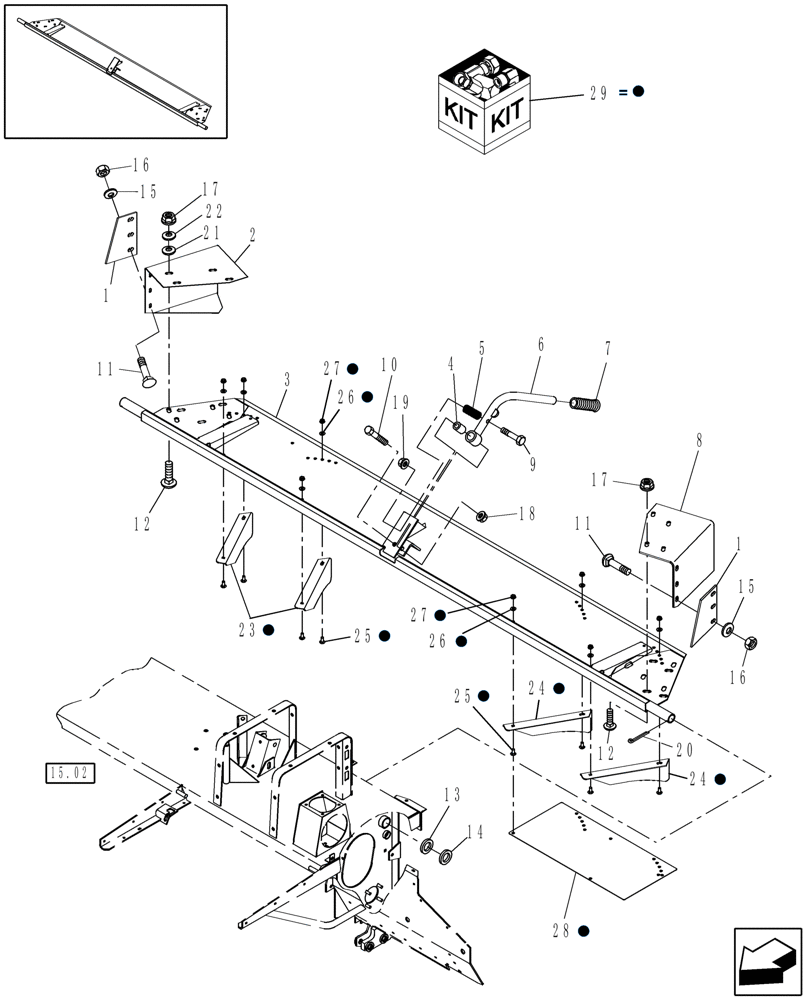

Запчасти Case IH DC132 (08.05) - SWATHGATE (08) - SHEET METAL

1

86506232

DEFLECTOR

2шт.

2

86632290

DEFLECTOR

RH

1шт.

3

86639650

GATE ASSY

1шт.

4

285505

SPACER

1шт.

5

86628837

SPRING,Compression, 23mm OD x 57.15mm L

1шт.

6

86639636

HANDLE

1шт.

7

185350

HANDLE GRIP

1шт.

8

86632291

DEFLECTOR

LH

1шт.

9

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1шт.

10

86521618

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

11

88832

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

12

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

13

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

4/ARшт.

14

214539

WASHER,34.9mm ID x 50.8mm OD x 0.51mm Thk

4/ARшт.

15

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

6шт.

16

9626558

FLANGE NUT,Flg, 1/4"-20

6шт.

17

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.

18

86521607

FLANGE NUT,Flg, 1/2"-13, G5

1шт.

19

86521610

FLANGE NUT,Flg, 1/2"-13

1шт.

20

87399

COTTER PIN,1/2 x 3 Bolt

2шт.

21

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

8шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

23

86606982

FIN

RH

2шт.

24

86606983

FIN

LH

2шт.

25

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

8шт.

26

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

27

86521605

FLANGE NUT,5/16"-18, Cl 5

8шт.

28

NSS

NOT SOLD SEPARAT

Template

1шт.

29

84267895

KIT

Swathgate Fins, Includes Instructions

1шт.

29a

84268339

OPERATOR MANUAL DA

1шт.

29b

86606982

FIN

2шт.

29c

86606983

FIN

2шт.

29d

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

29e

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

8шт.

29f

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

29g

84268235

DECAL

1шт.
