Запчасти Case IH DC132 (07.04) - HYDRAULIC CYLINDER COMPONENTS - SWING (07) - HYDRAULICS

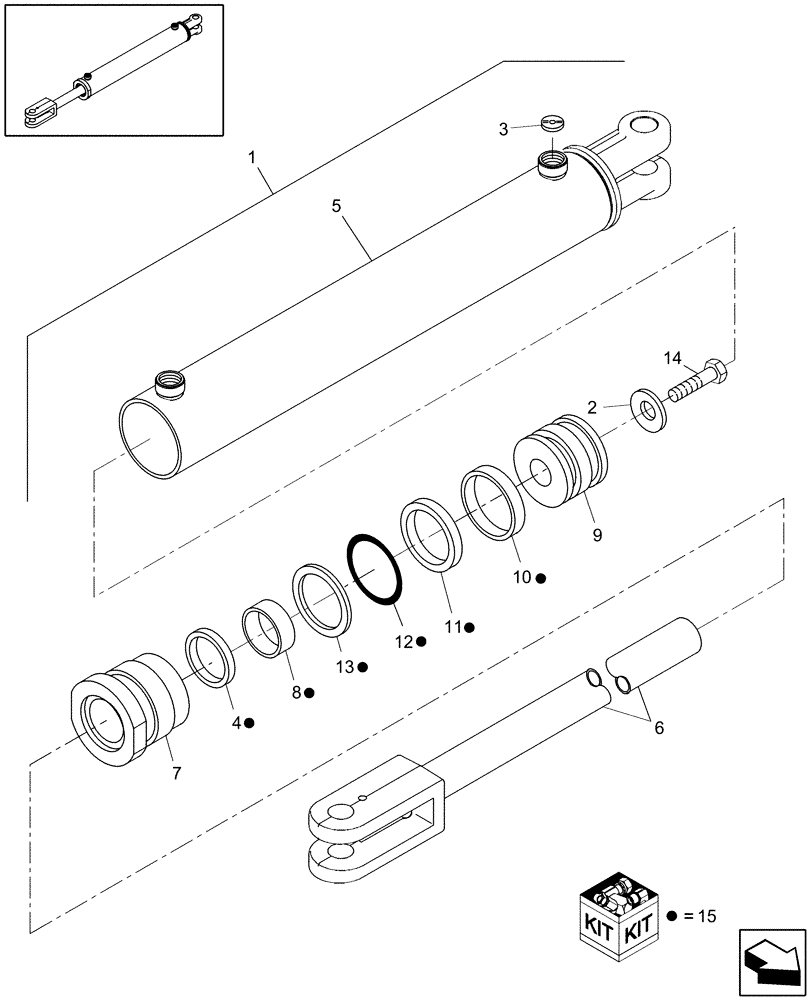

Схема запчастей Case IH DC132 - (07.04) - HYDRAULIC CYLINDER COMPONENTS - SWING (07) - HYDRAULICS
16
11
16
6
5
1
16
3
7
10
13
16
8
15
16
12
14
4
9
16
2

Артикул

Название

Примечание

Количество

1

87515542

CYLINDER,Double Acting, 38.1mm Rod, 484.38mm Stroke

Monarch

1шт.

87515542R

REMAN-HYD CYLINDER

DC132 (9/08-)

1шт.

87515542C

CORE-HYD CYLINDER

Return Number

1шт.

2

9803749

WASHER

Hardened

1шт.

3

285636

ORIFICE

1шт.

4

511979

SEAL,38.1mm ID x 51mm OD x 6.35mm Thk

1шт.

5

NSS

NOT SOLD SEPARAT

Barrel

1шт.

6

87027945

PISTON ROD

Female Threaded End

1шт.

7

87027938

HEAD

1шт.

8

592955

FUSE

1шт.

9

87027471

PISTON

1шт.

10

771714

RING

Wear, 2.876" ID x .50" Thk

1шт.

11

86595542

SEAL

1шт.

12

270192

O-RING,0.21" Thk x 2.725" ID, -335, Cl 5, 75 Duro

1шт.

13

86609324

SEALING WASHER

SEAL WASHER Back-up, Urethane

1шт.

14

86979387

BOLT,Hex, 1" - 8 x 3 1/2", Gr 8

1шт.

15

87027949

SEAL KIT

Includes: (1) Ref. 4, 8, & 10 - 13

1шт.

Выбрано товаров: 17
