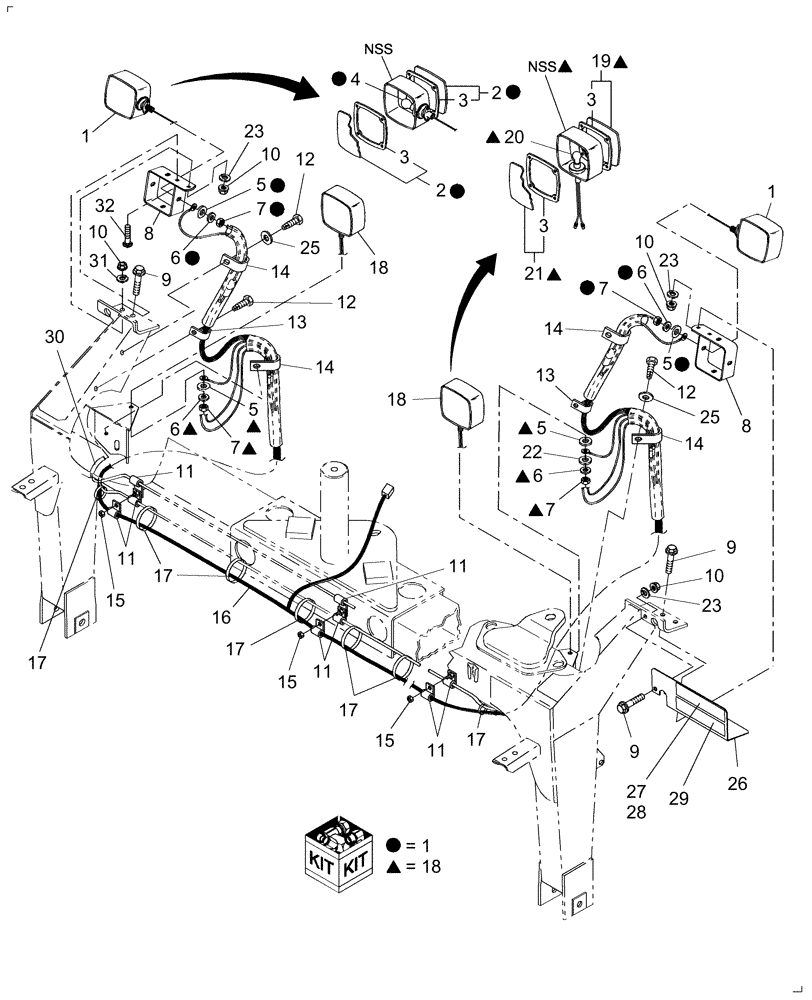

Запчасти Case IH DC132 (06.01[01]) - AMBER AND RED TAIL LIGHTS, SQUARE (06) - ELECTRICAL

1

608852

WARNING LIGHT

Amber, Includes: Ref. 2 - 7 & Housing

2шт.

2

F0NN15N581BA

LENS

Lens, Amber

4шт.

3

853709

GASKET,1.65mm Thk

8шт.

4

529068

BULB,#1156, 12V, 21W

2шт.

5

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

7

280963

NUT,Nut, 1/2-20 GR 5 ZND

4шт.

8

86631193

BRACKET

Light

2шт.

9

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3шт.

10

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

3шт.

11

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

12

677808

SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"

HWH, 1/4"-20 x 5/8"

6шт.

13

237910

WIRE CLAMP,7.9mm, Coat, 7.1mm Bolt Hole, P Type

2шт.

14

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

4шт.

15

86521609

FLANGE NUT,Flg, 3/8"-16

4шт.

16

86560195

WIRE HARNESS

Lights

1шт.

17

14560287

CABLE TIE,207.00mm L

COLLAR (3/32" x 11-1/2" L)

10шт.

18

86514198

TAIL LAMP

Kit, Red

2шт.

19

86537132

KIT

Lens, Black

2шт.

20

86537133

BULB,C6, #1157, 12.8V

2шт.

21

853711

LENS

Red

2шт.

22

86515458

WASHER,13mm ID x 22.22mm OD x 1.62mm Thk

M12.7

4шт.

23

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

24

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

2шт.

25

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

4шт.

26

86567387

ANGLE

Includes: Ref. 27, 28 & 29

1шт.

27

86547781

REFLECTOR,RED

Tape, Red Retroreflective

1шт.

28

86547782

REFLECTOR,YELLOW

Yellow Retro Reflective

1шт.

29

86547783

REFLECTOR,Tape, Red Orange

Tape, Red-Orange Fluorescent

1шт.

30

86604516

INSULATOR

, Serial Range: Cut-fit

1шт.
