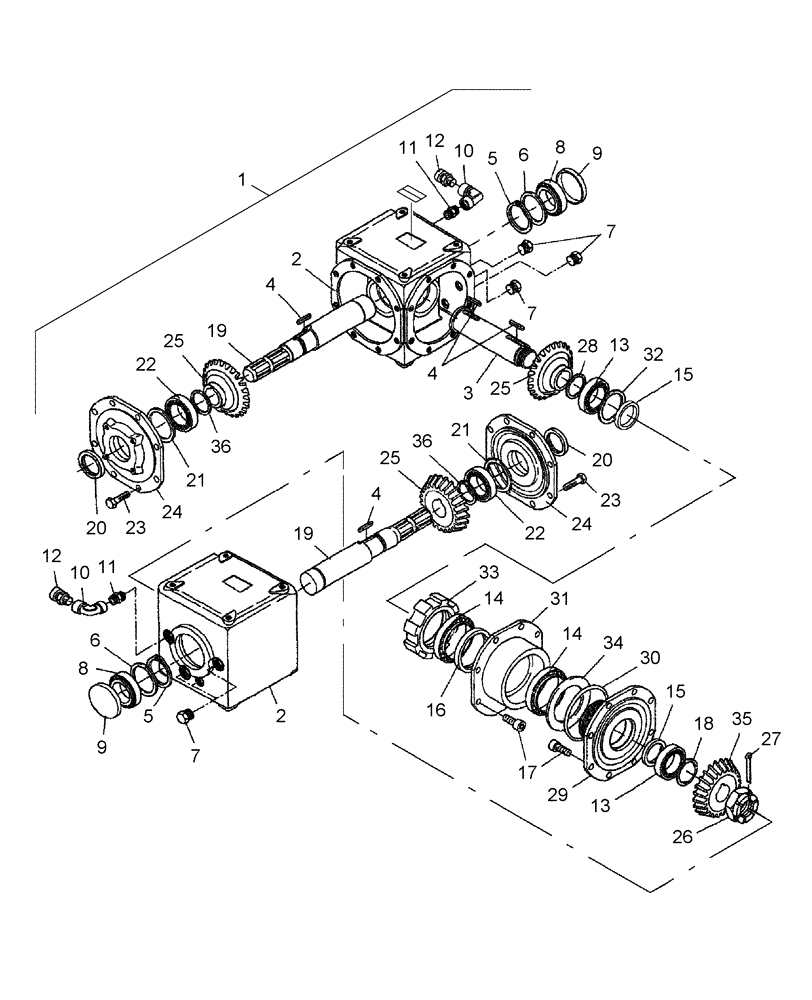

Запчасти Case IH DC132 (03.02) - GEARBOX, SWIVEL (03) - MAIN GEARBOX

1

86592258

GEARBOX

Swivel, Includes: Ref. 2 - 36

1шт.

1

86592258R

REMAN-GEARBOX

Reman Gearbox

1шт.

1

86592258C

CORE-GEARBOX

Return Number

1шт.

2

86559211

HOUSING

2шт.

3

86592260

SHAFT

Vertical

1шт.

4

86547749

KEY

M12 x 18 x 35

4шт.

5

86559213

SNAP RING

Ext, M42.5

2шт.

6

86559214

KIT

Includes: 3 Shims

2шт.

7

86557412

PLUG,3/8" - 19 NPT

6шт.

8

86018152

BEARING ASSY,45mm ID x 85mm OD x 20.75mm W

2шт.

9

86539183

CAP

M72 x 10

2шт.

10

86559215

ELBOW

90°, 3/8" Gas

2шт.

11

86559216

HYD CONNECTOR

3/8", Gas

2шт.

12

86539157

BREATHER,3/8" Gas

2шт.

13

86557433

TAPERED BEARING,40mm ID x 80mm OD x 24.75mm W

2шт.

14

86551264

TAPERED BEARING

2шт.

15

86547750

OIL SEAL

Oil

2шт.

16

86547751

OIL SEAL

Oil

1шт.

17

86559251

HEX SOC SCREW,M10 x 1.5 x 22mm, Cl 12.9, Full Thd

16шт.

18

86539215

KIT

Includes: 3 Shims

1шт.

19

86559222

SHAFT

Upper

2шт.

20

86539177

SEAL

2шт.

21

86539210

KIT

Includes: 3 Shims

2шт.

22

86557434

TAPERED BEARING,35mm ID x 72mm OD x 24.25mm W

2шт.

23

86539175

BOLT,Hex, M10 x 22mm, Cl 8.8

Cap, HH, CL 8.8, M10 x 1.5 x 22

16шт.

24

86539179

COVER

2шт.

25

86559218

GEAR

3шт.

26

86547748

NUT

M40 x 1.5

1шт.

27

NS

NOT SERVICED

Pin, Cotter, M4 x 63

1шт.

28

86559219

SHIM

1шт.

29

86592261

HUB

Inner Neck

1шт.

30

86547747

O-RING

M133.9 ID x 2.62 Thk

1шт.

31

86592262

HOUSING

Outer Neck

1шт.

32

86539214

SHIM

Includes: 3 Shims

1шт.

33

86559220

LOCK NUT,M95 x 2, Bearing

1шт.

34

86559221

WASHER

Protective

1шт.

35

86592259

GEAR

1шт.

36

86539211

KIT

Includes: 3 Shims

2шт.
