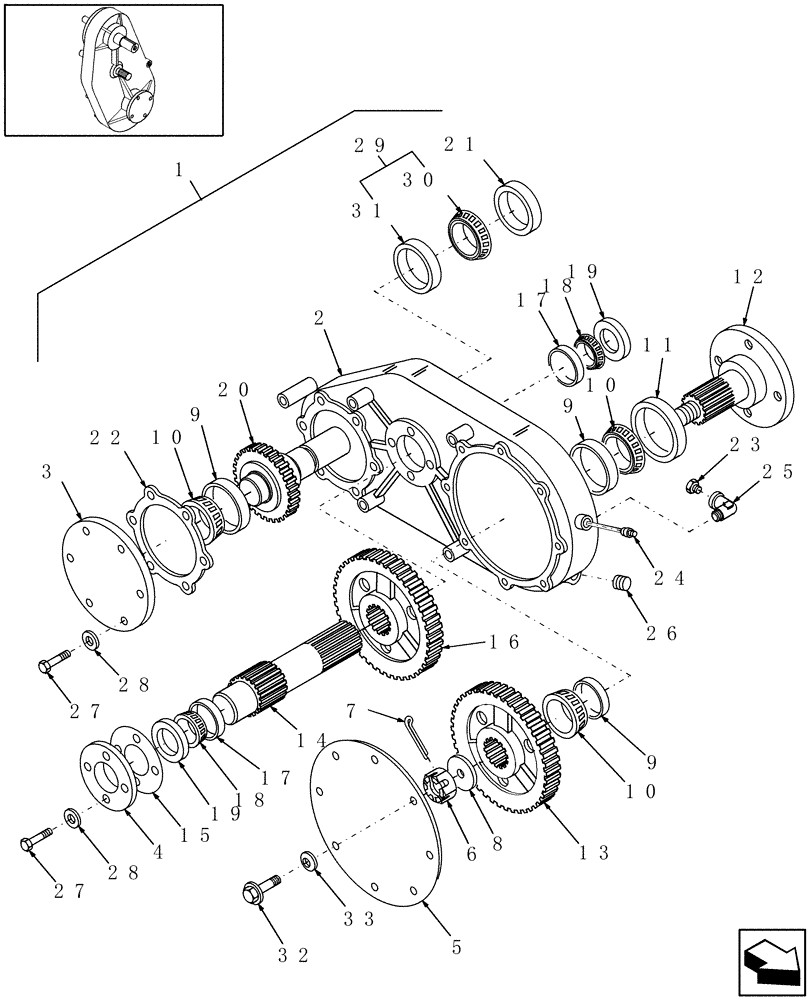

Запчасти Case IH DC132 (03.01) - GEARBOX COMPONENTS - CONDITIONER DRIVE (03) - MAIN GEARBOX

1

87567902

GEARBOX

1шт.

1

87567902R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

1

87567902C

CORE-GEARBOX

Return Number, GEARBOX

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

86623940

CAP

1шт.

4

247491

COVER

Cap

1шт.

5

86632444

COVER

1шт.

6

116311

SLOTTED NUT

Slotted, G2, 3/4"-16

1шт.

7

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

1шт.

8

56867

WASHER

Heat-Treated

1шт.

9

175508

BEARING CUP,59.16mm OD x 11.94mm W

3шт.

10

175507

BEARING CONE,35 mm ID x 16.764 mm

3шт.

11

694956

SEAL

1шт.

12

9847669

SHAFT

1шт.

13

87051773

GEAR,48T External, 23T Spline

48 Tooth

1шт.

14

86524339

SHAFT

1шт.

15

136804

SHIM,.003" Thk

1шт.

15

136803

SHIM,.005" Thk

1шт.

15

136802

SHIM,.0075" Thk

1шт.

15

86617096

SHIM

0.018"

1шт.

16

87051765

GEAR,48T External, 23T Spline

48 Tooth

1шт.

17

36723

BEARING CUP,59.16mm OD x 11.81mm W

2шт.

18

36726

BEARING CONE,31.75mm ID x 16.76mm W

2шт.

19

701519

OIL SEAL

2шт.

20

87051771

GEAR

26T

1шт.

21

66807

SEAL,38.1mm ID x 57.26mm OD x 7.92mm Thk

1шт.

22

688989

SHIM,.003" Thk

1шт.

22

688990

SHIM,.005" Thk

1шт.

22

688991

SHIM,.007" Thk

1шт.

22

86608804

SHIM

0.018"

1шт.

23

572820

BREATHER

1шт.

24

236622

PLUG,3/8" - 18 NPT

3/8"

1шт.

25

86511898

ELBOW

90°, Street, Brass

1шт.

26

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

27

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

10шт.

28

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

29

121506

ROLLER BEARING

Includes Ref. 30 & 31

1шт.

30

1996

BEARING CONE,1.5005" ID x 0.72"

Tapered, Inner Rollers, 1-1/2" ID

1шт.

31

1995

BEARING CUP,65.11mm OD x 13.97mm W

1шт.

32

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

33

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.
