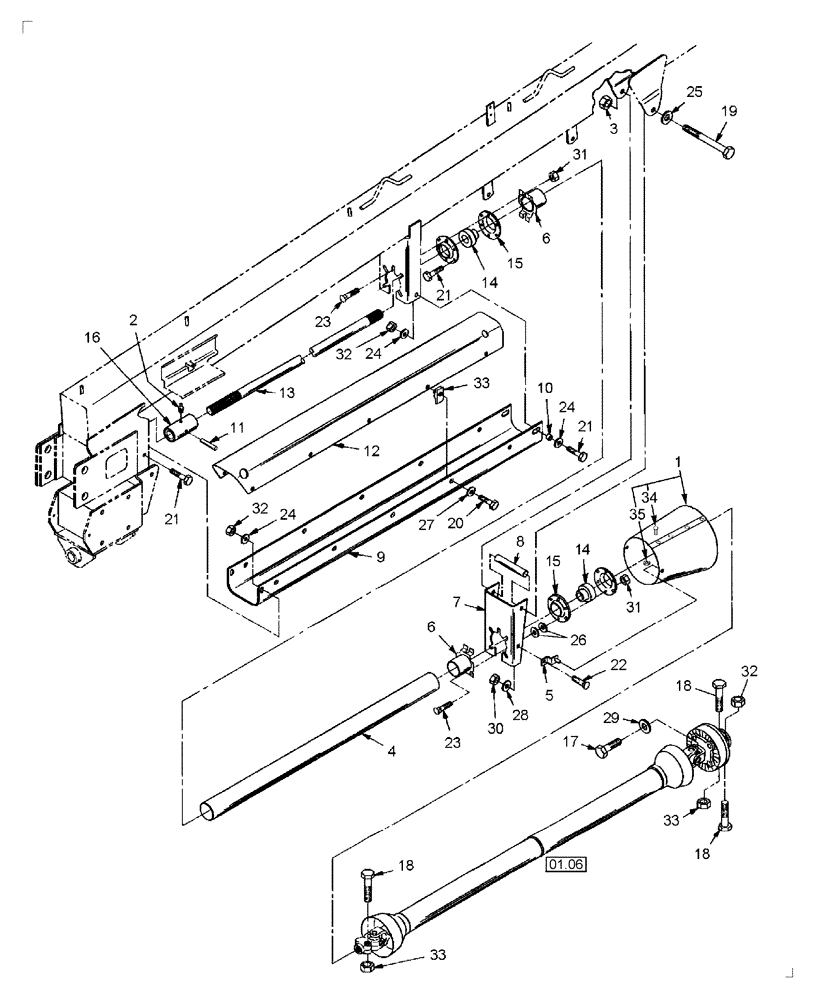

Запчасти Case IH DC132 (01.03) - SWIVEL TONGUE DRIVE SHAFT (01) - PTO DRIVE SHAFT

1

86532561

SHIELD

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

1шт.

3

86521611

FLANGE NUT,Flg, 5/8"-11

1шт.

4

86579262

SHIELD

1шт.

5

86629976

BRACKET

2шт.

6

86599724

BRACKET

Includes: Foam Tape

2шт.

6

853891

TAPE

Black Vinyl Foam - 3" x 144", Serial Range: (Cut-Fit)

1шт.

7

86629975

CHANNEL

1шт.

8

86541412

SPACER

1шт.

9

86633719

CHANNEL

1шт.

10

86622548

SPACER,13.55mm ID x 19.01mm OD x 10.79mm L

2шт.

11

81824

GROOVED PIN,7.94mm OD x 63.5mm L

1шт.

12

86629973

SHIELD

Front

1шт.

13

86626280

SHAFT

1шт.

14

86552016

BALL BEARING,38.1mm ID x 80mm OD x 21.01mm W

2шт.

15

86629969

FLANGE

4шт.

16

9624204

COUPLING

1шт.

17

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

1шт.

18

280620

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

19

280743

BOLT,Hex, 5/8" - 11 x 8", Gr 5

1шт.

20

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

10шт.

21

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

5шт.

22

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

23

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

11шт.

24

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

6шт.

25

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

2шт.

26

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

27

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

28

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

29

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

30

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

31

86521607

FLANGE NUT,Flg, 1/2"-13, G5

12шт.

32

88871

NUT,1/2"-13, GC

7шт.

33

9626645

NUT

Speed, 5/16"-18

10шт.

34

86520136

RIVET,Aluminum, .196” Dia

4шт.

35

88055

WASHER,0.22" ID x 0.5" OD x 0.05" Thk

4шт.
