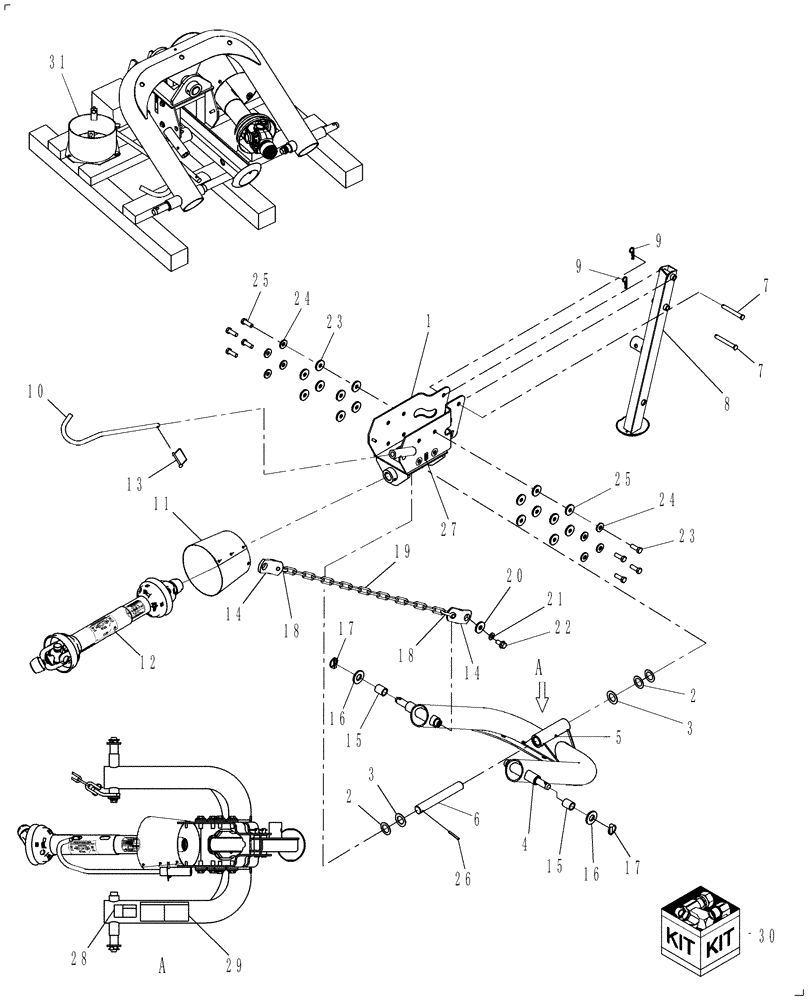

Запчасти Case IH DC102 (18.05) - KIT, HITCH CONVERSION, 2 POINT (18) - ACCESSORIES

1

87482783

TRUNNION

1шт.

2

28691

WASHER,39mm ID x 60mm OD x 0.89mm Thk

1шт.

3

233295

WASHER

2шт.

4

84284137

FRAME

2 Point Hitch

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

1шт.

6

84317792

PIN

1шт.

7

29851

PIN,15.87mm OD x 128.8mm L

2шт.

8

87484149

STAND

1шт.

9

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

2шт.

10

86629924

SUPPORT

1шт.

11

86549399

SHIELD

1шт.

12

0C

ORDER COMPONENTS

Primary PTO Drive Shaft Assy, See Fig. 01.04 (02)

1шт.

13

647695

PIN,7.94mm OD

1шт.

14

86573217

CONNECTING LINK

2шт.

15

81846686

BUSHING,28.7mm ID x 36.7mm OD x 44.7mm L

2шт.

16

790435

WASHER

2шт.

17

132757

LINCH PIN,11.11mm OD x 44.45mm L

2шт.

18

573120

SHACKLE

2шт.

19

9826529

CHAIN,799mm L

1шт.

20

84317394

WASHER

1шт.

21

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

22

87301495

BOLT

1шт.

23

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

16шт.

24

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

8шт.

25

385922

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8

8шт.

26

87948

LOCK PIN,7.94mm OD x 63.5mm L, Slotted

1шт.

27

165109

DECAL

Lube Fitting Sign

1шт.

28

87041061

WARNING DECAL

Tractor, PTO and Component Shielding Must be in Place when PTO engaged, English

1шт.

28

87042014

DECAL

Tractor, PTO and Component Shielding Must be in Place when PTO engaged, Spanish

1шт.

28

87042013

DECAL

Tractor, PTO and Component Shielding Must be in Place when PTO engaged, French

1шт.

29

86555718

DECAL

Attention: Operate with Check Chains Slack, English

1шт.

29

86559766

DECAL

Attention: Operate with Check Chains Slack, Spanish

1шт.

29

86559765

DECAL

Attention: Operate with Check Chains Slack, French

1шт.

30

84268163

CONVERSION KIT

2 Point Hitch, ( Converts a Drawbar Hitch to a 2 Point Hitch )

1шт.

Includes: 1 Thru 31

1шт.

31

84230265

SHIELD

1шт.
