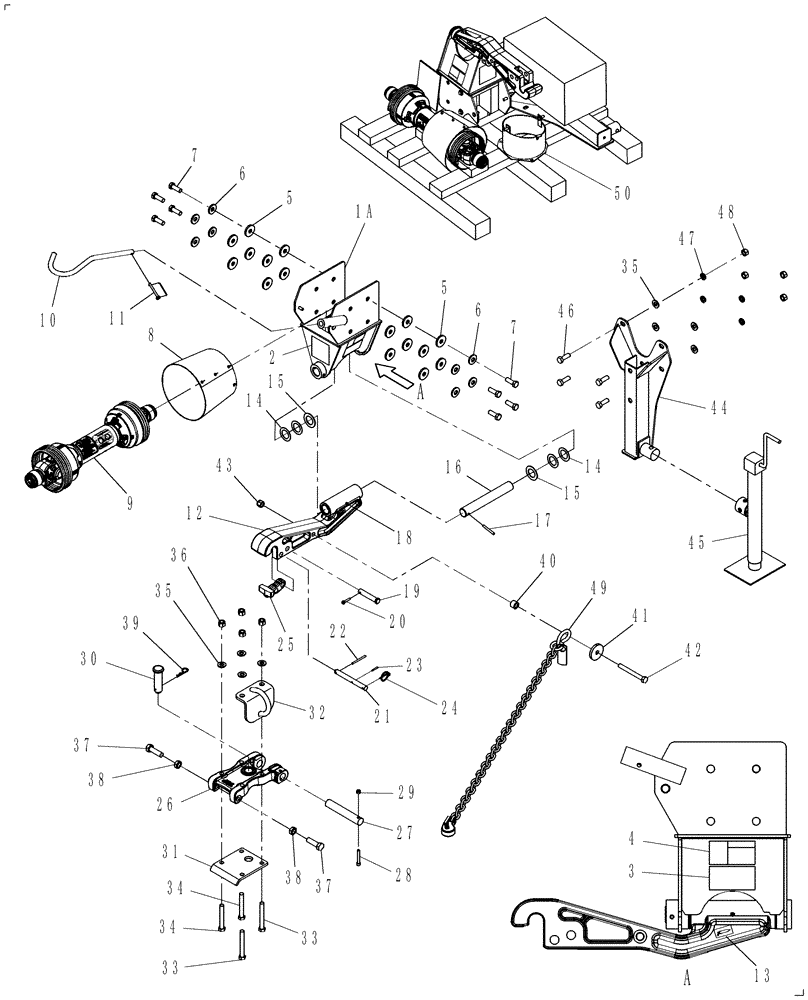

Запчасти Case IH DC102 (18.04) - KIT, DRAWBAR HITCH CONVERSION (18) - ACCESSORIES

1

84268166

CONVERSION KIT

Drawbar Hitch, Includes All Items on This Figure

1шт.

Converts a 2 PT Hitch to a Drawbar Hitch

1шт.

1a

84284133

DRAWBAR SUPPORT

1шт.

2

84277447

DECAL

Attention, Drawbar Dim

1шт.

3

84268167

WARNING DECAL

Use Safety Latch to Lock Hitch in Place before Operating.

1шт.

3

84268169

WARNING DECAL

Spanish

1шт.

3

84268170

WARNING DECAL

French

1шт.

4

87041061

WARNING DECAL

Tractor, PTO and Component Shielding must be in place When PTO is engaged

1шт.

4

87042014

DECAL

Spanish

1шт.

4

87042013

DECAL

French

1шт.

5

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

16шт.

6

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

8шт.

7

385922

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8

8шт.

8

86549399

SHIELD

1шт.

9

0C

ORDER COMPONENTS

Drive Shaft Assy, Order Components Fig. 01.04 (01)

1шт.

10

87029373

SUPPORT ASSY.

1шт.

11

647695

PIN,7.94mm OD

1шт.

12

84247174

HITCH

Includes Bushing 137913, Not Illustrated

1шт.

13

165109

DECAL

1шт.

14

28691

WASHER,39mm ID x 60mm OD x 0.89mm Thk

1шт.

15

233295

WASHER

2шт.

16

84317792

PIN

1шт.

17

87948

LOCK PIN,7.94mm OD x 63.5mm L, Slotted

1шт.

18

87414

LUBE NIPPLE,1/4" - 28

1шт.

19

86510381

PIN

1шт.

20

87402

COTTER PIN,1/4" OD x 1-1/4" OAL

1шт.

21

84268172

PIN

1шт.

22

87955

LOCK PIN,6.35mm OD x 76.2mm L, Slotted

1шт.

23

80777

GROOVED PIN,3/16" x 1 1/4", Type A

1шт.

24

338968A1

PIN,4.76mm OD

1шт.

25

86603572

PAWL

1шт.

26

84246739

SUPPORT

Includes Sleeve Ref. 26a, not illustrated

1шт.

26

84372144

SUPPORT

Includes Sleeve Ref. 26a, Not Illustrated, Start Year: 01-NOV-10

1шт.

26a

84247149

BUSHING

1шт.

27

86624603

PIN

1шт.

28

86625652

HEX SOC SCREW,3/8" - 16 x 2.50"

1шт.

29

88902

NUT,3/8"-16

1шт.

30

84264397

HEADED PIN,31.75mm OD x 116.6mm L

1шт.

30

84268161

HEADED PIN

Used In Place of 84264397, If Tractor has a Drawbar With 29mm Dia Pin Hole

1шт.

Not Included in Kit 84268166

1шт.

31

84247147

SUPPORT

1шт.

31

84374150

SUPPORT

, Start Year: 01-NOV-10

1шт.

32

86632112

SUPPORT

1шт.

32

84374441

HITCH

, Start Year: 01-NOV-10

1шт.

33

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

2шт.

34

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

2шт.

35

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

8шт.

36

19670

NUT,5/8"-11, GB

4шт.

37

281074

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

2шт.

38

84972

JAM NUT,Jam, 3/4"-10, G2

2шт.

39

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

1шт.

40

86607695

SPACER,17.48mm ID x 28.6mm OD x 20.6mm L

1шт.

41

636422

WASHER,16.66mm ID x 69.85mm OD

1шт.

42

280232

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

1шт.

43

85700693

NUT,5/8" - 11, Gr C

1шт.

44

84258354

SUPPORT

1шт.

45

86617866

JACK

1шт.

46

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

4шт.

47

86729275

LOCK WASHER,5/8 0.634 CST ZND

4шт.

48

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

49

797900

CHAIN

1шт.

50

84230265

SHIELD

1шт.
