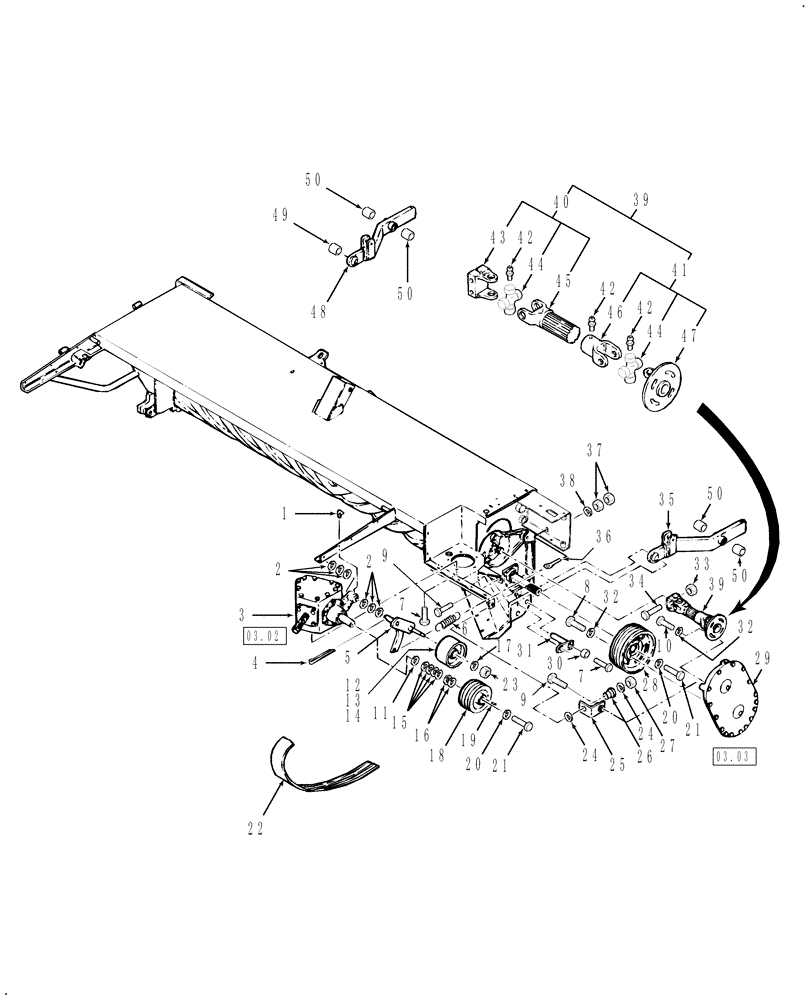

Запчасти Case IH DC102 (15.03) - HEADER, DRIVE (15) - CROP CONDITIONING

1

87414

LUBE NIPPLE,1/4" - 28

1шт.

2

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

1шт.

3

87545091

FINAL DRIVE

FINAL REDUCTION GEARBOX Bevel

1шт.

3

87545091R

REMAN-GEARBOX

Reman Gearbox

1шт.

3

87545091C

CORE-GEARBOX

Return Number

1шт.

4

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

5

86634084

PIVOTING ARM

1шт.

6

87054556

TENSION SPRING

1шт.

7

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

7шт.

8

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

4шт.

9

86521622

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

2шт.

10

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

11

86510186

SPACER

1шт.

12

86632727

IDLER

1шт.

13

217994

SPACER

3/4" ID x 1"x 1-1/4" L

1шт.

14

9807906

BALL BEARING,0.7504" ID x 1.7805" OD x 0.61"

2шт.

15

28691

WASHER,39mm ID x 60mm OD x 0.89mm Thk

1шт.

16

28581

WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk

1шт.

17

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

1шт.

18

86632264

PULLEY

7" OD

1шт.

19

87495

KEY,0.31" x 2.50" L

5/16" Sq x 2-1/2"

1шт.

20

86516694

WASHER

2шт.

21

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

2шт.

22

86627791

V-BELT,0.66" W x 76.80" L, 4 Ribs

1шт.

23

280375

NUT,3/4"-10, GC

1шт.

24

234567

WASHER

2шт.

25

86634083

BRACKET

1шт.

26

173893

MOUNTING PARTS

1шт.

27

85700693

NUT,5/8" - 11, Gr C

1шт.

28

86634082

SHEAVE

1шт.

29

86602361

GEARBOX

Conditioner

1шт.

29

86602361R

REMAN-TRANSMISSION

Reman Gearbox

1шт.

29

86602361C

CORE-TRANSMISSION

Return Number

1шт.

30

167381

SPACER

2шт.

31

86506026

PIN,28.57mm OD x 140mm L

2шт.

32

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

12шт.

33

88902

NUT,3/8"-16

2шт.

34

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

35

86607955

LIFT ARM

LH, Includes: Ref. 50

1шт.

36

36835

EYEBOLT,G2, 3/8"-16 x 6-1/2"

G2, 3/8"-16 x 6-1/2"

1шт.

37

9628503

NUT,3/8"-16, G5

2шт.

38

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

39

86511008

DRIVE SHAFT

1шт.

40

86520870

SHAFT

Output

1шт.

41

86520871

SHAFT

Input

1шт.

42

87414

LUBE NIPPLE,1/4" - 28

4шт.

43

86520865

YOKE

1шт.

44

136908

SPIDER

Kit

2шт.

45

86520867

YOKE

& Shaft

1шт.

46

86520868

YOKE

Telescoping

1шт.

47

87024320

YOKE

& Plate

1шт.

48

86607956

LIFT ARM

RH, Includes: Ref. 50

1шт.

49

86603645

SPACER

1шт.

50

9611935

BUSHING,31.83mm ID x 39.115mm OD x 26.92mm L

4шт.
