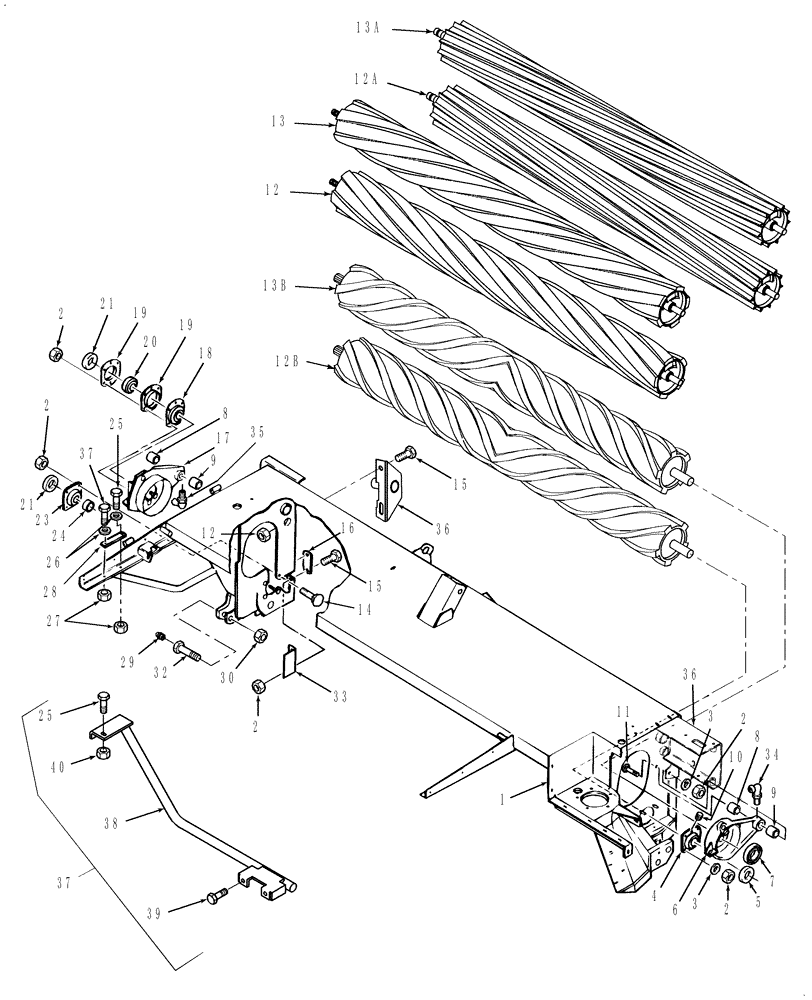

Запчасти Case IH DC102 (15.01) - HEADER, CONDITIONING ROLLS (15) - CROP CONDITIONING

1

84172023

FRAME

1шт.

2

86521607

FLANGE NUT,Flg, 1/2"-13, G5

18шт.

3

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

2шт.

4

86603185

BEARING ASSY

W/Bearing

1шт.

4

80049633

BALL BEARING,44.45mm ID x 85mm OD x 19mm W

1шт.

5

45631

COLLAR

1шт.

6

87042108

BEARING ASSY

Includes: Ref. 7 & 8

1шт.

7

694444

BALL BEARING,34.95mm Hex x 80mm OD x 36.51mm W

1шт.

8

86540342

BUSHING,30.15mm ID x 36.41mm OD x 19.05mm L

2шт.

9

9849929

SPACER

2шт.

10

788938

PLUG

1/4"-28

1шт.

11

280818

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

2шт.

12

86610944

ROLLER ASSY.

Spiral Rubber, Lower

1шт.

12a

86610320

ROLL

Lower, Spiral Steel

1шт.

When Converting From Spiral Steel To Chevron Steel Rolls, Both Upper and Lower Rolls, Must Be Changed to Chevron Style.

1шт.

12b

86519717

ROLLER

Chevron Rubber, Lower

1шт.

MY2010

1шт.

13

86610947

ROLLER ASSY.

Spiral Rubber, Upper

1шт.

13a

86610318

ROLL

Upper, Spiral Steel

1шт.

When Converting From Spiral Steel To Chevron Steel Rolls, Both Upper and Lower Rolls, Must Be Changed to Chevron Style.

1шт.

13b

86520150

ROLLER

Chevron Rubber, Upper

1шт.

MY2010

1шт.

14

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

1шт.

15

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

16

87029857

LOCKING TAB

Upper Brace

1шт.

17

87055307

ARM

1шт.

18

86633047

SHROUD

1шт.

19

84523802

2шт.

20

86575514

BALL BEARING,34.92mm ID x 80mm OD x 24.3mm W

1шт.

21

45393

COLLAR

2шт.

22

86515286

CHANNEL

(Welding Required)

1шт.

23

84527700

BEARING HOUSING

W/Housing, Requires Ref. 24

1шт.

24

86573045

SPACER,34.6mm ID x 75.6mm OD x 33.8mm L

1шт.

25

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

26

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

27

9823743

FLANGE NUT,Flg, 5/16"-18

4шт.

28

849495

RUBBER PAD

2шт.

29

87414

LUBE NIPPLE,1/4" - 28

4шт.

30

86557260

SPECIAL NUT

Lock, 3/4"-10

4шт.

31

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.

32

86571960

BOLT

Cutterbar Mounting

4шт.

32

87721979

BOLT

Cutterbar Mounting, Start Year: 01-JUL-09, Start Serial: Y9N083777

4шт.

33

86631049

SHIELD

1шт.

34

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

35

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1шт.

36

87026978

PIN

1шт.

37

86636911

KIT

Viney Crop

1шт.

38

86519350

GUIDE

1шт.

39

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

40

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.
