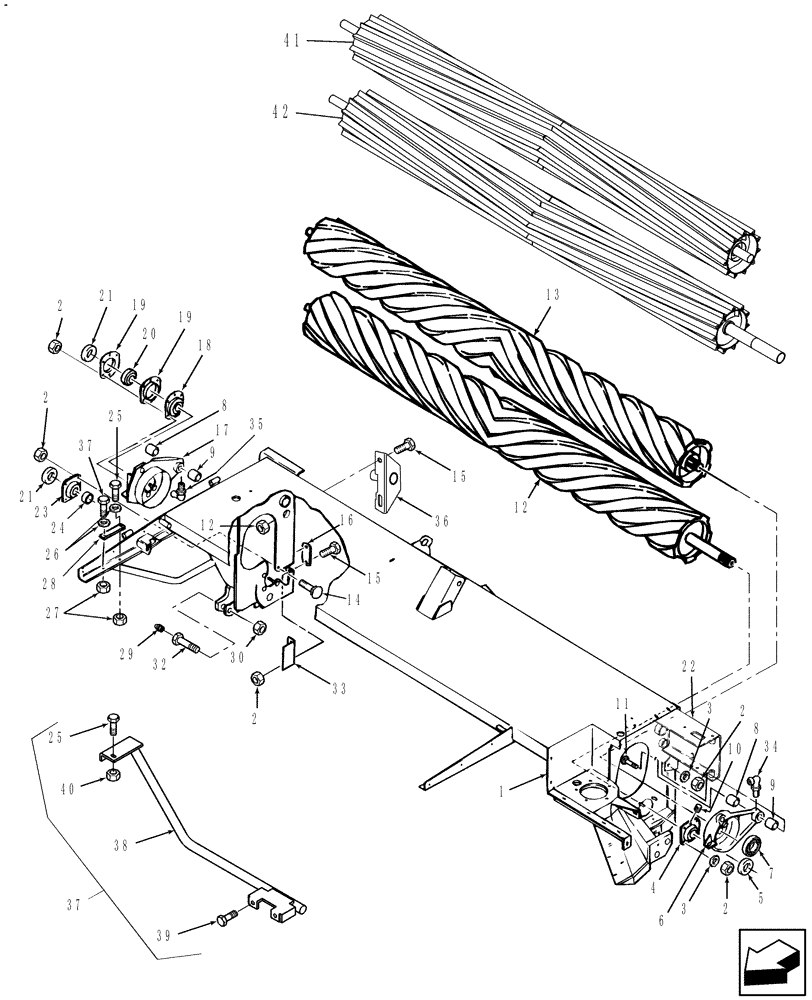

Запчасти Case IH DC102 (15.01[02]) - HEADER, CHEVRON CONDITIONING ROLLS, MY2010 (15) - CROP CONDITIONING

1

84172023

FRAME

1шт.

2

86521607

FLANGE NUT,Flg, 1/2"-13, G5

16шт.

3

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

2шт.

4

86603185

BEARING ASSY

W/Bearing

1шт.

4

80049633

BALL BEARING,44.45mm ID x 85mm OD x 19mm W

1шт.

5

45631

COLLAR

1шт.

6

87042108

BEARING ASSY

Includes: Ref. 7 & 8

1шт.

7

694444

BALL BEARING,34.95mm Hex x 80mm OD x 36.51mm W

1шт.

8

86540342

BUSHING,30.15mm ID x 36.41mm OD x 19.05mm L

2шт.

9

9849929

SPACER

2шт.

10

788938

PLUG

1/4"-28

1шт.

11

280818

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

2шт.

12

86519717

ROLLER

Lower, Chevron Rubber

1шт.

12

87489874

ROLLER

Lower, Replaces 86519717

1шт.

12

84398482

ROLL

Lower, Replaces 87489874

1шт.

12

84398482R

REMAN-ROLLER

Reman Roller Lower, Replaces 87489874

1шт.

12

84398482C

CORE-ROLLER

Return Number

1шт.

13

86520150

ROLLER

Upper, Chevron Rubber

1шт.

13

87490269

ROLLER

Upper, Chevron Rubber

1шт.

Replaces 86520150

1шт.

13

84398454

ROLL

Upper, Chevron Rubber

1шт.

Replaces 87490269

1шт.

13

84398454R

REMAN-ROLLER

Reman Upper, Chevron Rubber

1шт.

13

84398454C

CORE-ROLLER

Core Return Number

1шт.

14

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

1шт.

15

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

16

87029857

LOCKING TAB

Upper Brace

1шт.

17

87055307

ARM

1шт.

18

86633047

SHROUD

1шт.

19

86629969

FLANGE

2шт.

20

86575514

BALL BEARING,34.92mm ID x 80mm OD x 24.3mm W

1шт.

21

45393

COLLAR

2шт.

22

86515286

CHANNEL

(Welding Required)

1шт.

23

86573043

BEARING ASSY

W/Housing, Requires Ref. 24

1шт.

24

86573045

SPACER,34.6mm ID x 75.6mm OD x 33.8mm L

1шт.

25

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

26

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

27

9823743

FLANGE NUT,Flg, 5/16"-18

4шт.

28

849495

RUBBER PAD

2шт.

29

87414

LUBE NIPPLE,1/4" - 28

4шт.

30

86557260

SPECIAL NUT

Lock, 3/4"-10

4шт.

31

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.

32

86571960

BOLT

4шт.

32

87721979

BOLT

Cutterbar Mounting, Start Year: 01-JUL-09, Start Serial: Y9N083777

4шт.

33

86631049

SHIELD

1шт.

34

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

35

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1шт.

36

87026978

PIN

1шт.

37

86603195

KIT

Viney Crop Guide

1шт.

38

86519350

GUIDE

1шт.

39

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

40

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

41

84294045

ROLL

Steel, Upper Chevron, Start Year: 01-APR-10

1шт.

42

84294042

ROLL

Steel, Lower Chevron, Start Year: 01-APR-10

1шт.
