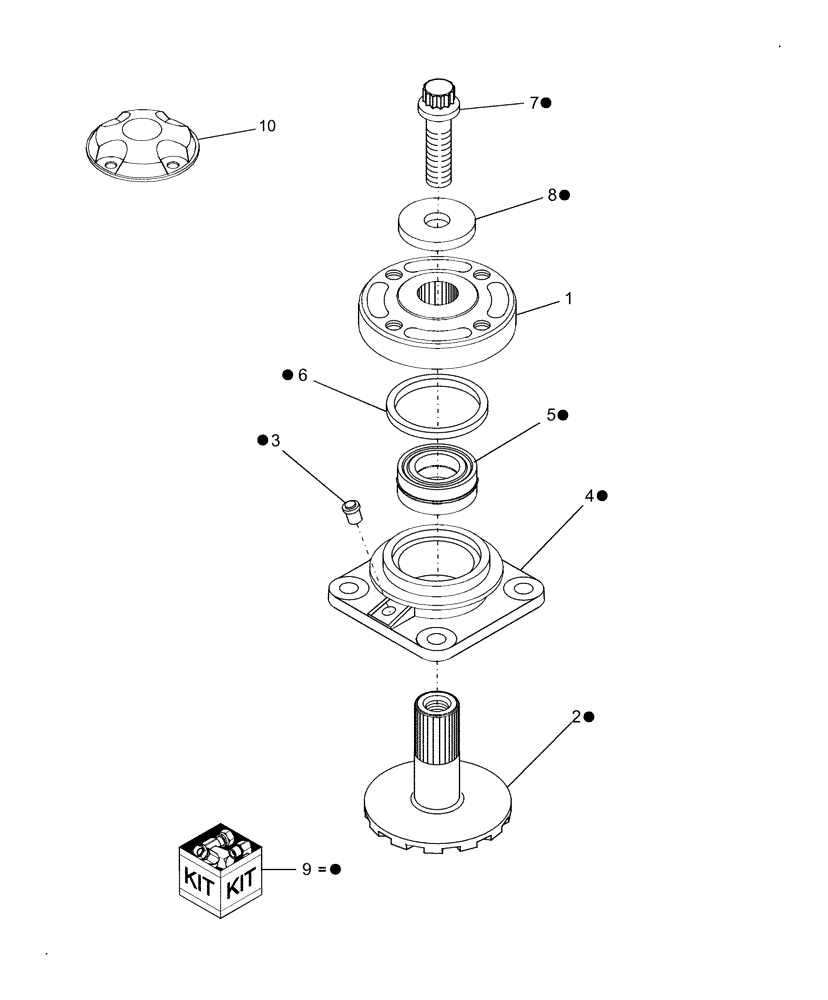

Запчасти Case IH DC102 (14.03) - TOP CAP, STANDARD HUB (14) - CROP CUTTING

1

87560472

HUB ASSY.

Standard

1шт.

2

NSS

NOT SOLD SEPARAT

Gear, 25T

1шт.

3

572820

BREATHER

1шт.

4

NSS

NOT SOLD SEPARAT

Housing

1шт.

5

NSS

NOT SOLD SEPARAT

Bearing

1шт.

6

9849587

OIL SEAL,50.72mm ID x 63.73mm OD x 6.73mm Thk

1шт.

7

87584169

BOLT,5/8" - 11 x 1-1/2"

Cap, 12 Pt, Flg Hd, 5/8"-11 x 1 1/2", Locking Patch

1шт.

8

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

1шт.

9

87753841

CAP

Kit, Repair, Standard Hub

1шт.

10

87014784

CAP

1шт.

Can Be Used Only W/Non-Shear Hub Top Caps

1шт.

10

87581143

CAP

1шт.

Can Be Used W/Either Shear Hub Or Non-Shear Hub Top Caps

1шт.
