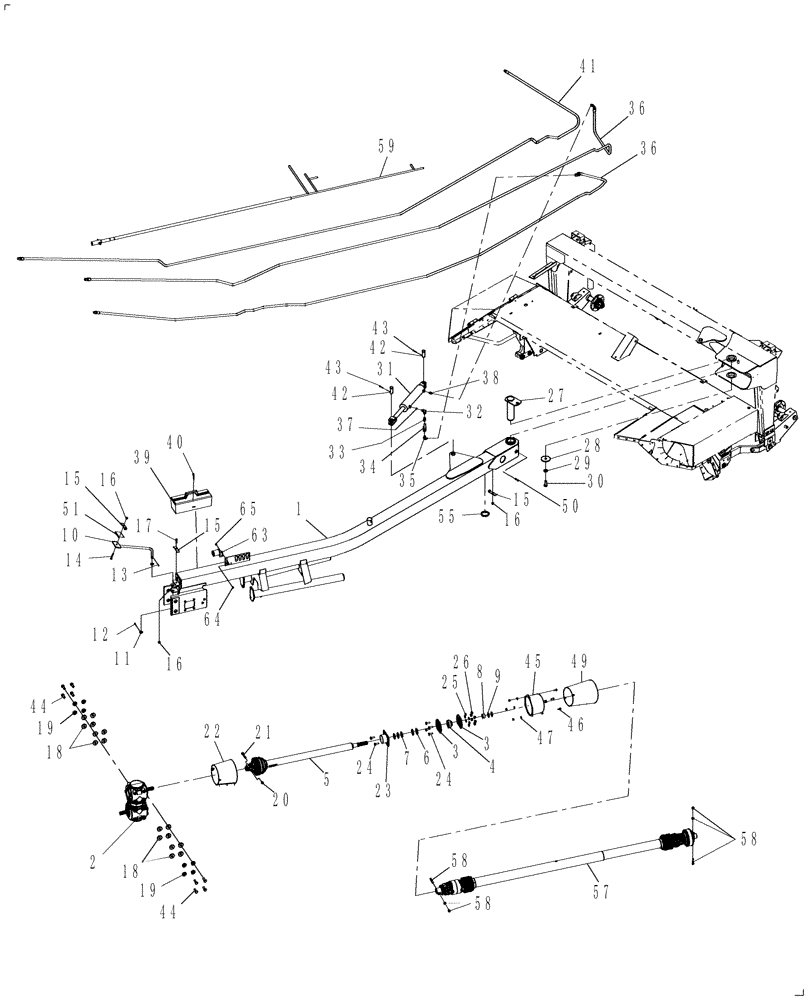

Запчасти Case IH DC102 (12.04) - SWIVEL TONGUE (12) - MAIN FRAME

1

84284126

TONGUE

Swivel

1шт.

2

87610149

GEARBOX

Swivel, 540, Components are on Fig. 03.04

1шт.

3

86629969

FLANGE

2шт.

4

86552016

BALL BEARING,38.1mm ID x 80mm OD x 21.01mm W

1шт.

5

84540290

PTO

Components on Fig. 01.06(03)

1шт.

6

233295

WASHER

5шт.

7

28691

WASHER,39mm ID x 60mm OD x 0.89mm Thk

6шт.

8

84243605

HUB

1шт.

9

58630

WASHER,.0299" Thk

3шт.

10

87029372

SUPPORT ASSY.

1шт.

11

9706679

WASHER,0.8" ID x 1.25" OD x 0.14" Thk

2шт.

12

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

13

80777

GROOVED PIN,3/16" x 1 1/4", Type A

1шт.

14

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

15

86571694

CLAMP

3шт.

16

86521609

FLANGE NUT,Flg, 3/8"-16

4шт.

17

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

1шт.

18

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

16шт.

19

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

8шт.

20

87025806

LOCK NUT

1/2-13 Flanged

1шт.

21

84246779

BOLT

Flanged, 1/2-13 x 3" GR 8

1шт.

22

86549399

SHIELD

1шт.

23

84230207

SHIELD

1шт.

24

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

6шт.

25

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

6шт.

26

86521607

FLANGE NUT,Flg, 1/2"-13, G5

6шт.

27

86548650

PIN

1шт.

28

86502976

WASHER

1шт.

29

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

1шт.

30

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

1шт.

31

87057806

HYDRAULIC CYLINDER

1шт.

32

80271642

ELBOW

1шт.

33

87041527

HYD CONNECTOR,3/8" - 18 NPT x 3/8" - 18 NPT

1шт.

34

87712321

VALVE

1шт.

35

235131

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

1шт.

36

87491300

HOSE

2шт.

37

701811

ORIFICE

1шт.

38

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

39

5135060

TOOL BOX

1шт.

40

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

1шт.

41

87492604

HOSE

1шт.

42

514112

PIN

2шт.

43

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

44

385922

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8

8шт.

45

84230265

SHIELD

1шт.

46

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

5шт.

47

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

49

86532561

SHIELD

1шт.

50

84251

LUBE NIPPLE,30 Degree, 1/8" NPT x 2 5/64" lg

1шт.

51

PL

PROCURE LOCALLY

Black Foam Vinyl Tape

1шт.

52

86539184

ELBOW

2шт.

53

86539157

BREATHER,3/8" Gas

2шт.

57

0C

ORDER COMPONENTS

Drive Shaft for Secondary PTO, See Figure 01.06 (02)

1шт.

58

86625865

KIT

Kit, Contains 3 pins, 2 Nuts and 1 Washer

2шт.

59

87494900

WIRE HARNESS

1шт.

63

9611467

HOLDER

Plug Holder

1шт.

64

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

65

9626558

FLANGE NUT,Flg, 1/4"-20

2шт.
