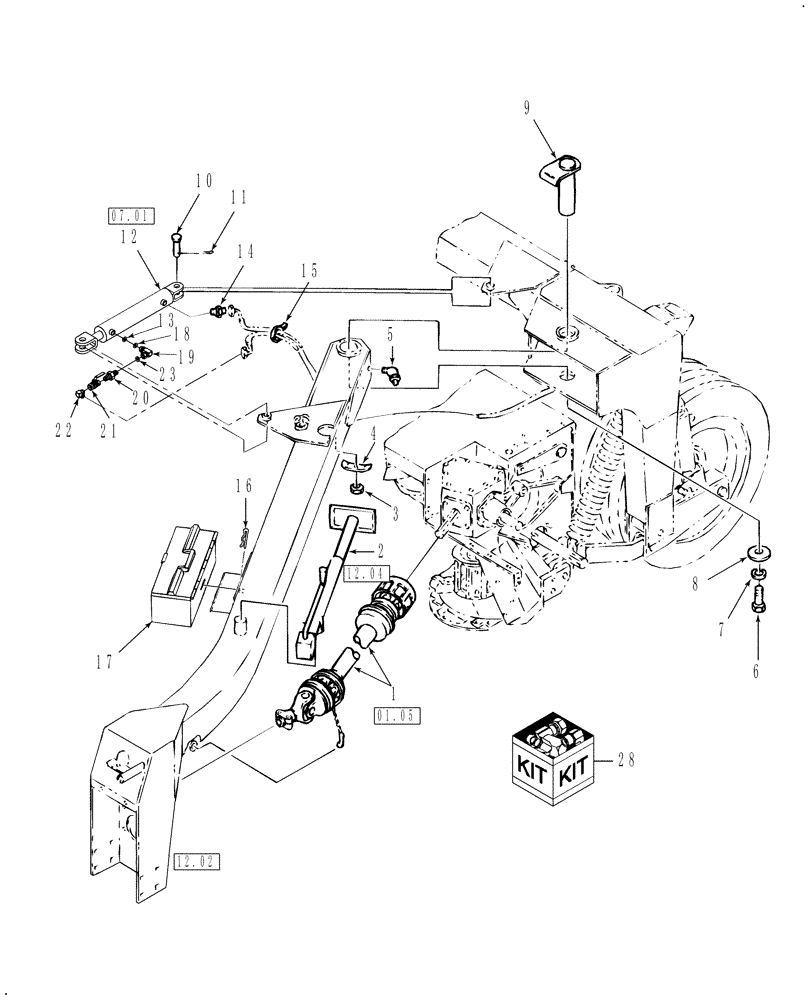

Запчасти Case IH DC102 (12.03) - TONGUE, REAR (12) - MAIN FRAME

1

0C

ORDER COMPONENTS

Secondary

1шт.

2

86617866

JACK

1шт.

3

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

4

86571694

CLAMP

1шт.

5

84251

LUBE NIPPLE,30 Degree, 1/8" NPT x 2 5/64" lg

1шт.

6

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

1шт.

7

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

1шт.

8

86502976

WASHER

.78" ID x 3.75" OD x .25"

1шт.

9

86630513

PIN,69.85mm OD x 260mm L

1шт.

10

514864

PIN

1" x 3-1/8"

1шт.

11

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

12

87018072

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 292.1mm Stroke

Swing, Monarch

1шт.

13

701811

ORIFICE

1шт.

14

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

15

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP 3/32" x 11-1/2" L

1шт.

16

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

Hair

1шт.

17

87386543

TOOL BOX

1шт.

18

701811

ORIFICE

1шт.

19

80271642

ELBOW

9/16"-3/8", 90°

1шт.

20

87041527

HYD CONNECTOR,3/8" - 18 NPT x 3/8" - 18 NPT

1шт.

21

87712321

VALVE

1шт.

22

235131

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

1шт.

23

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
