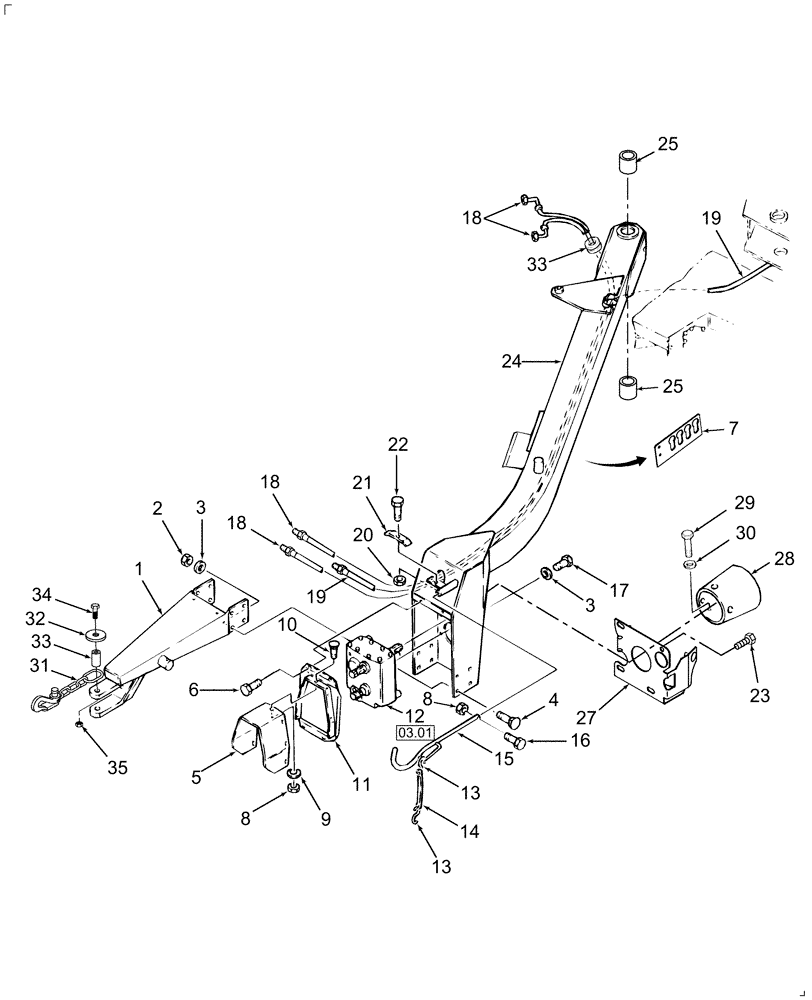

Запчасти Case IH DC102 (12.02) - TONGUE, FRONT (12) - MAIN FRAME

1

86630528

TONGUE

Front

1шт.

2

280374

NUT,Hex, 5/8" - 11, Gr 5

8шт.

3

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Hardened, 5/8"

12шт.

4

280742

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

8шт.

5

86550384

SHIELD

1шт.

6

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

7

86564683

SUPPORT

Hose Storage (Requires Welding)

1шт.

8

9823743

FLANGE NUT,Flg, 5/16"-18

8шт.

9

577826

WASHER

SAE, 5/16"

7шт.

10

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

7шт.

11

87042989

PLATE

1шт.

12

87567914

GEARBOX

1шт.

12

87567914R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

12

87567914C

CORE-GEARBOX

Return No, GEARBOX

1шт.

13

115680

HOOK

2шт.

14

273672

FASTENER

1шт.

15

86627267

SUPPORT

1шт.

16

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

1шт.

17

88062

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

4шт.

18

86557716

FLEXIBLE HOSE

225" L

2шт.

19

86557715

FLEXIBLE HOSE,7112.00 mm x 9.52, SAE 100R1

1шт.

20

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

21

86571694

CLAMP

1шт.

22

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

1шт.

23

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

24

86630531

TONGUE

Includes Ref. 36 and Decals

1шт.

25

86511199

BUSHING,69.88mm ID x 76.35mm OD x 37.3mm L

2шт.

26

291186

PROTECTION STRIP,9.9mm W

1шт.

27

87518743

SUPPORT

Support

1шт.

28

86532561

SHIELD

Includes: Ref. 29 & 30

1шт.

29

86520136

RIVET,Aluminum, .196” Dia

Blind, 3/16" x 9/16"

4шт.

30

88055

WASHER,0.22" ID x 0.5" OD x 0.05" Thk

Copper, #10

4шт.

31

797900

CHAIN

1шт.

32

636422

WASHER,16.66mm ID x 69.85mm OD

1шт.

33

86607695

SPACER,17.48mm ID x 28.6mm OD x 20.6mm L

1шт.

34

88693

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 5

1шт.

35

85700693

NUT,5/8" - 11, Gr C

1шт.
